BMFC-6 | Gamewell-FCI Basic Master Fire Card for FC-72 Fire Alarm Control Panel
- Regular price
- $1,899.00
- Sale price
- $1,899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BMFC-6
Description

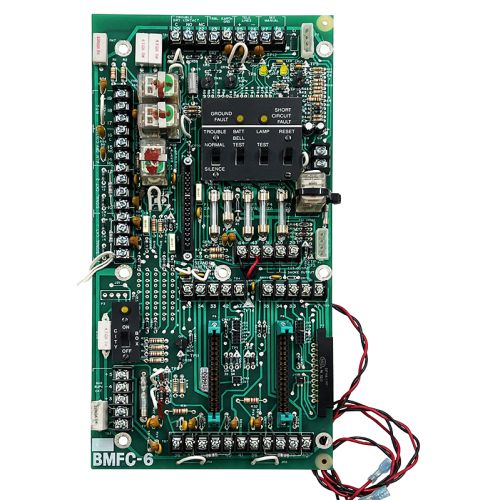

The Gamewell-FCI BMFC-6 is a Basic Master Fire Card that provides the primary signaling and supervisory functions of the FC-72 fire alarm control panel. It serves as the core control card for the system, enabling expansion up to 64 zones with additional compatible modules.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | BMFC-6 |
| Subcategory | Control Cards |
| Type | Basic Master Fire Card |
| System Compatibility | FC-72 Fire Alarm Control Panel |
| Primary Functions | Provides system signaling and supervisory functions |
| Expandability | Supports up to 64 zones with ZMC-6 and detection modules |
| Compatible Modules | ZMC-6, ZDM01, ZDMD01, BCM-6, TCM-6, BMC-6, CCM-6 |
| Output Options | Continuous, coded, and temporal notification signals via expansion cards |
| Coding Capabilities | March time, temporal, and programmable coded outputs with add-on modules |
| Construction | Control card (plug-in module) |
| Application | Central control component for FC-72 systems |
| Weight | 1.68 lbs |
Information About BMFC-6
The BMFC-6 is a core component of Gamewell-FCI’s FC-72 fire alarm control panel system, designed to provide its fundamental signaling and supervisory functions. It forms the foundation of the panel’s operation, with the ability to expand system capacity up to 64 zones using the ZMC-6 Zone Master/Mother Card and detection modules. The BMFC-6 works in conjunction with additional modules such as BCM-6, TCM-6, BMC-6, and CCM-6 to deliver coded, temporal, or continuous outputs for notification appliances. As the central control card, it ensures that the FC-72 system remains flexible, expandable, and compliant with notification signaling requirements.
Key Features:
- Core system control: Provides all fundamental signaling and supervisory functions for the FC-72 fire alarm control panel.
- Zone expandability: Supports system growth up to 64 zones when combined with compatible ZMC-6 and detection modules.
- Flexible coding options: Works with additional modules to deliver continuous, temporal, or coded notification outputs.
- Module compatibility: Fully integrates with ZDM01, ZDMD01, BCM-6, TCM-6, BMC-6, and CCM-6 for customized system configuration.
- Scalable architecture: Enables small to mid-sized installations to expand without replacing the entire panel.
- Reliable operation: Acts as the foundational card for the FC-72, ensuring dependable performance in fire alarm control.
- Compact card design: Lightweight at 1.68 lbs, designed for easy installation into FC-72 chassis.
- System integration: Ensures seamless operation with all FC-72 series modules and accessories.
- Notification flexibility: Provides support for march time, ANSI temporal, and programmable coded evacuation signals.
- Central supervisory functions: Maintains monitoring of system health, wiring, and operational integrity.
The BMFC-6 delivers the reliability and precision required to serve as the central control card of the Gamewell-FCI FC-72 fire alarm control panel.
