Part #: BMXAMI0410 Manufactured by: Schneider Electric
Regular price
$239.00
Sale price
$239.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
Analog input module - isolated high-level inputs - Schneider Electric / Modicon (Modicon X80 series) - 4I/Os [4AI (4 x ana...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: BMXAMI0410
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: BMXAMI0410

Description / Specifications

Description

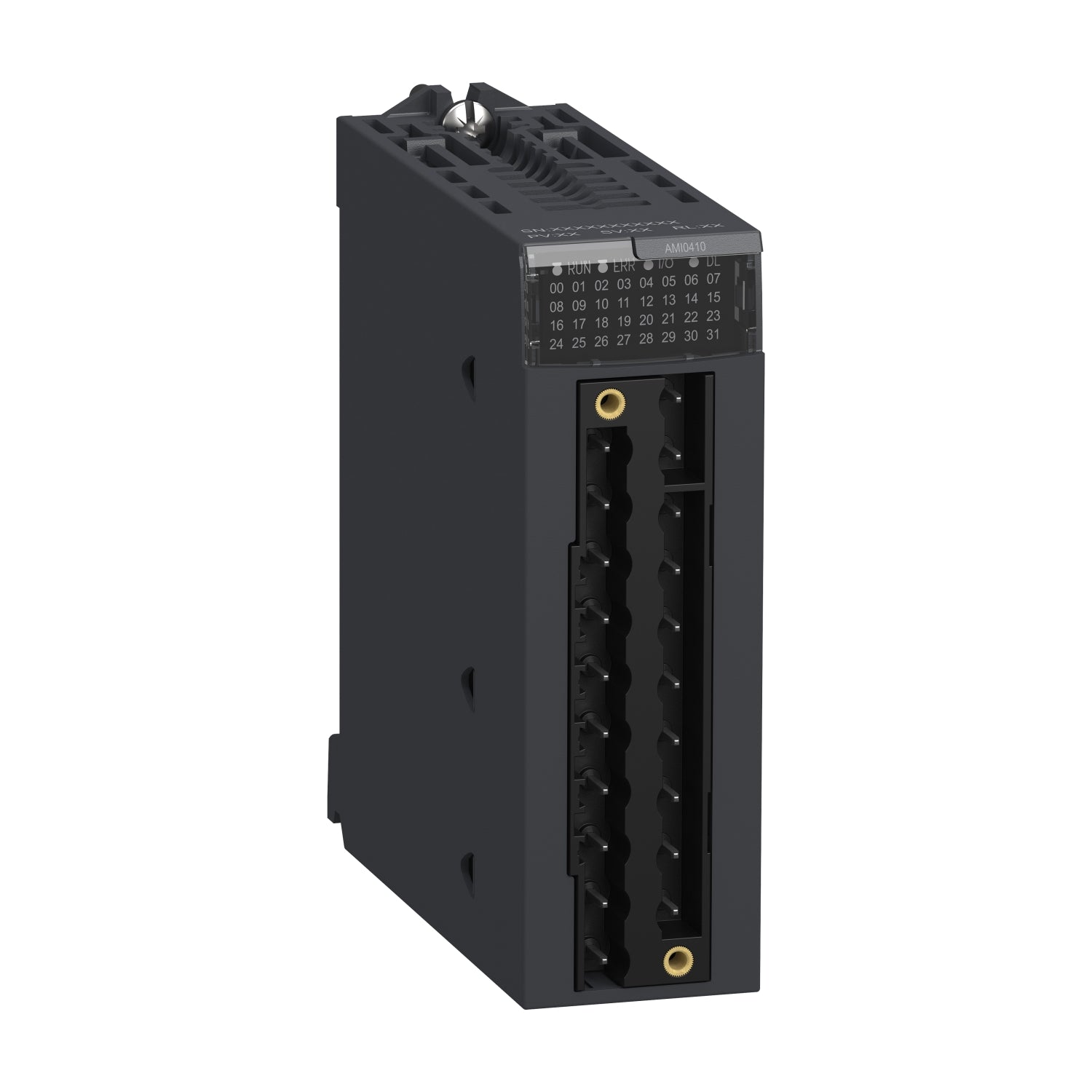

The Schneider Electric BMXAMI0410 is an isolated analog input module belonging to the Modicon X80 range. This module is designed to provide high-speed analog input capability for industrial automation systems. It features four analog input channels and supports multiple input types, including current and voltage.


Technical Specifications


Brand Schneider Electric
Part Number BMXAMI0410
Amperage Rating 0 to 20 mA, 150/45
Number of inputs 4
Resolution 16 bit
Series X80
Temperature Rating (Degrees F) 0 to 60 deg C
Type 20-Way 1-Connector Isolated High Speed, Isolated High Speed
Enclosure IP20




Information About BMXAMI0410

This high level analog input module is part of the Modicon X80 modules. It has 4 isolated analog inputs (16 bits) and is used with sensors or transmitters. This module is connected via 20-way removable terminal block. It performs monitoring, measurement, and process control functions for continuous processes. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Connection
The electrical connection of the BMXAMI0410 module is made through a 20-way connector. Each input channel is isolated, ensuring reliable and accurate signal transmission. The module supports high-level analog inputs, with options for current ranging from 0 to 20 mA and 4 to 20 mA, as well as voltage ranging from ±10 V, ±5 V, 0 to 10 V, 0 to 5 V, and 1 to 5 V.

Features
The module incorporates a 24-bit analog-to-digital converter, offering high-resolution conversion for precise measurement of analog signals. The analog input resolution is 16 bits, allowing for an accurate representation of input values. It also provides internal protective resistors and input impedance specifications to ensure signal integrity and protection against overloads.

To optimize signal quality, the BMXAMI0410 module features first-order digital filtering and offers fast read cycle times as low as 1 ms per channel. The nominal read cycle time for all four channels is 5 ms. This enables efficient data acquisition and processing in time-sensitive applications.

The module provides excellent measurement accuracy, with errors of less than 0.1% of full scale for various input ranges, such as ±10 V, ±5 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 0 to 20 mA, and 4 to 20 mA, within a temperature range of 0 to 60 °C. It offers a precision internal conversion resistor with a drift of 15 ppm/°C.

Calibration of the module can be performed internally, simplifying maintenance and reducing downtime. It offers a minimum crosstalk attenuation of 80 dB, ensuring minimal interference between channels. The module also provides high common mode rejection and a wide digital value format range for flexible data representation.

Safety
Safety and reliability are key considerations for the BMXAMI0410 module. It offers an isolation voltage of 300 V DC between channels, 1400 V DC between channels and ground, and 1400 V DC between channels and bus. It has a measurement resolution of 0.35 mV for voltage inputs and 0.92 µA for current inputs. The module's MTBF (mean time between failures) reliability is rated at 1,200,000 hours.

Design
The BMXAMI0410 module is designed to operate in harsh industrial environments. It has a wide operating temperature range of 0 to 60 °C and can withstand vibration up to 3 gn and shocks up to 30 gn. It has an IP20 degree of protection against solid objects and is compliant with various directives and standards, including the low voltage directive, electromagnetic compatibility, and EN/IEC/UL/CSA certifications.

In conclusion, the Schneider Electric BMXAMI0410 is a high-performance isolated analog input module that offers precise and reliable data acquisition for industrial automation applications. With its versatile input options, high-resolution conversion, and robust design, this module is a valuable component in systems requiring accurate measurement and monitoring of analog signals.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
