BMXAMI0800 | Schneider Electric High-Level Analog Input Module For Modicon X80 Systems
- Regular price
- $575.00
- Sale price
- $575.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMXAMI0800
Description

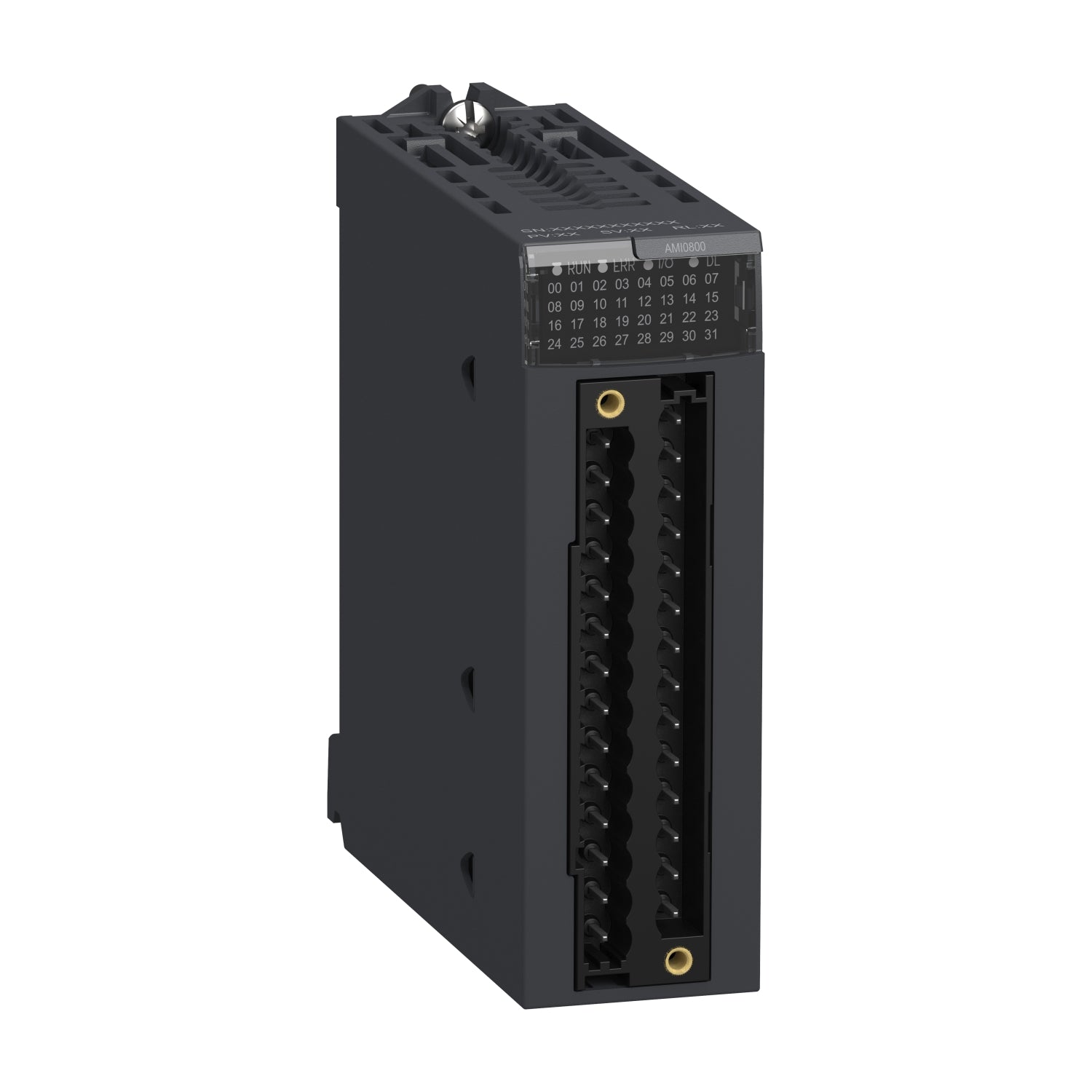

The Schneider Electric BMXAMI0800 is an analog input module designed for acquiring high-accuracy voltage and current signals in automation systems. With eight configurable input channels supporting multiple measurement ranges, it provides precise data collection for Modicon X80-based architectures.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs/Machine Control |
| Part Number | BMXAMI0800 |
| Subcategory | PLC Module/Rack |
| Main Function | I/O Unit |
| Product Series / Family Name | Modicon X80 |
| Function Type | Analog Input Module |
| Design | Non-isolated high-level inputs |
| Analog Inputs | 8 channels (voltage: −10…+10 V, −5…+5 V, 0–10 V, 0–5 V, 1–5 V; current: 0–20 mA, −20…+20 mA, 4–20 mA; 16-bit) |
| Display Indicators | RUN LED (Green), 1 diagnostic LED per channel, ERR LED (Red), I/O LED (Red) |
| Supply Voltage | 3.3 VDC / 24 VDC (rack supplied) |
| Connection Type | 28-pin removable terminal block (caged or spring) |
| Mounting Mode | Backplane / Rack mounting |
| Degree of Protection | IP20 |
| Operating Temperature | 0…60 °C (32…140 °F) |
| Storage Temperature | −40…+85 °C (−40…185 °F) |
| Humidity Rating | 5–95% (non-condensing at 55 °C) |
| Technical Compatibility | Modicon M340 PLCs, Modicon M580 PLCs |
| Power Consumption | 1.04 W at 24 VDC |
| Resolution | 16-bit |
| Certifications | EAC, RCM, UL, CSA, Merchant Navy, CE |
| Compliance Standards | IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213, UL 508 |
| Weight | 0.165 kg |
Information About BMXAMI0800
The BMXAMI0800 is an analog input module from the Schneider Electric Modicon X80 series designed to capture precision current and voltage measurements across eight high-level input channels. It integrates seamlessly with Modicon M340 and M580 controllers through the shared X80 platform, allowing consistent hardware architecture and simplified maintenance. The module supports multiple voltage and current ranges with 16-bit resolution to ensure reliable data acquisition for industrial process monitoring. Its non-isolated design, diagnostic LEDs, and rack-supplied power make it well suited for applications requiring high-density and high-accuracy analog input capability.
Key Features:
- Eight High-Level Analog Inputs: Supports multiple voltage and current ranges to accommodate diverse measurement requirements.
- Wide Signal Compatibility: Accepts −10 to +10 V, 0–10 V, 1–5 V, 0–20 mA, 4–20 mA, and ±20 mA inputs for broad industrial coverage.
- 16-Bit Signal Resolution: Provides precise and stable analog data for accurate monitoring and control tasks.
- Integrated Diagnostic LEDs: Includes channel-level indicators along with RUN, ERR, and I/O LEDs for real-time status feedback.
- Rack-Supplied Power Architecture: Draws 3.3 VDC and 24 VDC directly from the X80 backplane for simplified installation.
- Non-Isolated Module Design: Offers high-density measurement capability in applications where channel isolation is not required.
- Rugged Industrial Performance: Operates from 0 to 60 °C with IP20 protection and high humidity tolerance.
- Platform Compatibility: Fully supported by Modicon M340 and M580 systems within the unified X80 module platform.
The BMXAMI0800 delivers the reliability and precision required for high-density analog data acquisition in advanced industrial automation systems.
