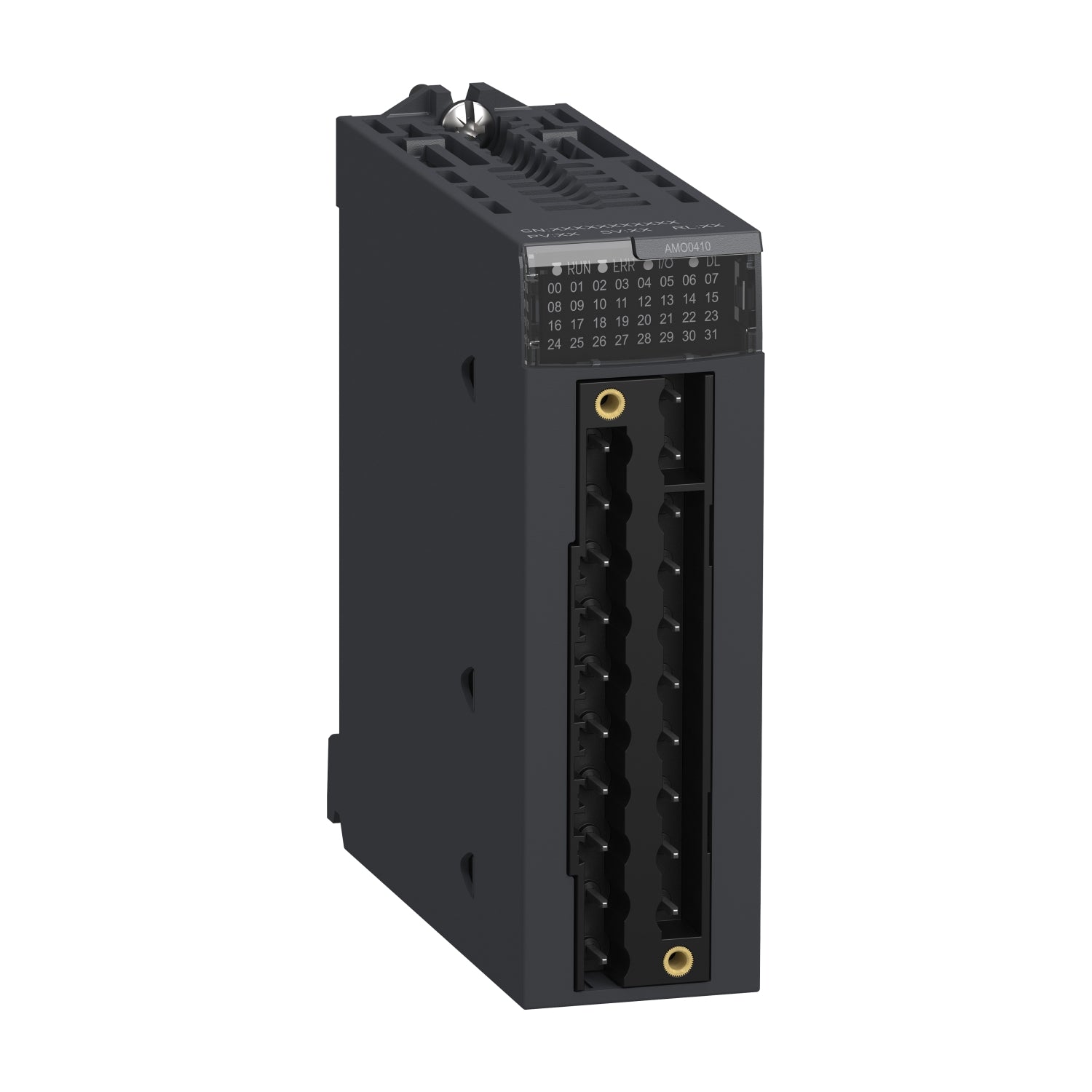

BMXAMO0410 | Schneider Electric Analog isolated high level output module
- Regular price
- $405.00
- Sale price
- $405.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BMXAMO0410
Description
The BMXAMO0410 is an analog isolated high-level output module within the Modicon X80 range, designed for use with Modicon M580 and M340 Programmable Automation Controllers (PAC). Featuring 4 outputs, it supports a range of signals including 0 to 20mA, 4 to 20mA, and 10V positive or negative.
With 15-bit + sign resolution, this output module operates with internal power supply via rack. It is constructed with robust, high-quality materials and incorporates the latest innovative technology. Equipped with a 20-way connector for electrical connection, it holds an IP20 rating and weighs 0.15kg.
Suitable for medium to large process applications, the BMXAMO0410 is certified by EAC, Merchant Navy, CSA, RCM, CE, and UL. It complies with EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.
Technical Specifications
|
Part # |
BMXAMO0410 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
MODICON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Range of Product |
Modicon X80 |
|
Product or component type |
Analog output module |
|
Electrical connection |
20 ways 1 connector |
|
Isolation between channels |
Isolated |
|
Minimum crosstalk attenuation |
80 dB |
|
Common mode rejection |
100 dB |
|
Output level |
High level |
|
Analogue output number |
4 |
|
Analogue output resolution |
15 bits + sign |
|
Supply |
Internal power supply via rack |
|
Conversion time |
<= 1 ms |
|
Vibration resistance |
3 gn |
|
Shock resistance |
30 gn |
|
Ambient air temperature for storage |
-40…85 °C |
|
Ambient air temperature for operation |
0…60 °C |
|
Relative humidity |
5…95 % at 55 °C without condensation |
|
IP degree of protection |
IP20 |
Information About BMXAMO0410
The BMXAMO0410 is an analog isolated high-level output module, part of the Modicon X80 range, designed for integration with Modicon M580 and M340 Programmable Automation Controllers (PAC). Featuring 4 outputs with 15-bit + sign resolution, it operates as an output module utilizing internal power supply via rack.
Constructed with robust materials and incorporating innovative technology, this module is furnished with a 20-way connector for electrical connection and holds an IP20 rating. Weighing 0.15kg, it is suitable for medium to large process applications.
Certified by EAC, Merchant Navy, CSA, RCM, CE, and UL, the BMXAMO0410 complies with standards including EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201.
As part of the Modicon X80 range, it contributes to a common platform of compatible modules, reducing maintenance and training costs by facilitating the use of the same spare parts across different PAC models. This approach streamlines stock management and enables unified training for various Programmable Automation Controllers.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
