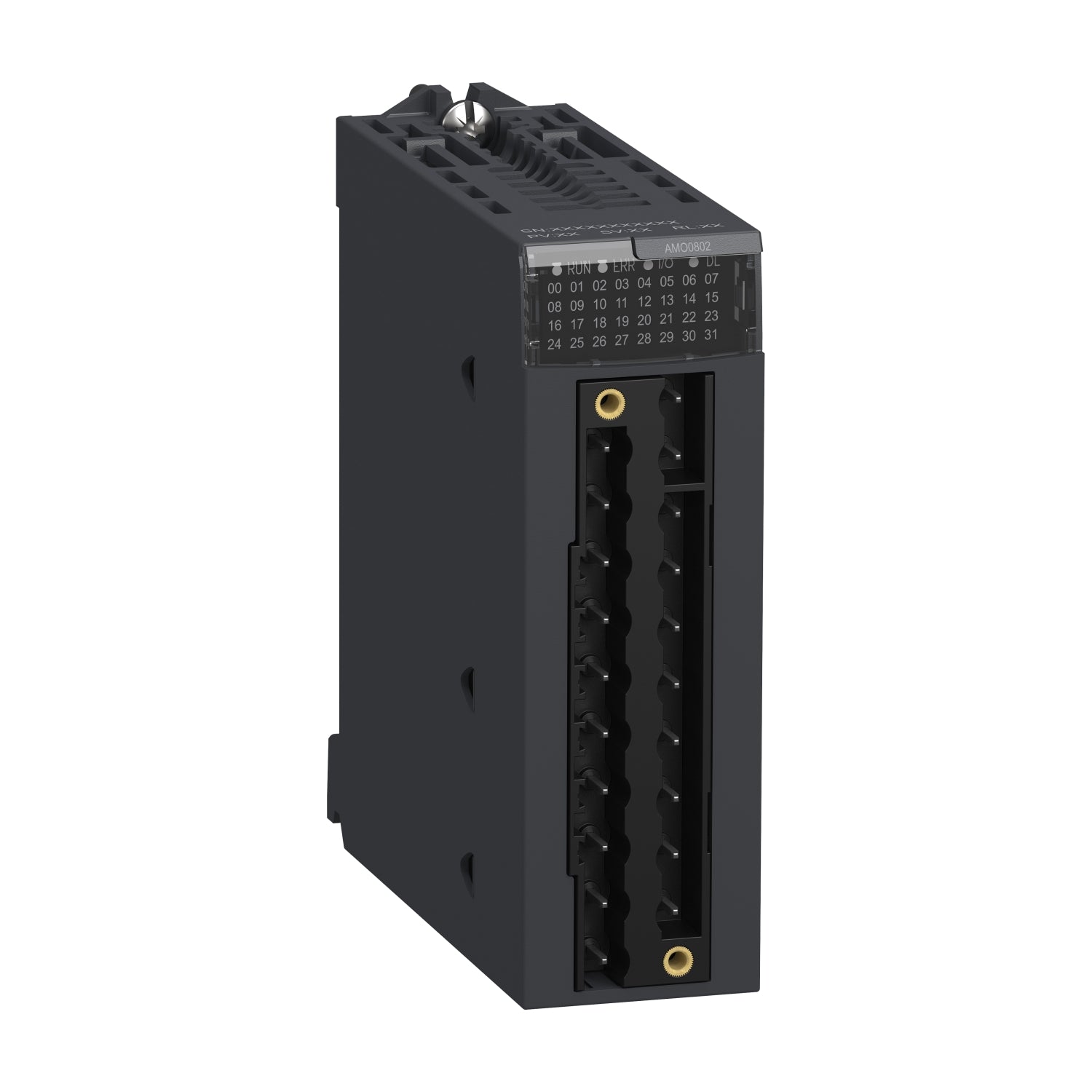

BMXAMO0802 | Schneider Electric Analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
- Regular price
- $412.00
- Sale price
- $412.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BMXAMO0802
Description
Square D Modicon Quantum Analog Output Module, Series: X80, 8 Outputs, 4 ms Conversion Rate, 16 bit Resolution, 24 VDC, 20/4/20 mA, 0.48/3.7 W Power, Cage/Screw/Spring Terminal, 0 to 60 deg C, 3.93 in H x 6.29 in D Dimensions.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | BMXAMO0802 |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Amperage Rating | 20/4/20 mA |
| Dimensions | 3.93 in H x 6.29 in D |
| Number of outputs | 8 |
| Power Rating | 0.48/3.7 W |
| Resolution | 16 bit |
| Series | X80 |
| Temperature Rating (Degrees F) | 0 to 60 deg C |
| Terminal Type | Cage/Screw/Spring |
| Voltage Rating | 24 VDC |
Information About BMXAMO0802
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Key Features and Specifications:
Modicon X80 Compatibility:
The BMXAMO0802 module is specifically designed for compatibility with the Modicon X80 platform, ensuring seamless integration and interoperability within Schneider Electric's ecosystem of automation products.
Analog Output Functionality:
As an analog output module, the BMXAMO0802 is capable of converting digital signals from a PLC or controller into analog signals for controlling various actuators such as motors, valves, or proportional control devices.
High-Resolution Measurement:
With a resolution of 16 bits, the BMXAMO0802 offers high-precision analog output, enabling accurate control over a wide range of industrial processes. This ensures precise positioning, regulation, and monitoring of critical parameters.
Robust Construction and Reliability:
Schneider Electric's commitment to quality and durability is evident in the BMXAMO0802 module. Its rugged construction and adherence to industry standards such as EN/IEC 61010-2-201 and UL 61010-2-201 ensure reliable performance even in harsh industrial environments.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
