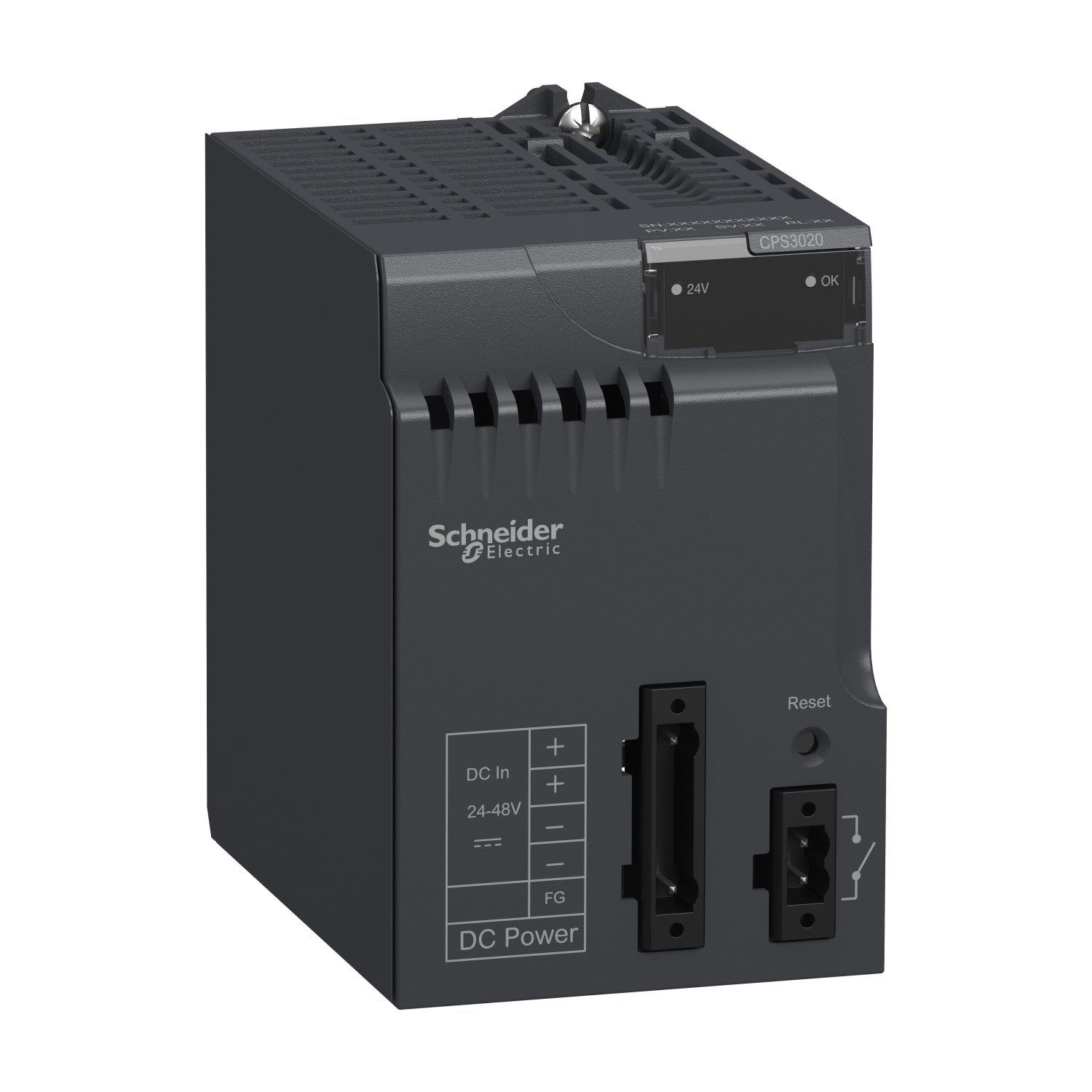

Part #: BMXCPS3020 Manufactured by: Schneider Electric
Regular price
$352.00
Sale price
$352.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The BMXCPS3020 is a power supply module designed for integration within the Modicon X80 series. It functions as the prima...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: BMXCPS3020
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: BMXCPS3020

Description / Specifications

Description

The BMXCPS3020 is a power supply module within the Modicon X80 series. It serves as the power source for each Modicon X80 I/O rack and its installed modules. Operating within a voltage range of 24V to 48V DC, it provides isolated power. Encased for IP20 protection, it safeguards the internal electronics from environmental factors.


Technical Specifications



Part #

BMXCPS3020

Manufacturer

SCHNEIDER ELECTRIC

Brand

MODICON

Category

Power Supplies

Subcategory

Power Supply Range of produc

Product or component type

Power supply module

Backplane compatibility

Not compatible with BMEXBP..02

Primary voltage

24...48 V isolated

Supply circuit type

DC

Secondary power

15 W 3.3 V DC I/O module logic power supply

Primary voltage limit

18...62.4 V

Input current

0.83 A 48 V

Inrush current

30 A 24 V

I²t on activation

1 A².s 24 V

It on activation

0.2 A.s 24 V

MTBF reliability

4600000 H

Current at secondary voltage

1.3 A 24 V DC I/O module power supply and processor

Maximum power dissipation in W

8.5 W

Status LED

1 LED (green) rack voltage OK

Control type

RESET push-button cold restart

Immunity to microbreaks

1 ms

Dielectric strength

1500 V primary/ground

Vibration resistance

3 gn

Shock resistance

30 gn

IP degree of protection

IP20

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % at 55 °C without condensation

Protective treatment

TC



Information About BMXCPS3020



The BMXCPS3020 is a power supply module designed for integration within the Modicon X80 series. Its primary function is to provide power supply for each Modicon X80 I/O rack and the associated installed modules. Operating within a voltage range of 24V to 48V DC, it offers isolated power supply capabilities.

Enclosed within a case that provides IP20 protection, this module ensures the safeguarding of the internal electronics against environmental factors and potential damage. The IP20 protection rating signifies protection against solid objects greater than 12 mm in diameter and offers limited protection against ingress of solid objects.

With a power output rating of 31.2W, the BMXCPS3020 is capable of efficiently delivering power to the connected devices within the Modicon X80 system. This power supply module is specifically engineered to meet the power requirements of the Modicon X80 series, ensuring reliable and stable operation of the entire system.

Its design and construction prioritize durability and reliability, ensuring consistent performance even in demanding industrial environments. By providing a stable and consistent power supply, the BMXCPS3020 contributes to the overall functionality and efficiency of the Modicon X80 system, enhancing productivity and reducing the risk of system downtime.

Installation and integration of the BMXCPS3020 within the Modicon X80 system are streamlined and straightforward, making it a practical choice for industrial automation applications. Its compatibility with Modicon X80 modules ensures seamless integration and operation within the system architecture.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.


IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
