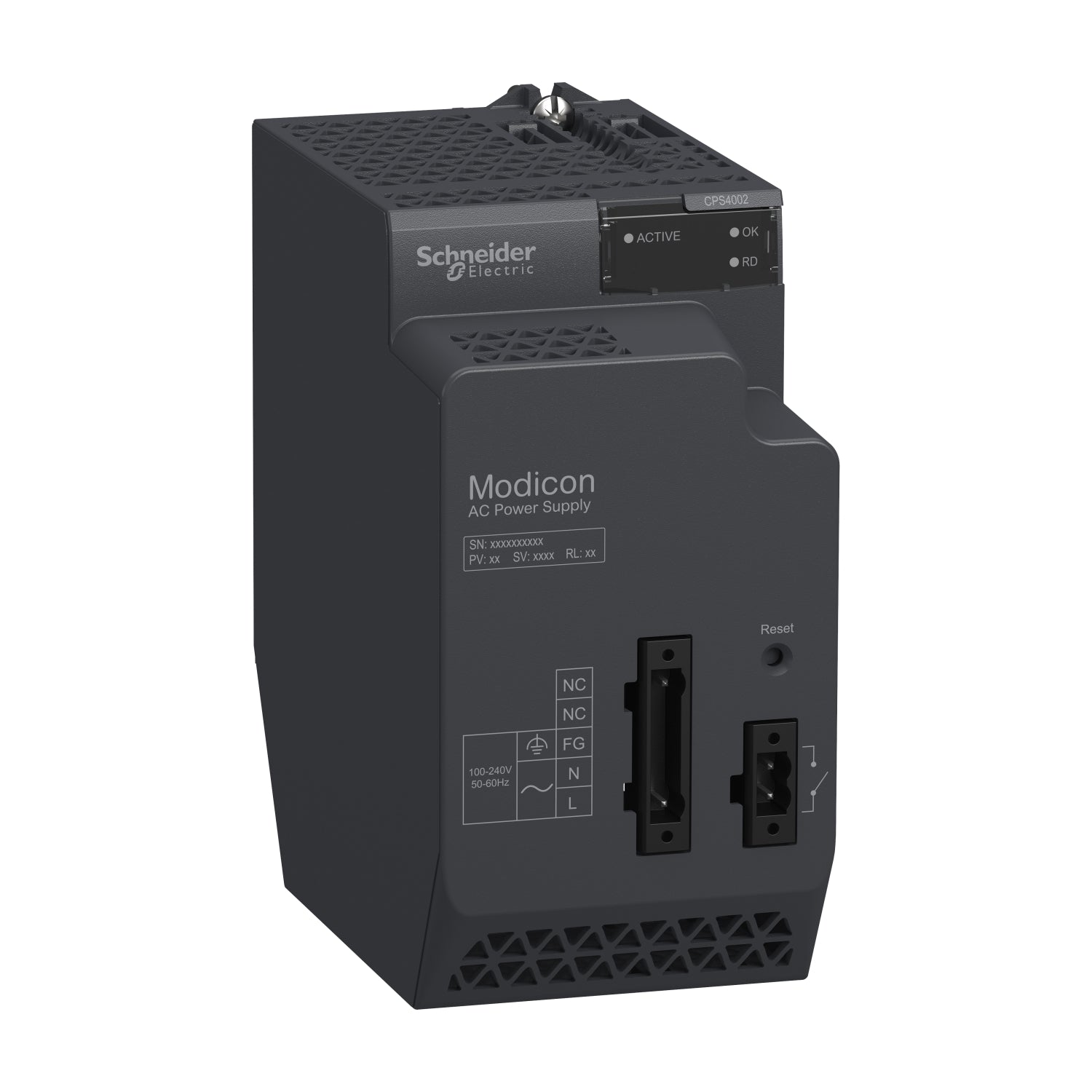

BMXCPS4002 | Schneider Electric | Power Supply Module

Description

Schneider Electric Redundant Power Supply Module, Series: Modicon X80, 100 to 240 VAC Input, 3.3 to 24 VDC Output, 0.52/1.04 A Input Current, 1.67/5.5 Output Current, 18 to 40 W Power Consumption, 8.5 W Power Dissipation, Specifications: 30 A at 120 V, 60 A at 240 V Inrush Current, 0.07 kVA Apparent, IP20, -40 to 185 deg F Storage Temperature, 32 to 140 deg F, 10.5 in L x 7.1 in W x 4 in H Dimensions.

Technical Specifications

Information About BMXCPS4002

BMXCPS4002 Modicon X80 Systems
The BMXCPS4002 is a power supply module designed for use with Modicon X80 systems, a product range by Schneider Electric, a leading global provider of industrial automation and control solutions. As a vital component in the Modicon X80 series, this power supply module ensures a stable and uninterrupted power source for various industrial applications. With a primary voltage range of 100 to 240 VAC and a secondary power output of 18 W at 3.3 VDC for the I/O module logic power supply and 40 W at 24 VDC for the I/O module power supply and processor, the BMXCPS4002 delivers efficient and reliable power to support the functioning of critical industrial equipment.

Versatile Backplane Compatibility:
The BMXCPS4002 is designed to be compatible with all backplane configurations, making it a versatile choice for different Modicon X80 setups. This compatibility ensures that the power supply module can seamlessly integrate into various control architectures and industrial networks, providing a consistent and reliable power source to multiple connected devices and modules.

Advanced Diagnostics and Redundancy:
The BMXCPS4002 comes equipped with advanced diagnostics capabilities that enable monitoring and status checking via the network. This feature allows operators to remotely assess the power supply's performance and health, ensuring timely interventions and proactive maintenance. Additionally, the module offers redundancy testing and redundancy information, providing backup support in case of power supply failure to maintain uninterrupted operations in critical industrial processes.

Robust Primary Voltage Range:
The BMXCPS4002 accepts a wide primary voltage range of 100 to 240 VAC, accommodating various input voltage levels encountered in industrial power systems. This adaptability to a broad range of primary voltages makes the power supply module suitable for global applications and installations, where voltage fluctuations and diverse power sources are prevalent.

Efficient and Safe Secondary Power Outputs:
The power supply module's secondary power outputs deliver 18 W at 3.3 VDC for the I/O module logic power supply and 40 W at 24 VDC for the I/O module power supply and processor. These outputs are carefully regulated to provide stable and reliable power to support the operation of critical industrial components, such as sensors, actuators, and processors. The efficient power delivery ensures that industrial processes run smoothly and without interruptions.

Comprehensive Protection Features:
Safety is a top priority in industrial applications, and the BMXCPS4002 takes this seriously by incorporating comprehensive protection features. These include overload, overvoltage, and short-circuit protection for the secondary circuit, safeguarding both the power supply module and the connected devices from potential electrical faults. The module also features an internal fuse that is not accessible for the primary circuit, ensuring additional safety for the primary circuit.

Compact Design and Status Indicators:
The BMXCPS4002 is designed with a compact form factor, allowing easy integration into control panels and enclosures with limited space availability. Additionally, the module features status LEDs that provide visual indications of voltage presence, redundancy status, and power supply status. These LEDs assist operators in quickly identifying any issues or faults, allowing for prompt troubleshooting and maintenance actions.

Conclusion:
The BMXCPS4002 Power Supply Module from Schneider Electric's Modicon X80 series offers efficient and reliable power to support the smooth functioning of industrial applications. With its wide primary voltage range, versatile backplane compatibility, advanced diagnostics, and comprehensive protection features, this power supply module provides a dependable power source for a variety of industrial devices and equipment. Operators can trust the BMXCPS4002 to deliver uninterrupted power, ensuring the efficiency, safety, and reliability of their Modicon X80 systems in critical industrial processes.
