Product Description P/N: BMXDAI1602
Description

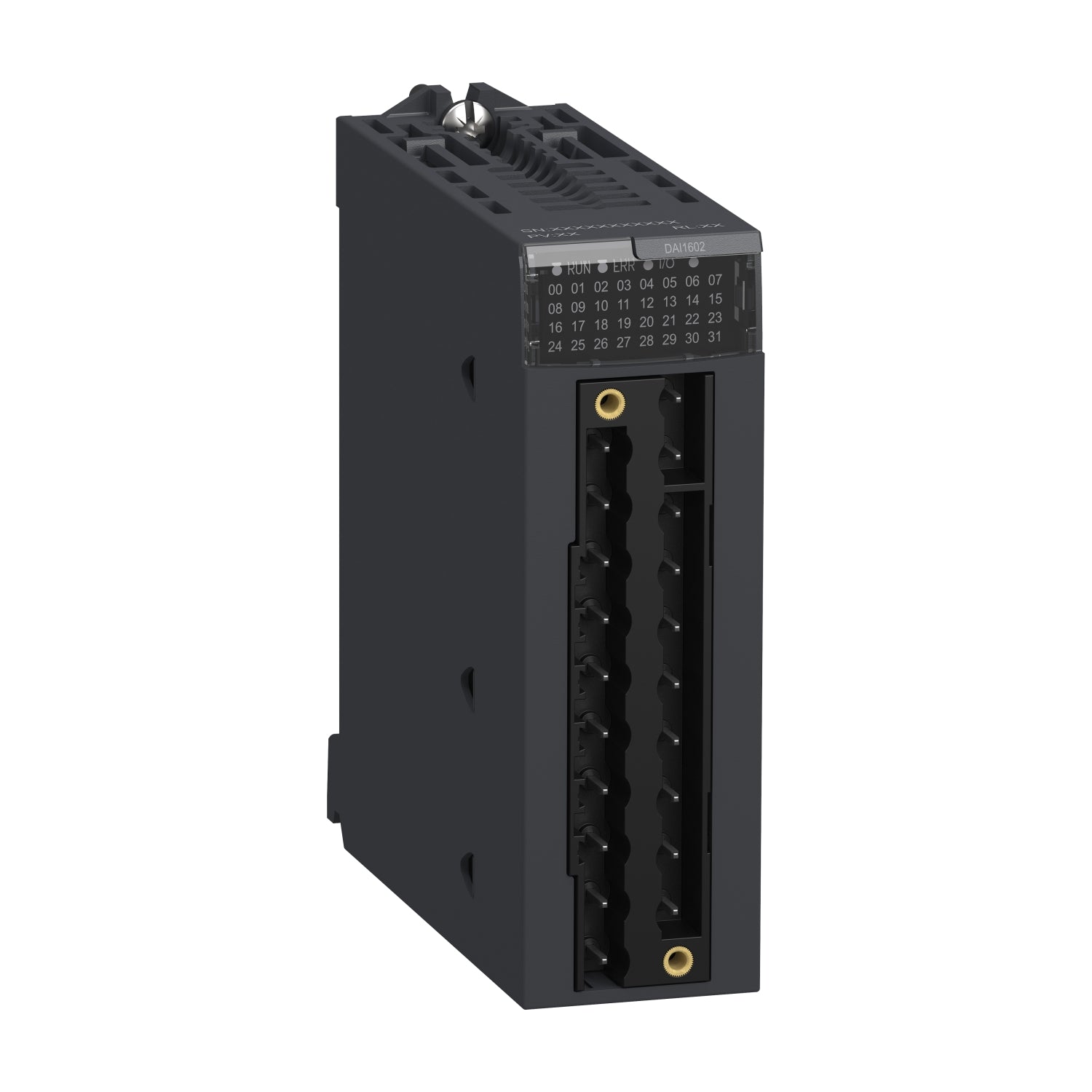

The Schneider Electric BMXDAI1602 is a 16-channel digital input module designed for Modicon X80 systems supporting M340 and M580 automation platforms. It accepts 24 VAC/VDC sink or source signals and installs directly into a single rack slot with a removable 20-pin terminal block. Rated for industrial environments, it provides IP20 protection and reliable input filtering for both AC and DC applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs/Machine Control |
| Part Number | BMXDAI1602 |
| Subcategory | VDC Logic I/O Module |
| Number of Inputs | 16 digital inputs |
| Voltage Rating | 24 VAC/VDC (19–30 VAC/VDC range) |
| Input Type | Sink/Source, isolated |
| Input Impedance | 6400 Ω |
| Filtering Times | DC: 10 ms typical, 20 ms max; AC: 15 ms activation, 20 ms deactivation |
| Current Consumption | 90 mA at 3.3 VDC (typical) |
| Input Current | 3 mA nominal |
| Compatibility | Modicon M340 / M580 via X80 platform |
| Connector Type | 20-pin removable terminal block |
| IP Rating | IP20 |
| Ambient Operating Temperature | 32…140 °F (0…60 °C) |
| Ambient Storage Temperature | -40…185 °F (-40…85 °C) |
| Humidity | 5–95% non-condensing |
| Dielectric Strength | 1500 VAC for 1 minute (primary/secondary) |
| Frequency Compatibility | 50/60 Hz |
| Protection | External 0.5 A fast-blow fuse per input group |
| MTBF | 1,504,958 hours |
Information About BMXDAI1602
The BMXDAI1602 belongs to the Modicon X80 I/O module family, offering standardized, rack-mounted digital input functionality for Modicon controllers. Its construction features 16 isolated inputs, resistive input circuitry, and compatibility with 2-wire and 3-wire proximity sensors as defined by IEC 60947-5-2. The module integrates seamlessly through the X80 backplane, requiring no external power beyond the 3.3 VDC rack supply and supporting diagnostic signaling through its terminal interface. Typical usage includes discrete signal monitoring in automation systems where stable input filtering, wide voltage tolerance, and adherence to IEC/EN 61131-2 Type 1 and non-Type standards are essential.
Key Features:
- 16 digital inputs: Supports 24 VAC/VDC sink or source signals for flexible field device integration.
- Isolated, resistive input circuits: Provide reliable signal conditioning and protection.
- Wide voltage operating range: Accepts 19–30 VAC/VDC for robust industrial performance.
- Input filtering for AC/DC: Includes defined activation and deactivation filtering times.
- Supports proximity sensors: Compatible with IEC 60947-5-2 inductive and capacitive sensors.
- Removable 20-pin terminal block: Simplifies wiring and maintenance operations.
- Rack-mounted Modicon X80 design: Occupies a single slot and draws minimal backplane current.
- IP20 environmental rating: Suitable for installation within protected control enclosures.
The BMXDAI1602 delivers the reliability and precision required for discrete input processing in Modicon automation architectures.
