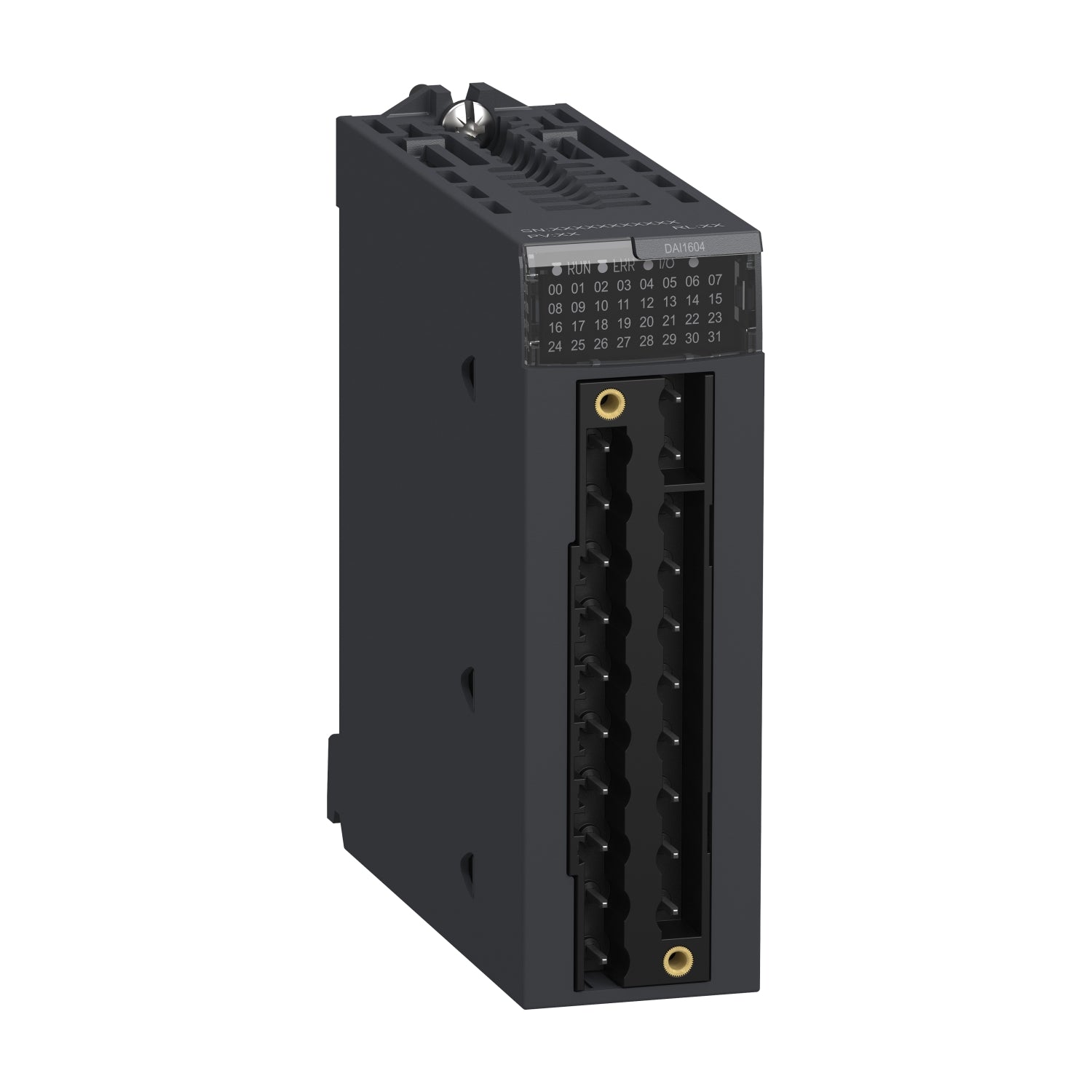

BMXDAI1604 | Schneider Electric Discrete input module, Modicon X80, 16 inputs, 100 to 120V AC
- Regular price
- $445.00
- Sale price
- $445.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BMXDAI1604
Description
The BMXDAI1604, manufactured by Schneider Electric, is a discrete input module designed for the Modicon X80 series. It features 16 inputs capable of accepting a voltage range from 100 to 120V AC. This module enables seamless integration of digital signals into Modicon X80 control systems, enhancing monitoring and control capabilities in industrial environments.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | BMXDAI1604 |
| Category | PLCs/Machine Control |
| Subcategory | PLC Module/Rack |
| Range | Modicon X80 |
| Input | Capacitive |
| Component | Discrete input |
| Input no. | 16 Discrete input |
| Input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 |
| Discrete input | 100...120 V AC |
| Discrete input current | 5 mA |
| Protection | IP20 |
| Certifications | CE, CSA, UL, RCM, Merchant Navy, EAC |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201 |
| Frequency | 50/60 Hz |
| Frequency range | 47...63 Hz |
| Sensor power supply | 20...26 V |
| Input impedance | 13000 Ohm |
| Insulation resistance | > 10 MOhm 500 V DC |
| MTBF reliability | 1504958 H |
| Power dissipation | <= 3.8 W |
| Current consumption | 90 mA at 3.3 V DC |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Status LED | 1 LED red module error (ERR) 1 LED green module operating (RUN) 1 LED per channel green channel diagnostic 1 LED red module I/O |
Information About BMXDAI1604
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 3.8W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow protection type. It offers 1504958 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Channels: A formidable array of 16 digital inputs, each primed to serve as a conduit of information.
Voltage Levels: Customarily tailored to accommodate 24V DC inputs, the specific voltage nuances find their expression in the module's dedicated documentation.
Input Type: As champions of discrete (on/off) input processing, these channels provide a clear demarcation between states.
Isolation: Standing as vigilant sentinels, isolation separates channels from the internal bus, preventing interference from permeating the system.
Response Time: Encompassed within the product's technical documentation, rest assured, digital input modules traditionally exhibit rapid response times, honing the precision of data acquisition.
Protection: Fortified with the bastion of overvoltage protection and fortified with individual LED indicators for each channel, this module safeguards against unforeseen adversities.
Terminal Type: Elegantly designed removable connectors beckon the realms of installation and maintenance, offering a pathway to streamlined operations.
Mounting: A harbinger of compatibility, this module gracefully finds its abode in the hallowed halls of standard rail mounting, an apt configuration for the rigors of industrial landscapes.
Installation:
Powering Down the Genesis
With the cautionary tale of ensuring the PLC's power-down status echoes, embark on the installation journey.
Navigate the labyrinthine contours of the Modicon M340 rack or backplane, finding the module's destined slot.
Secure the module with the guidance provided in the installation manual, crafting a foundation for unwavering stability.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
