BMXDAO1605 | Schneider Electric Discrete Triac Output Module For Modicon X80 Systems
- Regular price
- $569.00
- Sale price
- $569.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BMXDAO1605
Description

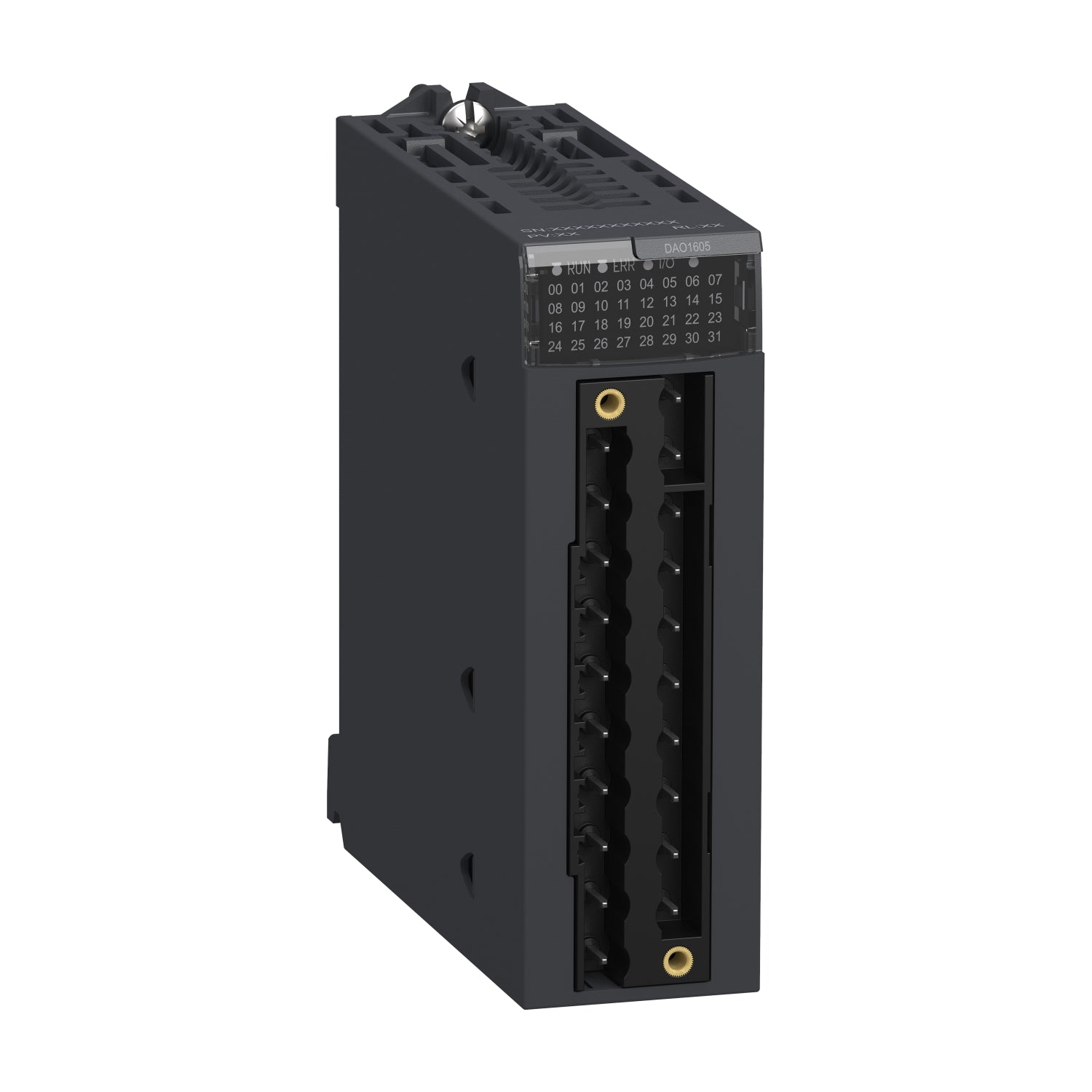

The Schneider Electric BMXDAO1605 is a discrete output module equipped with sixteen triac channels for controlling AC-powered devices within automation systems. Operating from 100 to 240 V AC, it offers dependable output switching for industrial applications that require reliable load control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs/Machine Control |
| Part Number | BMXDAO1605 |
| Subcategory | Discrete Output Module |
| Family Name | Modicon Controllers Family |
| Series | Modicon X80 Series |
| For Use With | Modicon X80 I/Os |
| Discrete Output Type | Triac |
| Discrete Output Number | 16 |
| Discrete Output Voltage | 100–240 V AC |
| Discrete Output Current | 0.6 A per channel |
| IP Rating | IP20 |
| Product Type | Discrete Output Module |
| Output Technology | AC Triac Switching |
| Protection Type | External fast-blow fuse |
| Certifications | EAC, Merchant Navy, CSA, RCM, CE, UL |
| Compliance Standards | EN 61131-2, EN 61000-6-4, EN 61000-6-2, EN 61010-2-201 |
| Typical Current Consumption | 100 mA at 3.3 V DC |
| Installation Environment | Medium to large automation systems |
Information About BMXDAO1605
The BMXDAO1605 is a discrete output module belonging to the Schneider Electric Modicon X80 Series, designed to interface with Modicon M580 and M340 automation platforms. It incorporates sixteen triac-based AC output channels, enabling consistent switching of loads across typical industrial voltage ranges. The module integrates into X80 backplanes using a standardized architecture that simplifies maintenance, reduces spare-part requirements, and ensures compatibility across PAC-based systems. Common applications include motor starters, indicators, solenoid-driven equipment, and other devices requiring reliable AC output control within process automation environments.
Key Features:
- Sixteen Triac Output Channels: Provides high-density AC output capability for controlling multiple loads in industrial panels.
- 100–240 V AC Output Range: Supports common AC control voltages used across manufacturing and process automation systems.
- 0.6 A Per Channel Capacity: Handles moderate load currents suitable for solenoids, contactors, relays, and signaling devices.
- Platform-Wide Modicon X80 Integration: Shares a unified hardware architecture that simplifies system expansion and maintenance.
- External Fast-Blow Fuse Protection: Ensures safe operation and protects the module against overcurrent conditions.
- Industry-Certified Design: Meets major global standards and certifications for industrial electrical equipment.
- IP20 Housing: Intended for installation within protected electrical enclosures.
- Standardized Module Form Factor: Supports hot-swap and flexible module replacement without interrupting system operation.
The BMXDAO1605 delivers the reliability and precision required for dependable AC load switching in complex industrial automation systems.
