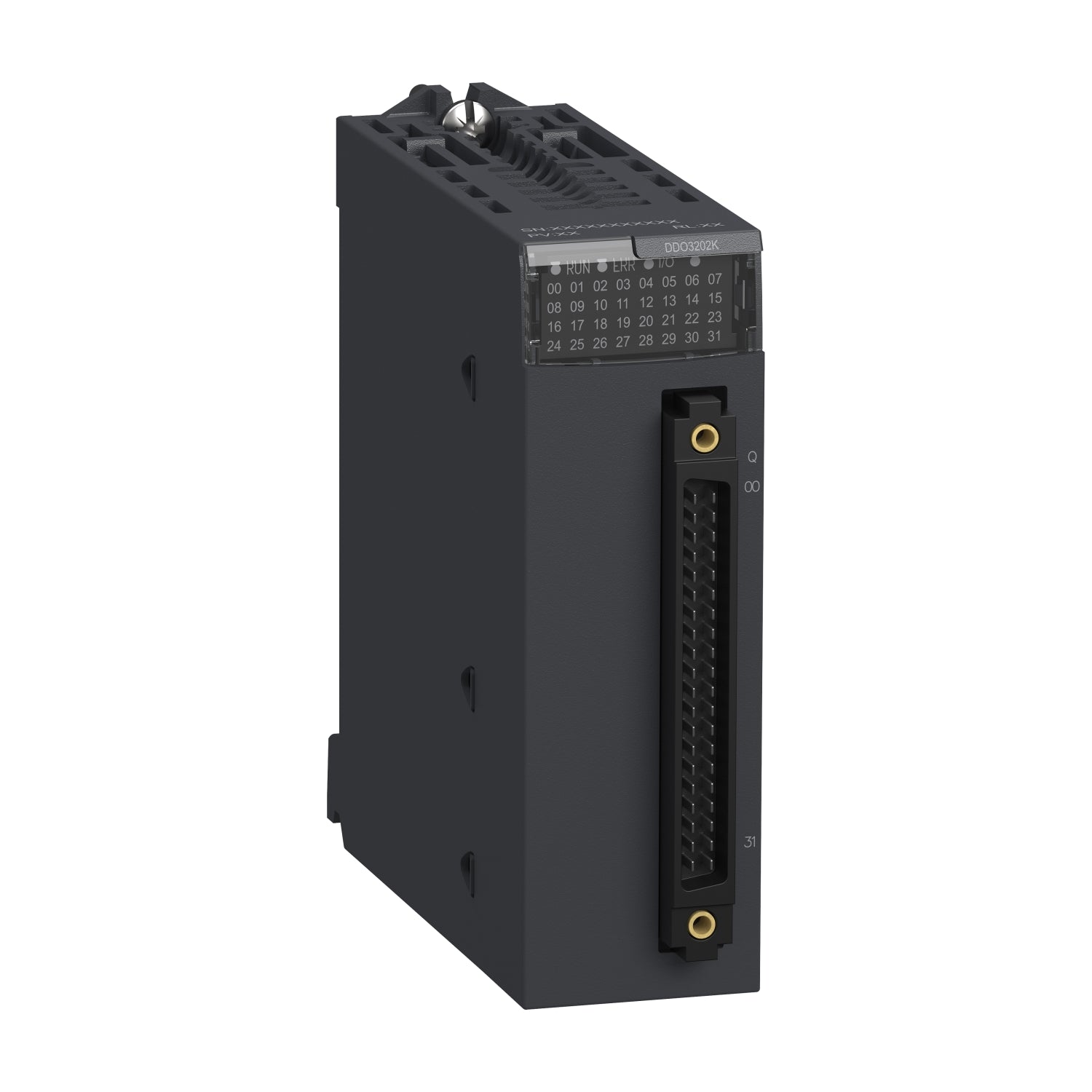

Product Description P/N: BMXDDO3202K

Description / Specifications

Description

The BMXDDO3202K stands as a cornerstone in the Modicon X80 range, offering precision and versatility in discrete output control. With 32 transistor outputs and a host of advanced features, this discrete output module is engineered to meet the demands of industrial automation with reliability and efficiency.


Technical Specifications


Brand Schneider Electric
Part Number BMXDDO3202K
Category PLCs/Machine Control
Subcategory PLC Module/Rack
Range Modicon X80
Discrete output type Solid state
Discrete output current 0.1 A
Discrete output number 32 EN/IEC 61131-2
Current per channel 0.125 A
Maximum current 3.2 A
Discrete output logic Positive
Maximum leakage current 0.1 mA at state 0
Discrete output voltage 24 V 19...30 V DC
Maximum voltage drop <1.5 V at state 1
Power dissipation 3.6 W
Response time on output 1.2 ms
Insulation resistance > 10 MOhm 500 V DC
MTBF reliability 290000 H
Typical current consumption 125 mA 3.3 V DC
Output overload protection With current limiter With electronic circuit breaker 0.125 A < Id < 0.185 A
Switching frequency 0.5/LI² Hz
Load impedance ohmic >= 220 Ohm
Maximum overload time 15 ms
Protection IP20




Information About BMXDDO3202K

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 32 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 3.6W, a typical current consumption 125mA at 3.3V DC and 0.1A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 312254 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Range of Product: Modicon X80

As part of the Modicon X80 range, the BMXDDO3202K is designed to integrate seamlessly into Modicon automation systems, providing a robust solution for discrete output control.

Discrete Output Number: 32 EN/IEC 61131-2

Featuring an impressive 32-transistor output, the module enables the precise control of multiple devices or processes, enhancing the flexibility of industrial applications.

Discrete Output Type: Solid State

The use of solid-state technology ensures reliability and longevity in operation, making the BMXDDO3202K a dependable choice for critical industrial processes.

Discrete Output Logic: Positive

Employing positive logic simplifies integration, ensuring consistent and intuitive communication within the Modicon automation system.

Discrete Output Voltage: 24 V (19...30 V DC)

Operating within a voltage range of 19 to 30 V DC, the module provides compatibility with various industrial setups, offering flexibility in power requirements.

Discrete Output Current: 0.1 A

Each discrete output channel can handle a current of 0.1 A, allowing for precise control over connected devices or components.

Maximum Current per Module: 3.2 A

With a maximum current capacity of 3.2 A per module, the BMXDDO3202K meets the demands of industrial applications with higher current requirements.

Response Time on Output: 1.2 ms

The module boasts a rapid response time of 1.2 ms, ensuring real-time control and execution of commands for efficient industrial processes.

Status LED Indicators:

Equipped with status LEDs, including module operating (RUN), channel diagnostic (Green), module error (ERR), and module I/O (Red), users can easily monitor and diagnose the status of the module and connected channels.

Protection Features:

The module includes a range of protection features such as external fuse reverse polarity protection, short-circuit protection, overload protection, and overvoltage protection, ensuring the longevity and reliability of the connected devices.

Environmental Considerations:

The BMXDDO3202K boasts a robust IP20 degree of protection, making it resilient against solid objects. It adheres to directives such as the low voltage directive (2014/35/EU) and electromagnetic compatibility (2014/30/EU).

Mechanical Data:

With a compact and lightweight design (0.24 lb/0.11 kg), the module is easy to integrate into various industrial setups.

Environmental Operating Conditions:

The module can operate in a wide temperature range (-40…185 °F) and at altitudes up to 6561.68 ft (2000 m) without derating. It exhibits resistance to vibrations (3 gn) and shocks (30 gn).



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
