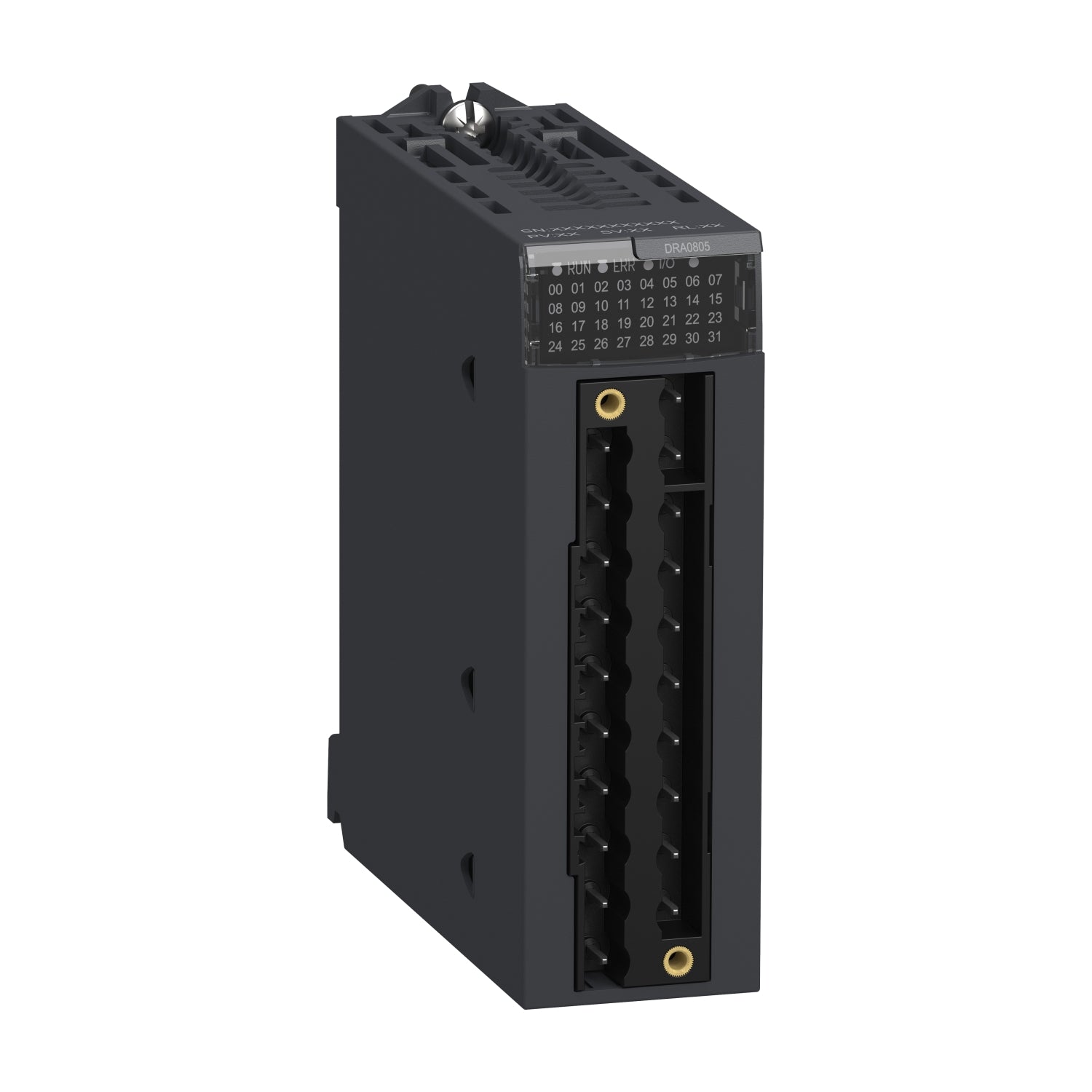

BMXDRA0805 | Schneider Electric Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC
BMXDRA0805 | Schneider Electric Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC
Part #: BMXDRA0805 Manufactured by: Schneider Electric

BMXDRA0805 | Schneider Electric Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC

Regular price
$355.00
Sale price
$355.00
Regular price
Never Used Surplus
1 in Stock
Shipping calculated at checkout.
Product Overview
DC digital output module - Schneider Electric / Modicon (Modicon X80 series) - 8I/Os [8DO (8 x digital outputs (3A; NO rly...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: BMXDRA0805
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
BMXDRA0805 | Schneider Electric Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC
    BMXDRA0805 | Schneider Electric Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC
BMXDRA0805 | Schneider Electric Discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC / 24V DC
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: BMXDRA0805

Description / Specifications

Description

Modicon BMXDRA0805 Digital Output Module 8 Isolated Relay Outputs 24 VDC 120 VAC 220 VAC 240 VAC Non-Hardened uses 20 point BMXFTB2000 terminal block.


Technical Specifications


Brand Schneider Electric
Part Number BMXDRA0805
Category PLCs/Machine Control
Subcategory PLC Module/Rack
Range of product Modicon X80
Product or component type Discrete output module
Discrete output number 8 conforming to EN/IEC 61131-2
Discrete output type Relay
Discrete output voltage 24...240 V 19...264 V AC
12...24 V 10...34 V DC
conventional free air thermal current 3 A
Insulation resistance > 10 MOhm 500 V DC
Power dissipation in W 2.7 W
Response time on output < 10 ms activation
< 8 ms deactivation
Typical current consumption 79 mA at 3.3 V DC
Output overload protection Use 1 fast blow fuse per channel or group of channel
Minimum switching current 10 mA 5 V DC




Information About BMXDRA0805

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 24V to 240V, 19V AC to 264V AC, 12V to 24V, 10V DC to 34V DC, a typical current consumption of 79mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000, 1 million, 10 million, 150000, 1500000, 2 million, 300000, 3 million, 500000, 5 million, 700000 cycles and 2119902 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

Modicon BMXDRA0805 Digital Output Module 8 Isolated Relay Outputs 24 VDC 120 VAC 220 VAC 240 VAC Non-Hardened uses 20 point BMXFTB2000 terminal block.


Technical Specifications


Brand Schneider Electric
Part Number BMXDRA0805
Category PLCs/Machine Control
Subcategory PLC Module/Rack
Range of product Modicon X80
Product or component type Discrete output module
Discrete output number 8 conforming to EN/IEC 61131-2
Discrete output type Relay
Discrete output voltage 24...240 V 19...264 V AC
12...24 V 10...34 V DC
conventional free air thermal current 3 A
Insulation resistance > 10 MOhm 500 V DC
Power dissipation in W 2.7 W
Response time on output < 10 ms activation
< 8 ms deactivation
Typical current consumption 79 mA at 3.3 V DC
Output overload protection Use 1 fast blow fuse per channel or group of channel
Minimum switching current 10 mA 5 V DC




Information About BMXDRA0805

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 24V to 240V, 19V AC to 264V AC, 12V to 24V, 10V DC to 34V DC, a typical current consumption of 79mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000, 1 million, 10 million, 150000, 1500000, 2 million, 300000, 3 million, 500000, 5 million, 700000 cycles and 2119902 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
