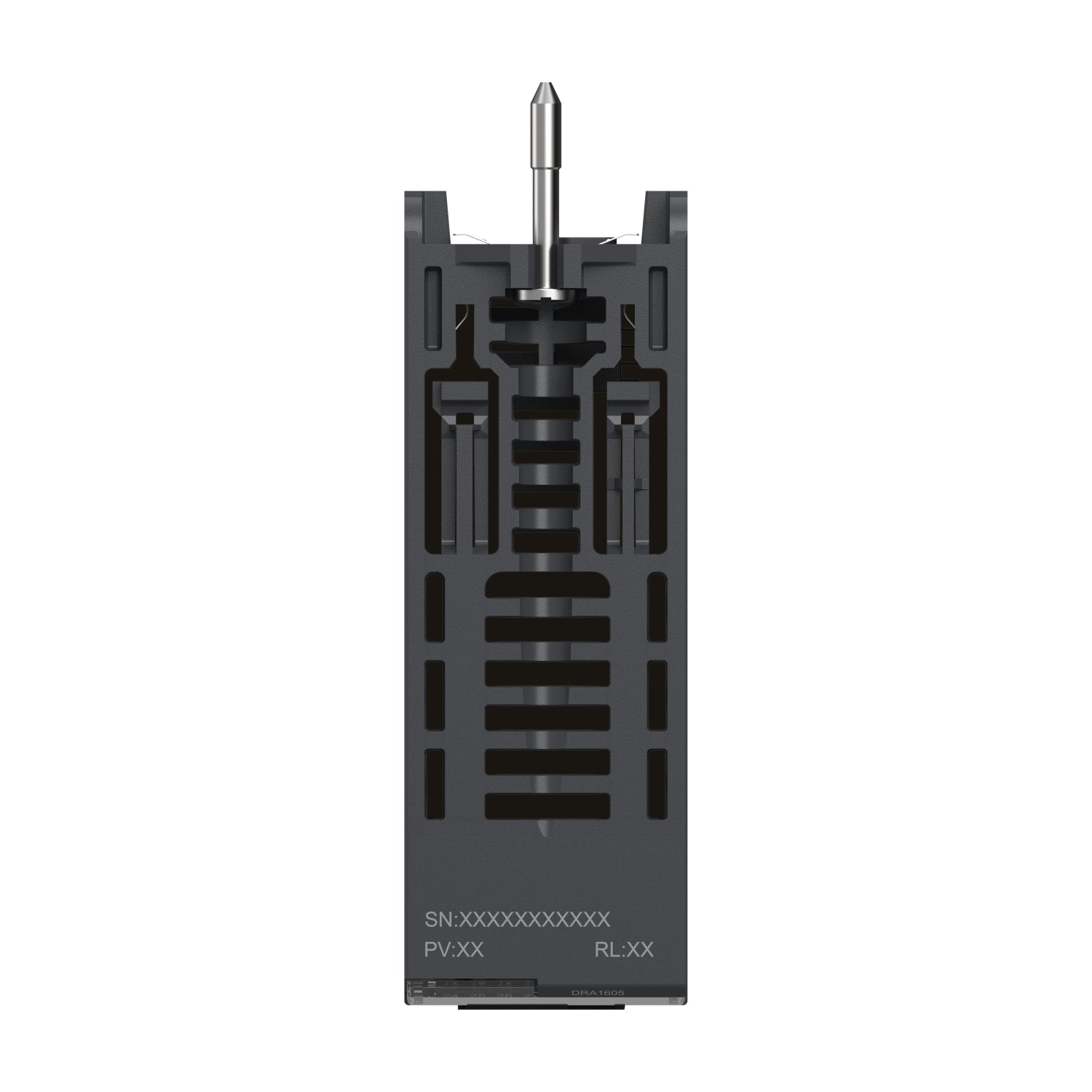

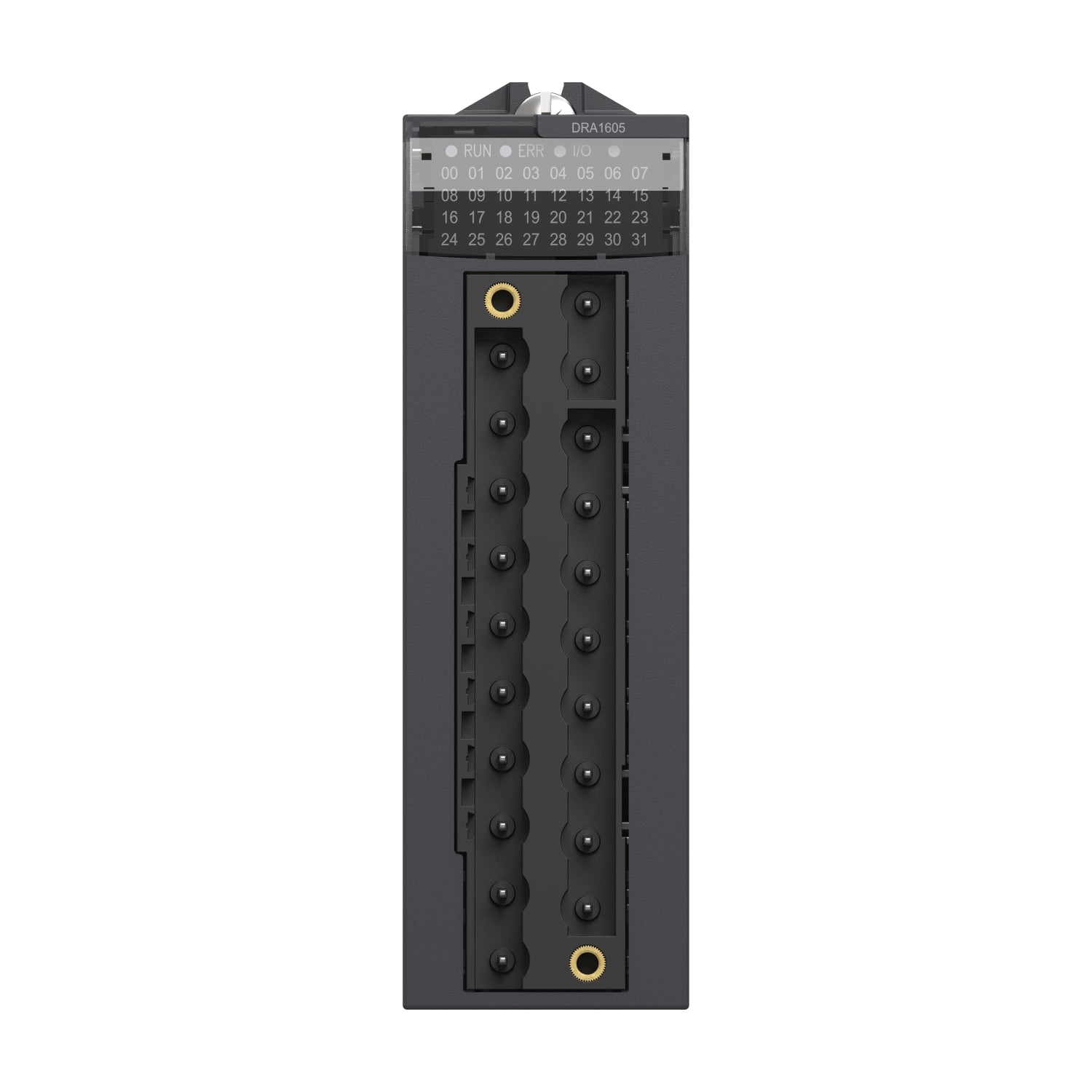

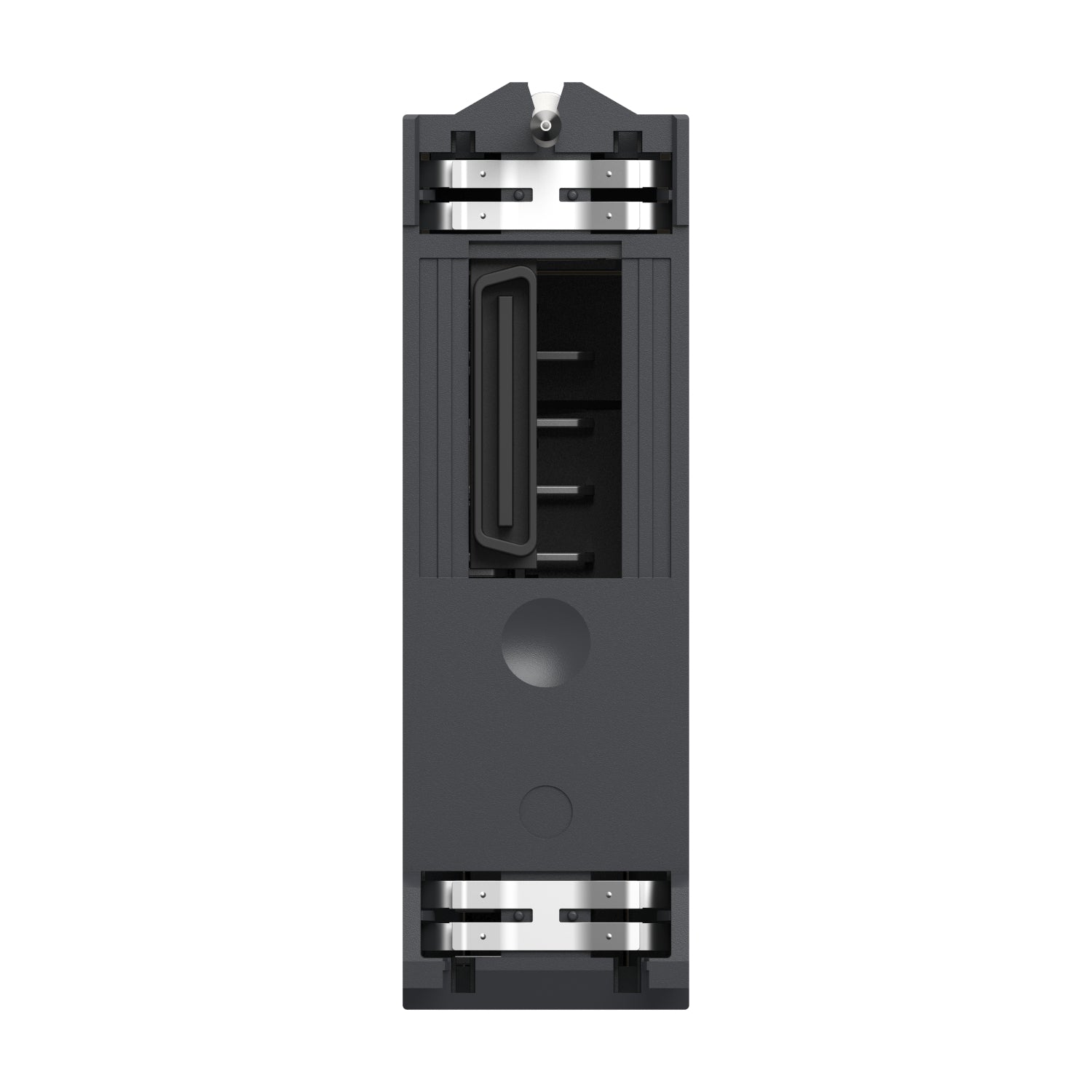

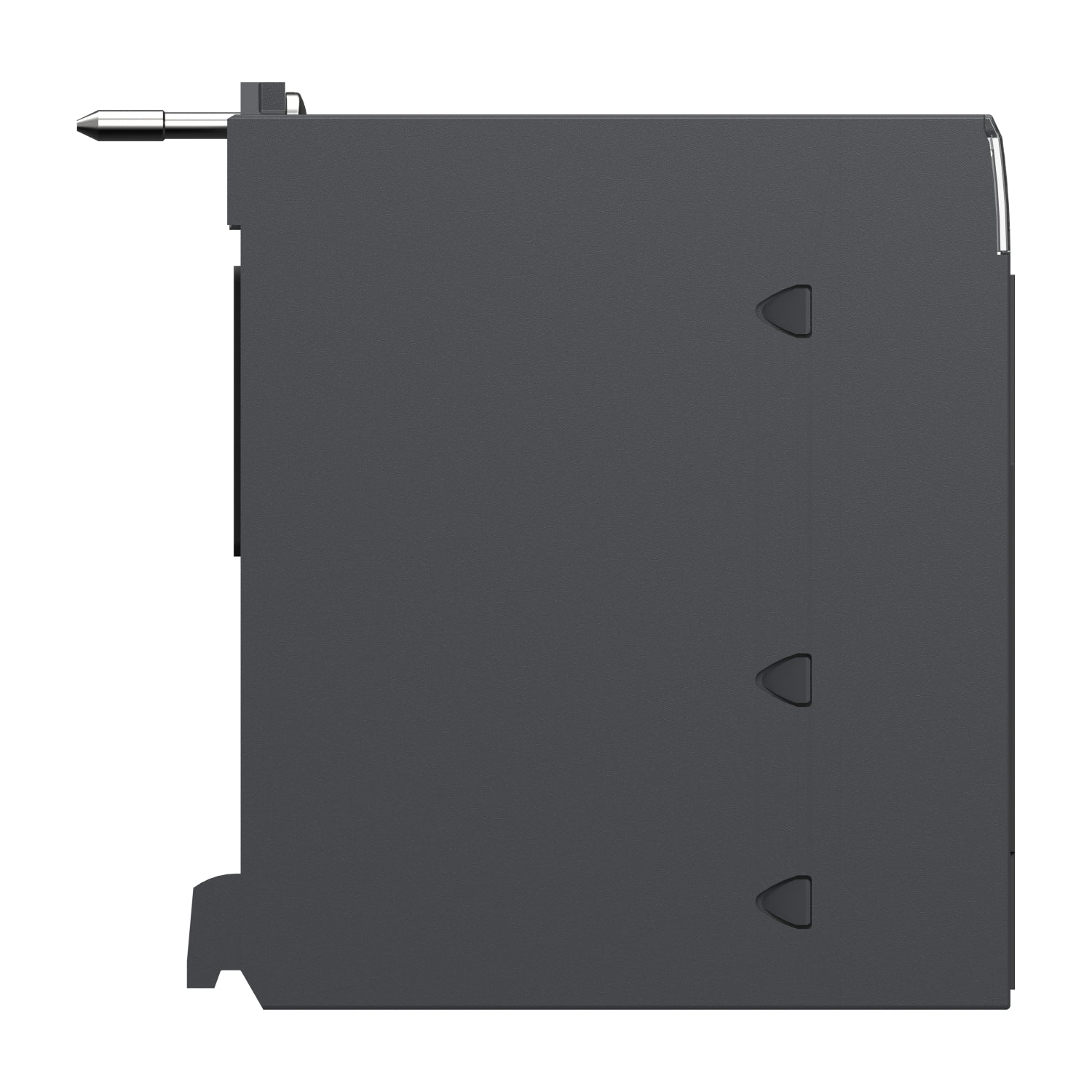

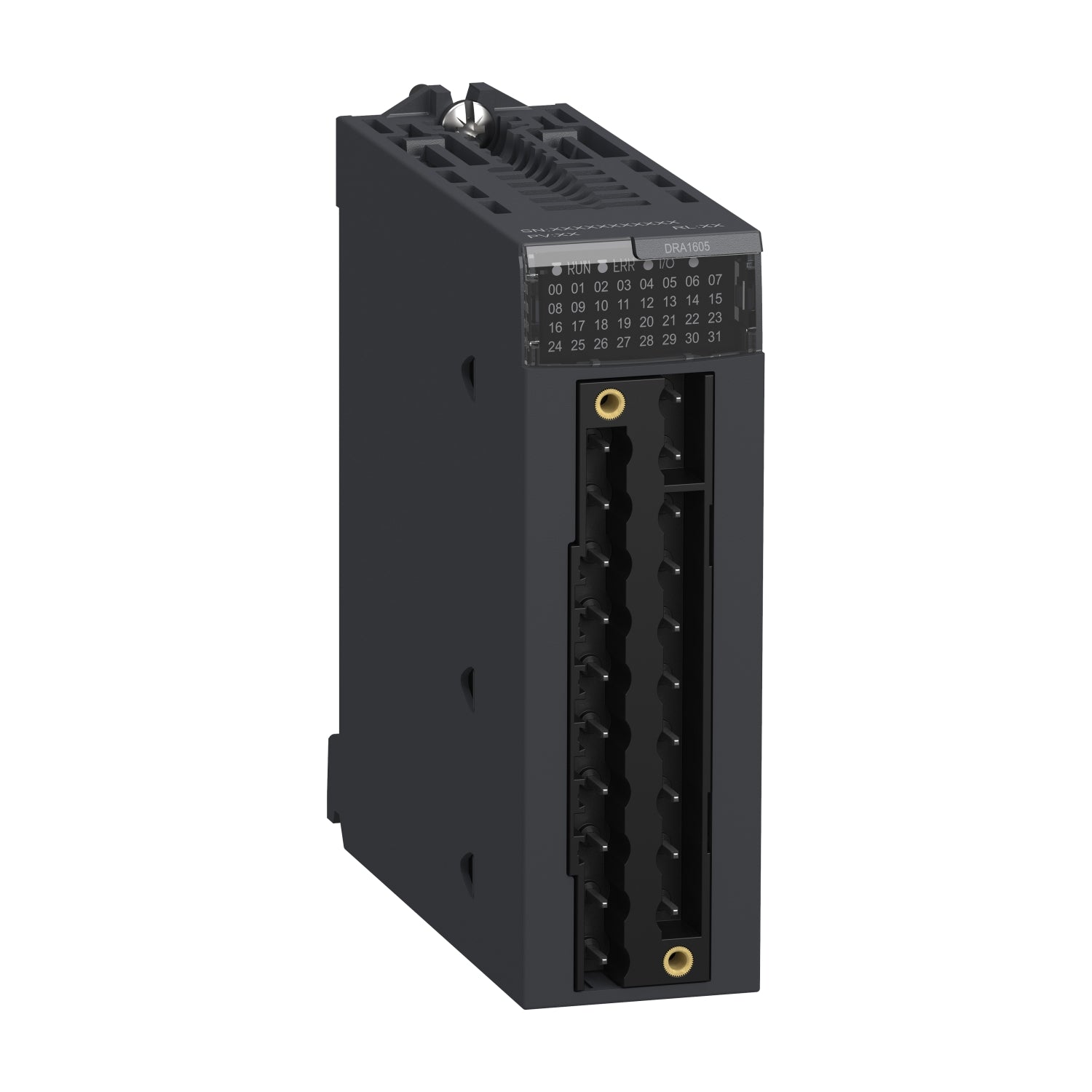

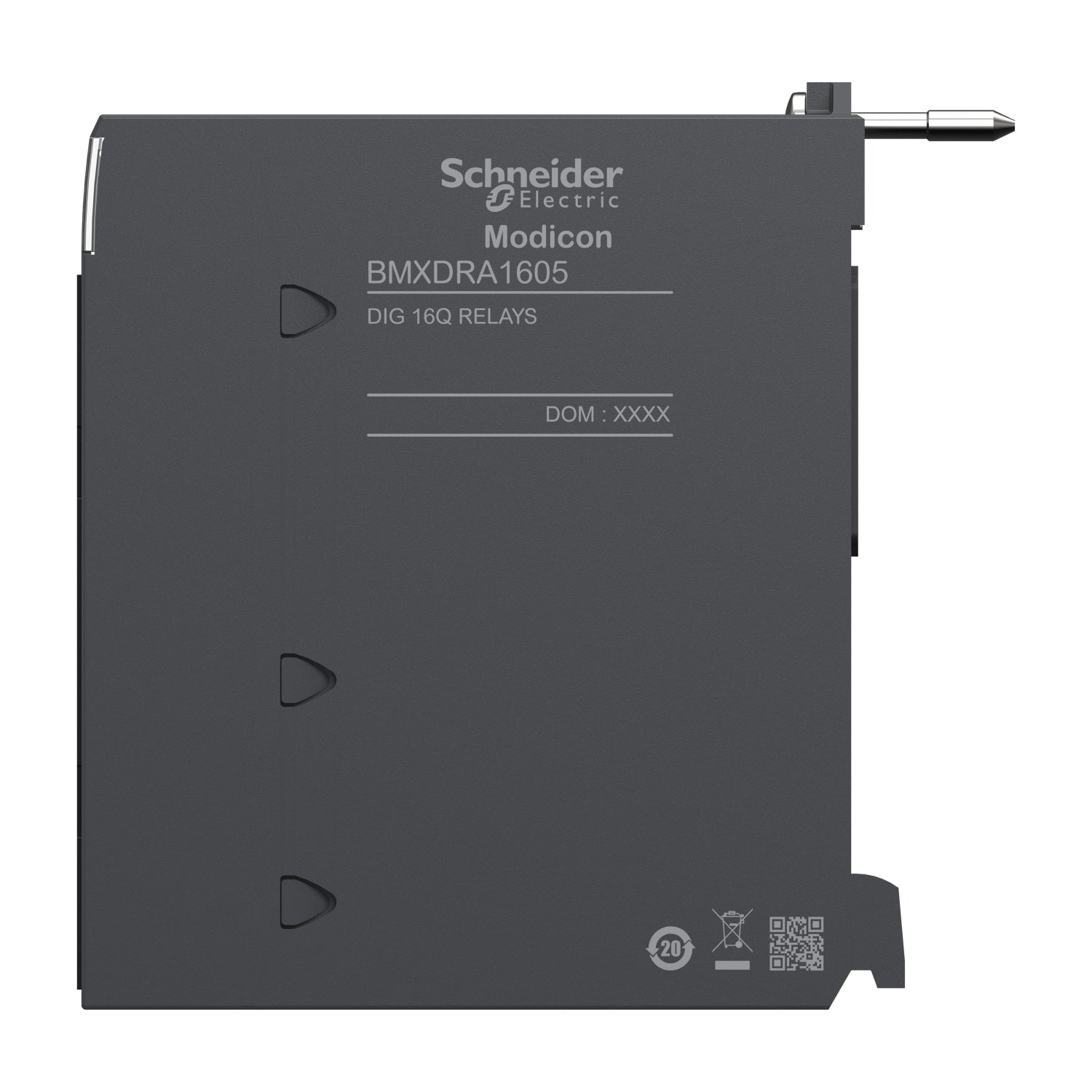

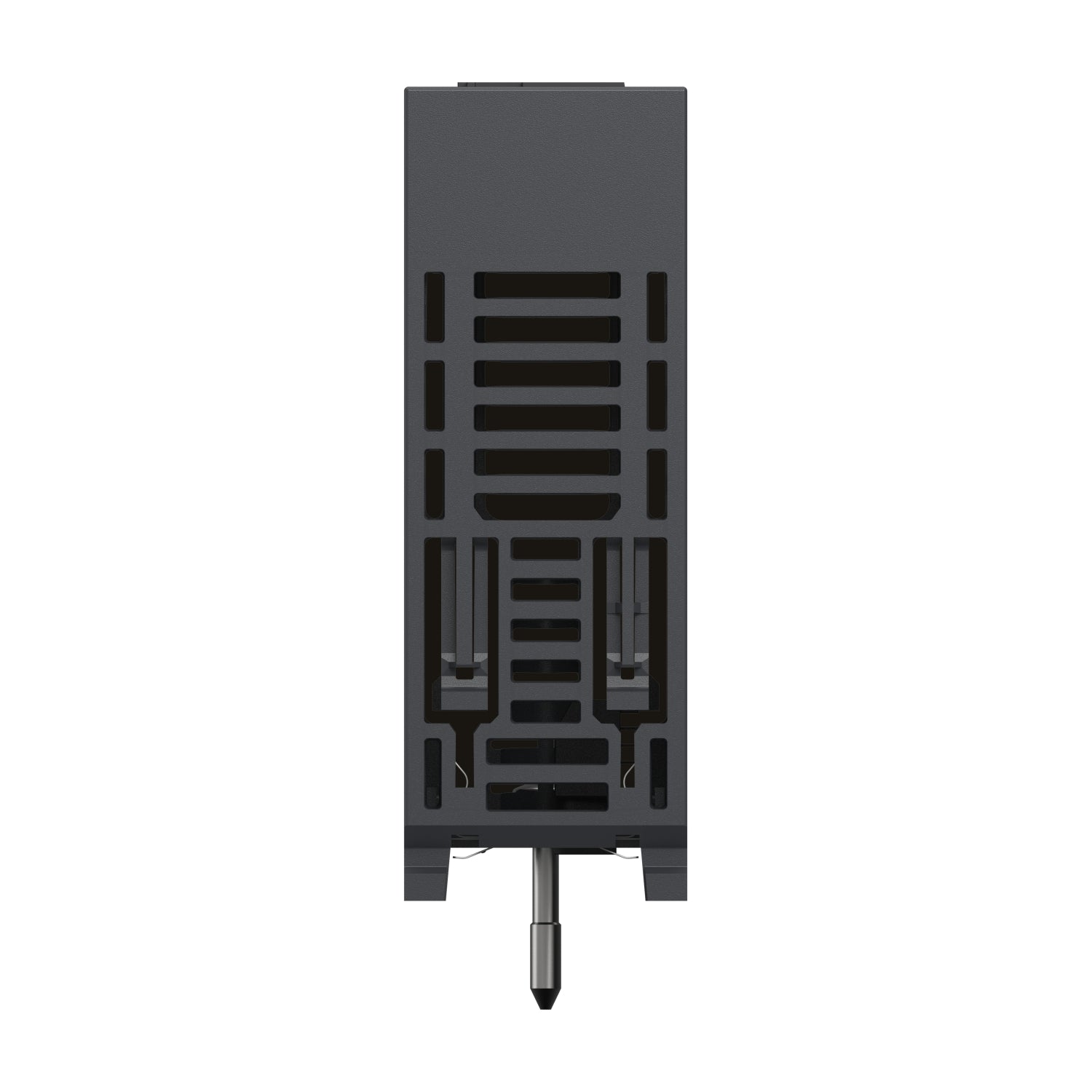

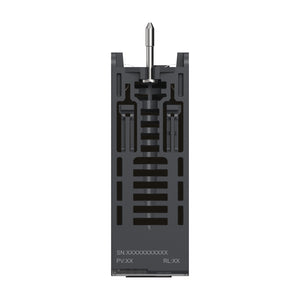

Product Description P/N: BMXDRA1605

Description / Specifications

Description

The BMXDRA1605 is a discrete output module from the Modicon X80 range, designed to provide reliable control over various output devices in industrial automation systems. With 16 discrete outputs in relay configuration, this module can handle a wide range of applications that demand precise and efficient output control.



Technical Specifications



Brand Schneider Electric
Part Number BMXDRA1605
Range Modicon X80
Component Discrete output
Discrete output 16 conforming to EN/IEC 61131-2
Output type Relay
Out Voltage 24 V 19...30 V DC 240 V 19…264 V AC
Insulation resistance > 10 MOhm 500 V DC
Max power dissipation 3 W
MTBF reliability 1357810 H
Minimum switching current 1 mA 5 V DC
Status LED 1 LED (green)RUN: 1 LED per channel (green)channel diagnostic: 1 LED (red)ERR: 1 LED (red)I/O:
Protection IP20
Certification CE Merchant Navy EAC RCM UL CSA
Standards EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 EN/IEC 61131-2
Vibration resistance 3 gn
Relative humidity 5…95 % at 55 °C without condensation
Shock resistance 30 gn
Operating altitude 0...2000 m 2000...5000 m with derating factor





Information About BMXDRA1605


The BMXDRA1605 offers 16 discrete outputs, conforming to EN/IEC 61131-2 standards. These outputs are relay-based, allowing them to handle a broad range of loads and voltages. The module supports two distinct voltage options: 24 V DC with a range of 19 to 30 V DC and 24 to 240 V AC with a range of 19 to 264 V AC. This flexibility in voltage options makes the module suitable for various output devices and applications.

The module is rated with a conventional free air thermal current (Ith) of 2 A, enabling it to handle significant electrical loads without overheating. The insulation resistance of over 10 MOhm at 500 V DC ensures reliable isolation between channels and the external circuit, minimizing the risk of electrical interference.

The BMXDRA1605 is designed to offer robust protection for both the module and connected devices. It features output overload protection, requiring the use of a fast-blow fuse per channel or group of channels. For overvoltage protection in DC outputs, discharge diodes are utilized, while RC circuits are employed for AC outputs. Surge limiters using ZNO technology are employed for additional protection in AC outputs.

With an activation response time of less than 8 ms and a deactivation response time of less than 10 ms, the BMXDRA1605 ensures quick and precise output control. Despite its high performance, the module maintains low current consumption of just 79 mA at 3.3 V DC, contributing to energy efficiency in the overall system.

The BMXDRA1605 boasts an impressive Mean Time Between Failures (MTBF) reliability of 1,357,810 hours, reflecting its robust design and durability. This high reliability ensures that the module can perform consistently and reliably in demanding industrial environments, reducing downtime and maintenance costs.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The BMXDRA1605 is a discrete output module from the Modicon X80 range, designed to provide reliable control over various output devices in industrial automation systems. With 16 discrete outputs in relay configuration, this module can handle a wide range of applications that demand precise and efficient output control.



Technical Specifications



Brand Schneider Electric
Part Number BMXDRA1605
Range Modicon X80
Component Discrete output
Discrete output 16 conforming to EN/IEC 61131-2
Output type Relay
Out Voltage 24 V 19...30 V DC 240 V 19…264 V AC
Insulation resistance > 10 MOhm 500 V DC
Max power dissipation 3 W
MTBF reliability 1357810 H
Minimum switching current 1 mA 5 V DC
Status LED 1 LED (green)RUN: 1 LED per channel (green)channel diagnostic: 1 LED (red)ERR: 1 LED (red)I/O:
Protection IP20
Certification CE Merchant Navy EAC RCM UL CSA
Standards EN/IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 EN/IEC 61131-2
Vibration resistance 3 gn
Relative humidity 5…95 % at 55 °C without condensation
Shock resistance 30 gn
Operating altitude 0...2000 m 2000...5000 m with derating factor





Information About BMXDRA1605


The BMXDRA1605 offers 16 discrete outputs, conforming to EN/IEC 61131-2 standards. These outputs are relay-based, allowing them to handle a broad range of loads and voltages. The module supports two distinct voltage options: 24 V DC with a range of 19 to 30 V DC and 24 to 240 V AC with a range of 19 to 264 V AC. This flexibility in voltage options makes the module suitable for various output devices and applications.

The module is rated with a conventional free air thermal current (Ith) of 2 A, enabling it to handle significant electrical loads without overheating. The insulation resistance of over 10 MOhm at 500 V DC ensures reliable isolation between channels and the external circuit, minimizing the risk of electrical interference.

The BMXDRA1605 is designed to offer robust protection for both the module and connected devices. It features output overload protection, requiring the use of a fast-blow fuse per channel or group of channels. For overvoltage protection in DC outputs, discharge diodes are utilized, while RC circuits are employed for AC outputs. Surge limiters using ZNO technology are employed for additional protection in AC outputs.

With an activation response time of less than 8 ms and a deactivation response time of less than 10 ms, the BMXDRA1605 ensures quick and precise output control. Despite its high performance, the module maintains low current consumption of just 79 mA at 3.3 V DC, contributing to energy efficiency in the overall system.

The BMXDRA1605 boasts an impressive Mean Time Between Failures (MTBF) reliability of 1,357,810 hours, reflecting its robust design and durability. This high reliability ensures that the module can perform consistently and reliably in demanding industrial environments, reducing downtime and maintenance costs.
