BMXNOM0200 | Schneider Electric Communication module

Description

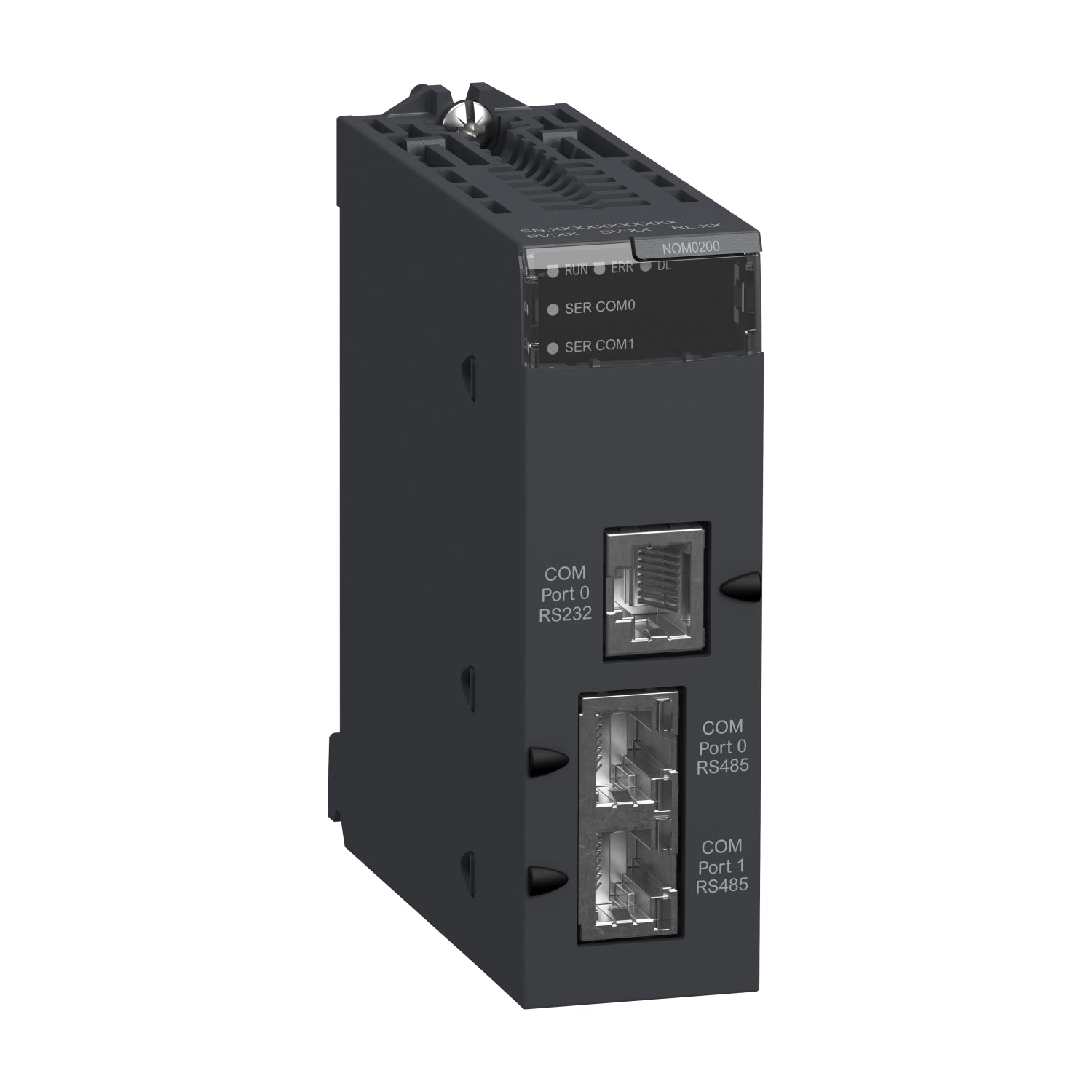

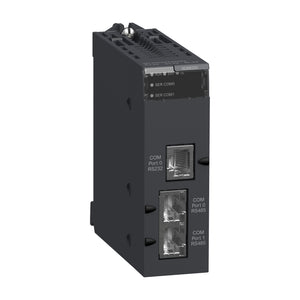

The BMXNOM0200 is a communication module within the Modicon X80 series, designed for use with Modicon M580 and M340 Programmable Automation Controllers (PAC). It features 2 RS-485/232 ports capable of operating in Modbus and character mode. This module is classified as an RTU module with a current consumption of 80mA at 24V DC, powered internally.

It offers robust construction and utilizes cutting-edge technology, providing reliability and high performance. Integrated connections include RS232 RJ45 at 115.2kbps and RS485 RJ45 at 57.6kbps. The module is rated IP20 and weighs 0.23kg, suitable for medium to large process applications.

Technical Specifications

Information About BMXNOM0200

The BMXNOM0200 is a communication module belonging to the Modicon X80 range, a standardized platform of modules designed for use with Modicon M580 and M340 Programmable Automation Controllers (PAC). This module facilitates communication with other devices and systems and features 2 RS-485/232 ports compatible with Modbus and character mode protocols.

Operating as an RTU (Remote Terminal Unit) module, it draws a current of 80mA at 24V DC, utilizing an internal power supply within the rack. Engineered with robustness and high-quality components, it incorporates state-of-the-art technology to ensure reliable performance.

Integrated connections include RS232 RJ45 at a baud rate of 115.2kbps and RS485 RJ45 at a baud rate of 57.6kbps. The module carries an IP20 rating, indicating protection against solid objects and limited ingress of water.

With a weight of 0.23kg, the BMXNOM0200 is suitable for medium to large process applications, providing communication capabilities essential for industrial automation tasks. Certified by CE and UL, it complies with standards such as UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201, ensuring adherence to safety and performance requirements.
