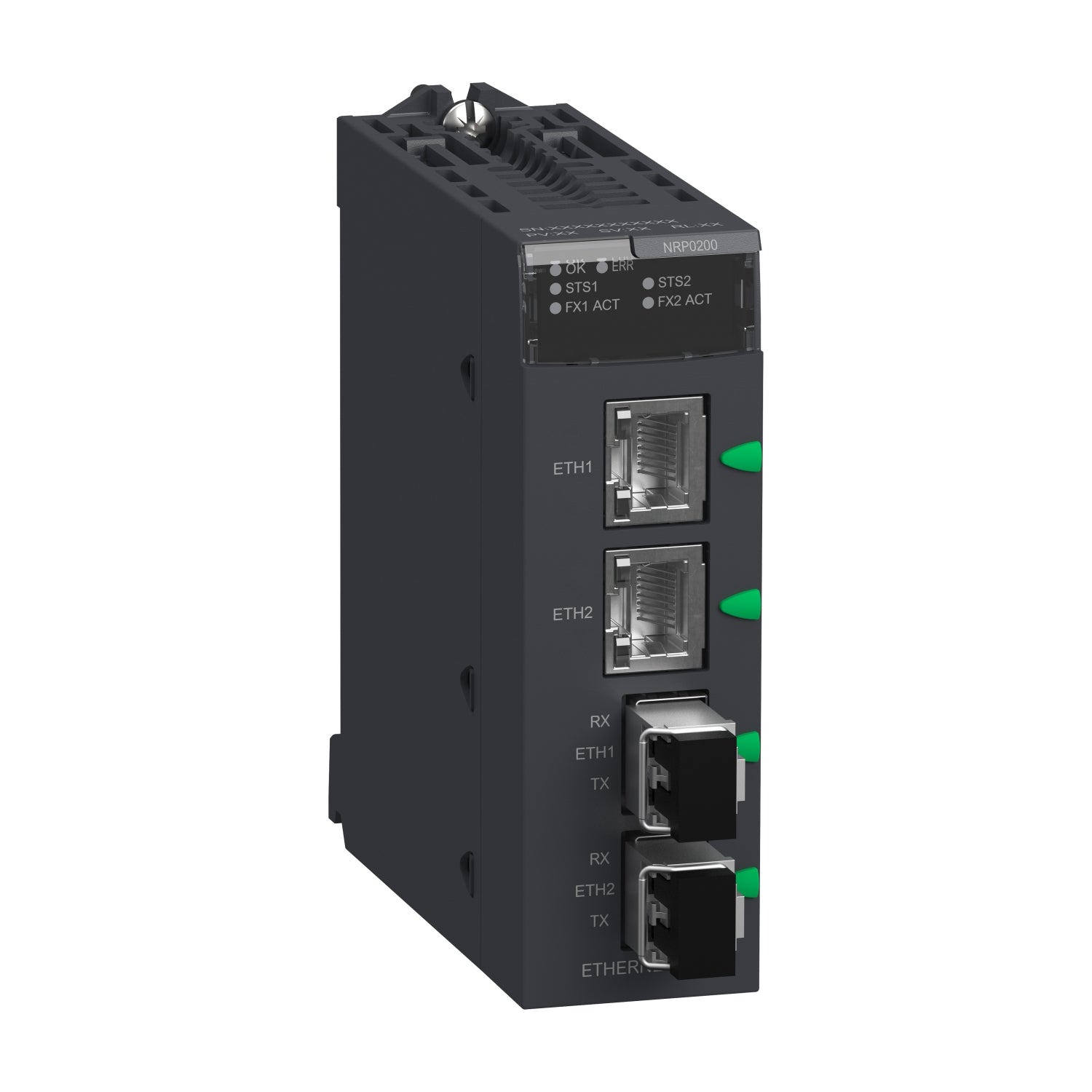

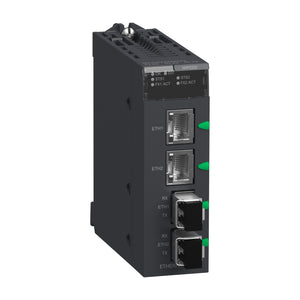

Part #: BMXNRP0200 Manufactured by: Schneider Electric
Regular price
$339.00
Sale price
$339.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The BMXNRP0200 is a fiber converter module belonging to the Modicon X80 range, tailored for integration with Modicon M580 ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: BMXNRP0200
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: BMXNRP0200

Description / Specifications

Description


The BMXNRP0200 is a fiber converter module within the Modicon X80 range, designed as part of a common platform of modules compatible with Modicon M580 and M340 Programmable Automation Controllers (PAC). Supporting multimode and hot swap functionality, it serves as a fiber optic repeater with a current rating of 200mA and a rated voltage of 24V, operating at a wavelength of 1310nm.

Equipped with 2 RJ45 ports with 100BASE-TX capability and 2 fiber optic ports with 100BASE-FX capability, this product offers Ethernet connectivity with an operating distance of 0m to 2000m. It holds an IP20 rating for protection against solid objects and is compact, measuring 32mm (width) x 86mm (depth) x 100mm (height) and weighing 203g.


Technical Specifications



Part #

BMXNRP0200

Manufacturer

SCHNEIDER ELECTRIC

Brand

MODICON

Category

Integrated Circuits

Subcategory

Power Supply/Voltage Converter PC Board Mount

Range of product

Modicon X80

Product or component type

Fibre optic repeater

Optic fiber type

Multi mode

Rated voltage

24 V

Current consumption

140 mA typical / 200 mA maximum

Function available

Hot swap

Wavelength

1310 nm

Operating distance

0...2000 m

Attenuation

-23.5…-14 dB (50/125 µm)

Attenuation

-20…-14 dB (62.5/125 µm)

Rise/fall time

3 ns

Receiver sensitivity

- 31...- 14 dBm

Marking

CE

Width

32 mm

Height

100 mm

Depth

86 mm

Net weight

203 g

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…70 °C

Relative humidity

0…95 %

IP degree of protection

IP20

Operating altitude

0...4000 m


Information About BMXNRP0200


The BMXNRP0200 is a fiber converter module within the Modicon X80 range, a standardized platform of modules designed for integration with Modicon M580 and M340 Programmable Automation Controllers (PAC). Supporting multimode operation and featuring a hot swap function, this fiber converter serves as a fiber optic repeater with a current rating of 200mA and a rated voltage of 24V. It operates at a wavelength of 1310nm and is engineered with robust construction and advanced technology.

Equipped with 2 RJ45 ports supporting 100BASE-TX and 2 fiber optic ports supporting 100BASE-FX Ethernet connectivity, the fiber converter provides an operating distance ranging from 0m to 2000m. It holds an IP20 rating, indicating protection against solid objects, and features dimensions of 32mm (width) x 86mm (depth) x 100mm (height), weighing 203g. Suited for medium to large process applications, it meets stringent industry standards including CE, Merchant Navy, GOST, and C-Tick, while conforming to EN 61131-2, EN 61000-6-4, EN 61000-6-2, and EN 61010-2-201 standards.

Compatible with the entire range of Modicon controllers, the fiber converter module facilitates seamless integration within automation systems. It is typically linked to CRA drop adapters using Ethernet Interlink cables. The Modicon X80 platform, characterized by its interchangeable modules, reduces maintenance and training costs by enabling the use of the same spare parts across various PACs. This standardized approach streamlines operations and enhances system reliability.


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
