BMXP342020 | Schneider Electric IO Processor Module
- Regular price
- $632.00
- Sale price
- $632.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BMXP342020
Description
The Schneider Electric BMXP342020 IO Processor Module, belonging to the Modicon M340 series, is a high-performance processor module designed for Programmable Automation Controllers (PAC). It supports up to 4 racks, accommodating 1024 I/O ports and featuring a memory capacity of 4096 KB.

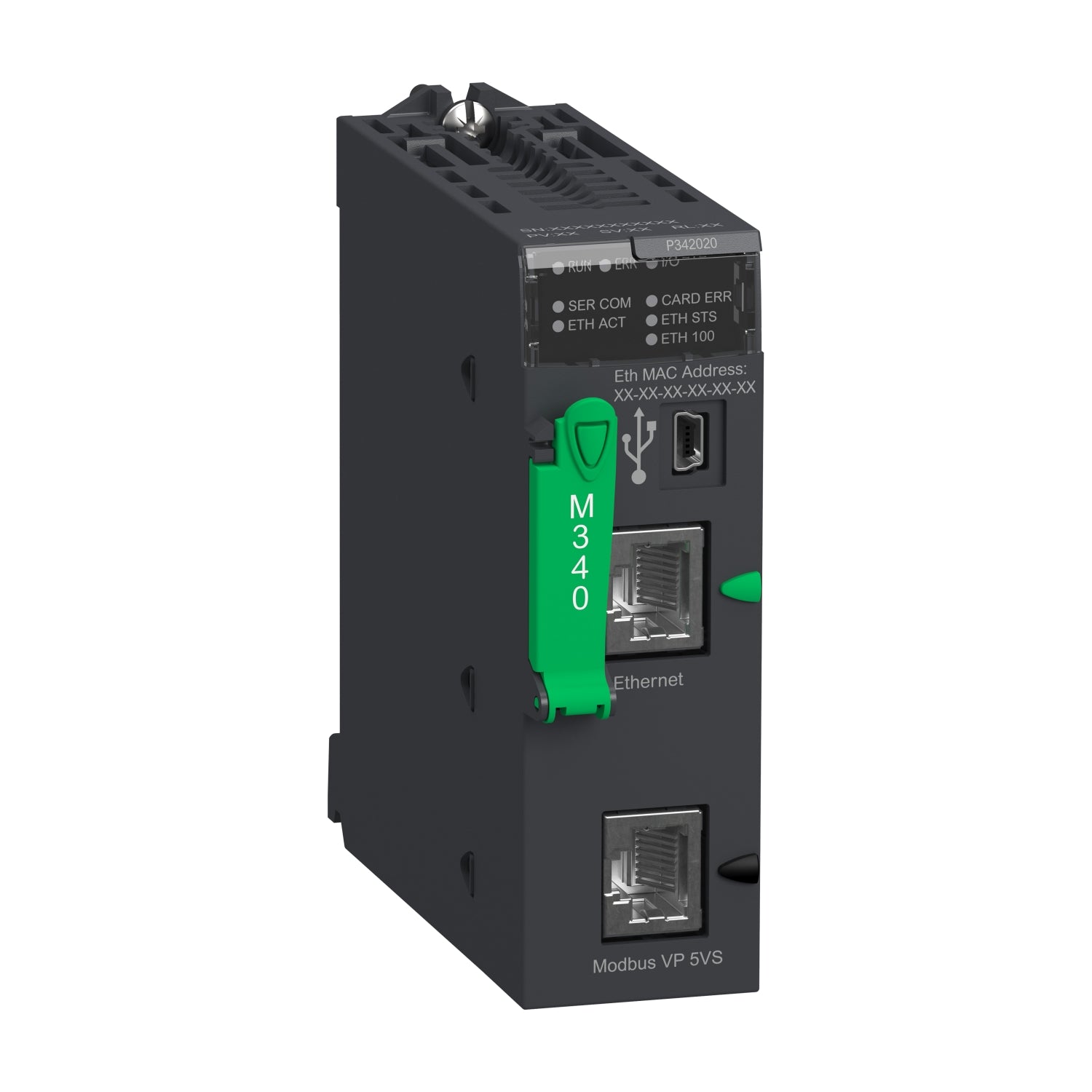

The front panel of the module includes a safety screw for securing it in its slot, an LED display block with 8 LEDs, a mini B USB connector for programming terminal connectivity, and a slot for a flash memory card. Additionally, it features an RJ45 connector for Ethernet Modbus/TCP network connection and another RJ45 connector for Modbus serial or character mode link (RS 232C/RS 485, 2-wire, non-isolated).
Technical Specifications
|
Part # |
BMXP342020 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
MODICON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
PLC Module/Rack |
|
Range of product |
Modicon M340 automation platform |
|
Product or component type |
Processor module |
|
Concept |
CANopen, Transparent Ready |
|
Number of racks |
4 |
|
Number of slots |
11 |
|
Discrete I/O processor capacity |
704 I/O single-rack configuration |
|
Number of application specific channels |
36 |
|
Monitoring |
Event counters, Modbus System overhead |
|
Current consumption |
95 mA 24 V DC |
|
Supply |
Internal power supply via rack |
|
Marking |
CE |
|
Ambient air temperature for operation |
0...60 °C |
|
Relative humidity |
10...95 % without condensation |
|
IP degree of protection |
IP20 |
|
Protective treatment |
TC |
Information About BMXP342020
The Schneider Electric BMXP342020 IO Processor Module belongs to the Modicon M340 range, a series of Programmable Automation Controllers (PAC). It supports a maximum of 4 racks and offers 1024 I/O capabilities with a memory capacity of 4096 KB.
Featuring a front panel equipped with various components, including a safety screw for securing the module, an 8-LED display block, and a mini B USB connector for programming terminal connection, it also includes a slot for a flash memory card.
Additionally, it is outfitted with RJ45 connectors for Ethernet Modbus/TCP network and Modbus serial link, facilitating communication via RS 232C/RS 485, 2-wire, non-isolated modes.
Supplied with an SD (Secure Digital) type flash memory card as standard, the processor automatically backs up data stored in the internal RAM, program, symbols and comments area, and constants area when the PLC is powered off. Data restoration upon power restoration is seamless for the user.
With a weight of 0.205kg, this processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC) and is available in two package types: PCE and SO2.
Compact in shape, the Modicon M340 offers flexibility and integrated functions, providing plug-and-work solutions for both Schneider Electric and third-party devices.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
