BMXXBE1000 | Schneider Electric Backplane expander, Modicon M340, for multiracks configuration
BMXXBE1000 | Schneider Electric Backplane expander, Modicon M340, for multiracks configuration
Part #: BMXXBE1000 Manufactured by: Schneider Electric

BMXXBE1000 | Schneider Electric Backplane expander, Modicon M340, for multiracks configuration

Regular price
$299.00
Sale price
$299.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
X-bus rack expansion module - Schneider Electric / Modicon (Modicon X80 series) - DIN rail (35mm) or pnl. mounting - with ...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: BMXXBE1000
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
BMXXBE1000 | Schneider Electric Backplane expander, Modicon M340, for multiracks configuration
    BMXXBE1000 | Schneider Electric Backplane expander, Modicon M340, for multiracks configuration
BMXXBE1000 | Schneider Electric Backplane expander, Modicon M340, for multiracks configuration
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: BMXXBE1000

Description / Specifications

Description

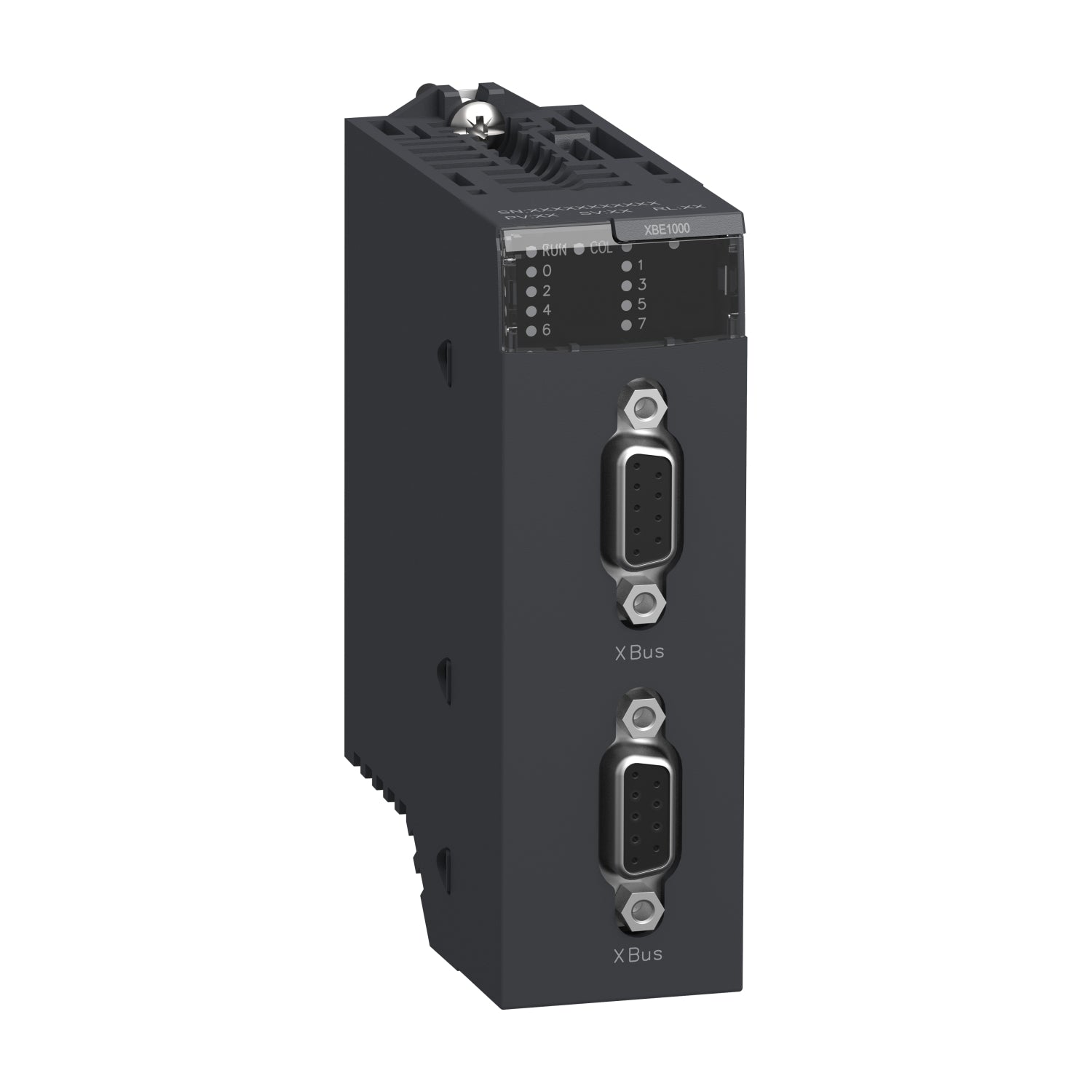

The BMXXBE1000 is a backplane expander designed for use with the Modicon M340 automation platform, providing an efficient solution for multirack configurations. As an extension accessory, it serves as a backplane, expanding the connectivity options and capabilities of the automation system. This backplane expander is compatible with several products, including the BMXXBP0600, BMXXBP0400, BMXXBP0800, and BMXXBP1200, allowing for seamless integration into existing setups.


Technical Specifications


Brand Schneider Electric
Part Number BMXXBE1000
Category PLCs/Machine Control
Subcategory PLC Module/Rack
Type Backplane Models
Function Backplane Extender
Power supply 24/3.3VDC
Connectors 2 FEMALE 9PIN D-SUB
Indicators LED
Protection IP20
Rating 160/22MA
Display 1 green LED (operating status; RUN) bus
1 red LED (collision error (COL) rack)
4 green LEDs (rack adresses status)
Connection type 2 x D-Sub connectors
Mounting mode DIN rail (35mm) or pnl. mounting
Ambient air temperature for operation +32...+140°F / 0...+60 °C
Current consumption 22mA (at 3.3Vdc)
160mA (at 24Vdc)
Technical compatibility with Modicon M340 PLCs
Modicon M580 PLCs




Information About BMXXBE1000

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800 and BMXXBP1200 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Function
The main range of the product is the Modicon M340 automation platform, known for its reliability and performance. By adding the BMXXBE1000 backplane expander to the system, users can expand the capacity of their multi-racks configurations, enabling the integration of additional modules and enhancing the overall functionality of the automation platform.

Features
Featuring two female connectors SUB-D 9, the BMXXBE1000 offers convenient electrical connections for easy installation and setup. It also provides local signaling through a green LED for the operating status (RUN) bus, a red LED for collision error (COL) rack, and four green LEDs for rack address status, allowing users to monitor the system's performance and identify any potential issues.

Specifications
In terms of environmental specifications, the BMXXBE1000 has an IP20 degree of protection, ensuring it is protected against solid objects and providing a safe operating environment. It is designed to operate within an ambient air temperature range of 0 to 60 °C and can withstand relative humidity levels of 10 to 95% without condensation.

Compliance
The product complies with various directives and standards, including the low voltage directive (2014/35/EU), electromagnetic compatibility (2014/30/EU), EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, and more. It has obtained certifications such as CE, UL, CSA, RCM, and Merchant Navy, ensuring its compliance with industry regulations and standards.

Environmental Specifications
In terms of sustainability, the BMXXBE1000 is categorized as a Green Premium product, demonstrating its commitment to environmental responsibility. It is REACh compliant, free of Substances of Very High Concern (SVHC), and complies with the EU RoHS directive, meaning it is free from mercury. Additionally, the product has relevant environmental disclosures, including its Product Environmental Profile, Circularity Profile, and End of Life Information.

In conclusion, the BMXXBE1000 backplane expander is a reliable and versatile accessory designed for the Modicon M340 automation platform. With its compatibility with various products and its ability to support multirack configurations, it expands the capabilities of the automation system and provides users with enhanced connectivity options. With its robust design, compliance with industry standards, and commitment to sustainability, the BMXXBE1000 is a valuable component for any automation setup requiring expanded backplane functionality.




Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The BMXXBE1000 is a backplane expander designed for use with the Modicon M340 automation platform, providing an efficient solution for multirack configurations. As an extension accessory, it serves as a backplane, expanding the connectivity options and capabilities of the automation system. This backplane expander is compatible with several products, including the BMXXBP0600, BMXXBP0400, BMXXBP0800, and BMXXBP1200, allowing for seamless integration into existing setups.


Technical Specifications


Brand Schneider Electric
Part Number BMXXBE1000
Category PLCs/Machine Control
Subcategory PLC Module/Rack
Type Backplane Models
Function Backplane Extender
Power supply 24/3.3VDC
Connectors 2 FEMALE 9PIN D-SUB
Indicators LED
Protection IP20
Rating 160/22MA
Display 1 green LED (operating status; RUN) bus
1 red LED (collision error (COL) rack)
4 green LEDs (rack adresses status)
Connection type 2 x D-Sub connectors
Mounting mode DIN rail (35mm) or pnl. mounting
Ambient air temperature for operation +32...+140°F / 0...+60 °C
Current consumption 22mA (at 3.3Vdc)
160mA (at 24Vdc)
Technical compatibility with Modicon M340 PLCs
Modicon M580 PLCs




Information About BMXXBE1000

This product is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This backplane expander is an extension accessory of Modicon M580 and M340 Programmable Automation Controllers (PAC). It is an Ethernet backplane rack with a current of 160mA at 24V DC and 22mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2 x 9-way SUB-D female connectors for electrical connection. It is an IP20 rated product. It is suitable for medium to large process applications and expander is It is suitable for multiracks configuration. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This backplane expander is compatible with Modicon M340 BMXXBP0600, BMXXBP0400, BMXXBP0800 and BMXXBP1200 backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Function
The main range of the product is the Modicon M340 automation platform, known for its reliability and performance. By adding the BMXXBE1000 backplane expander to the system, users can expand the capacity of their multi-racks configurations, enabling the integration of additional modules and enhancing the overall functionality of the automation platform.

Features
Featuring two female connectors SUB-D 9, the BMXXBE1000 offers convenient electrical connections for easy installation and setup. It also provides local signaling through a green LED for the operating status (RUN) bus, a red LED for collision error (COL) rack, and four green LEDs for rack address status, allowing users to monitor the system's performance and identify any potential issues.

Specifications
In terms of environmental specifications, the BMXXBE1000 has an IP20 degree of protection, ensuring it is protected against solid objects and providing a safe operating environment. It is designed to operate within an ambient air temperature range of 0 to 60 °C and can withstand relative humidity levels of 10 to 95% without condensation.

Compliance
The product complies with various directives and standards, including the low voltage directive (2014/35/EU), electromagnetic compatibility (2014/30/EU), EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10, EN/IEC 61000-6-5, EN/IEC 61850-3, and more. It has obtained certifications such as CE, UL, CSA, RCM, and Merchant Navy, ensuring its compliance with industry regulations and standards.

Environmental Specifications
In terms of sustainability, the BMXXBE1000 is categorized as a Green Premium product, demonstrating its commitment to environmental responsibility. It is REACh compliant, free of Substances of Very High Concern (SVHC), and complies with the EU RoHS directive, meaning it is free from mercury. Additionally, the product has relevant environmental disclosures, including its Product Environmental Profile, Circularity Profile, and End of Life Information.

In conclusion, the BMXXBE1000 backplane expander is a reliable and versatile accessory designed for the Modicon M340 automation platform. With its compatibility with various products and its ability to support multirack configurations, it expands the capabilities of the automation system and provides users with enhanced connectivity options. With its robust design, compliance with industry standards, and commitment to sustainability, the BMXXBE1000 is a valuable component for any automation setup requiring expanded backplane functionality.




Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
