Product Description P/N: BMXXBP1200

Description / Specifications

Description

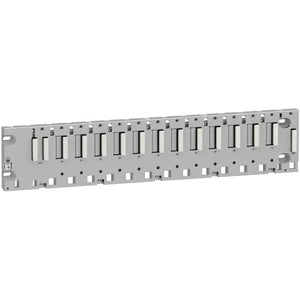

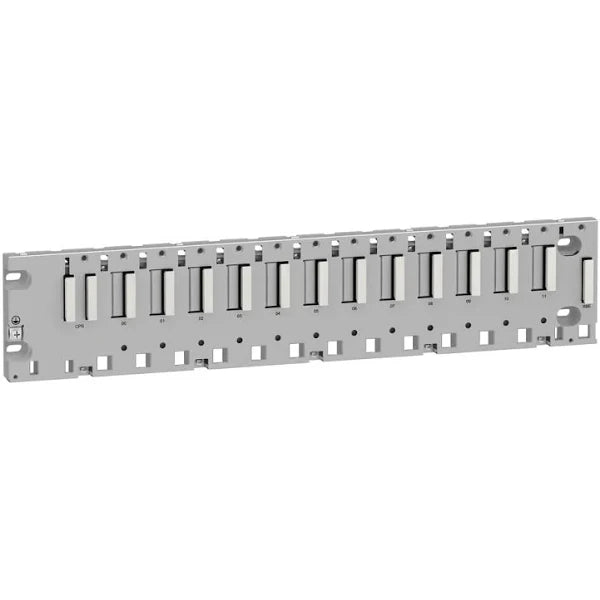

The Schneider Electric BMXXBP1200 is a versatile rack designed for the Modicon M340 automation platform. With 12 slots, it supports panel, plate, or DIN rail mounting options, providing flexibility in installation. This rack ensures efficient organization and expansion capabilities for M340 modules in industrial automation setups.



Technical Specifications



Brand Schneider Electric
Part Number BMXXBP1200
Category PLCs/Machine Control
Subcategory PLC Module/Rack
Type Backplane Models
Slots 12 bus X
Compatibility I/O module BMXP34 processor Specific application module BMXCPS power supply
Protection IP20
Power consumption 0.74 W
Ambient temp 0…60 °C
Connection 1 connector (XBE) expansion module
Protective treatment TC
Mounting By 4 screws - diameter: 4.32…6.35 mm, mounting on panel By 4 M6 screws, mounting on plate
Relative humidity 10…95 % without condensation





Information About BMXXBP1200

The Schneider Electric BMXXBP1200 is an essential component within the main ring of a typical M580 system. As part of the Altivar 71 range, this local rack provides the critical components required for efficient motor control and communication in complex, high-power machines.

Key Components and Configuration:
The BMXXBP1200 local rack houses the CPU, a power supply, and up to six Ethernet communication modules. These modules may include up to three BMENOC0301/BMENOC0311 modules, BMENOS0300 network option switch modules, and up to two BMENOC0321 control network modules. This configuration allows for seamless communication between devices and efficient data exchange within the system.

Main and Extended Racks:
The local rack consists of a main rack and can accommodate up to seven full extended racks, which can contain up to 14 Premium half racks, depending on the specific CPU used. The main rack is a mandatory component in the M580 architecture, while the extended racks are optional but beneficial for expanding the system's capabilities. The main rack acts as the core unit and the extended racks are considered part of the local rack when added.

Module Compatibility:
The BMXXBP1200 local rack supports Modicon X80 I/O modules on either BMEXBP••00 Ethernet or BMXXBP0•00 X Bus backplanes. Additionally, it is compatible with Modicon eX80 modules, such as the PMESWT0100 and BMEAH•0•12 modules, which can be installed specifically on BMEXBP••00 Ethernet backplanes. For enhanced versatility, the BMEXBP1202 backplanes support both Ethernet and X Bus communications, allowing the installation of both Modicon eX80 and Modicon X80 modules.

Advanced Control and Energy Adaptation:
This local rack is equipped with an Energy Adaptation (ENA) system, which effectively handles unbalanced loads within the system. This feature ensures stable and consistent performance, even when dealing with dynamic and uneven load conditions. Additionally, the local rack supports Sensorless Flux Vector Control (SFVC), offering precise control over motor torque and speed without the need for external feedback sensors.

Integrated EMC Filter for Enhanced Performance:
The BMXXBP1200 local rack comes with an integrated Electromagnetic Compatibility (EMC) filter, which suppresses electromagnetic noise, maintaining smooth and reliable operation in environments with high electromagnetic interference. The integrated EMC filter ensures compliance with EMC standards, contributing to the system's overall robustness and efficiency.

Scalable and Expandable System:
The modular design of the BMXXBP1200 local rack allows for easy expansion and scalability. By adding extended racks, the system can accommodate more I/O modules, providing additional capabilities and enhancing system performance.

Conclusion:
The Schneider Electric BMXXBP1200 local rack is a crucial element in the M580 system, enabling seamless communication, precise motor control, and efficient energy adaptation. With its support for various I/O modules and advanced control features, this local rack caters to the complex needs of high-power machines in industrial applications. The integrated EMC filter and versatile module compatibility ensure reliable and robust performance, making the BMXXBP1200 an excellent choice for modern industrial automation systems.
