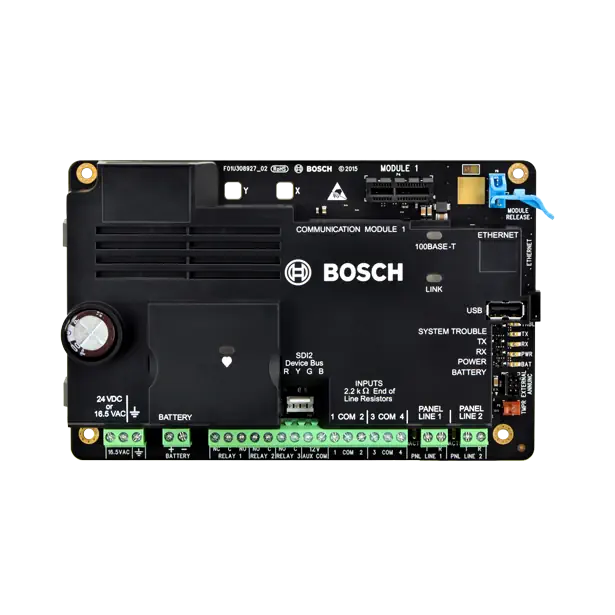

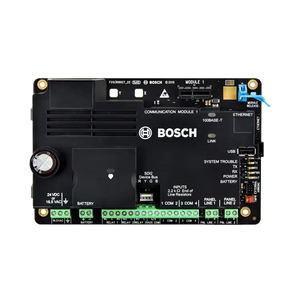

Bosch B465 Conettix Universal Dual Path Communicator
- Regular price
- $222.00
- Sale price
- $222.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: B465
Description
Bosch B465 is a Conettix Universal Dual Path Communicator designed to connect compatible fire and intrusion control panels to central monitoring systems through Ethernet/IP or an optional cellular communication path. It supports multiple legacy digital dialer formats and allows existing control panels to transmit alarm reports over modern IP-based communication infrastructure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire Alarm Systems |
| Part Number | B465 |
| Subcategory | Communication Modules |
| Product Type | Conettix Universal Dual Path Communicator |
| Communication | Ethernet/IP with optional cellular communication |
| Ethernet | 10BASE-T / 100BASE-TX |
| Network Connection | LAN, WAN, or Internet |
| Inputs | 4 onboard programmable inputs |
| Supported Formats | Contact ID, SIA, Pulse 3/1, Pulse 4/2, Modem II, Modem IIe, Modem IIIa2 |
| Compatible Receivers | D6600, D6100i, D6100IPv6 |
| Power Input | 16.5 VAC or 24 VDC |
| Operating Temperature | 0°C to +49°C |
| Relative Humidity | Up to 93% non-condensing |
| Dimensions | Approx. 111 × 175 × 38 mm |
| Weight | 0.34 kg |
Information About B465
The B465 is part of the Bosch Conettix communication platform and provides an interface between a control panel’s PSTN digital dialer or dry-contact inputs and a Conettix communication receiver. It supports Ethernet communication through 10BASE-T/100BASE-TX and can be expanded with compatible Bosch plug-in cellular communicators. The communicator supports reporting formats including Contact ID, SIA, Pulse 3/1, Pulse 4/2, Modem II, Modem IIe, and Modem IIIa2. Compatible receivers include Bosch D6600, D6100i, and D6100IPv6 Communication Receiver/Gateways.
Key Features:
- Dual-path communication: Supports Ethernet/IP and optional cellular communication paths.
- Fire and intrusion compatibility: Designed to interface with compatible fire and intrusion control panels.
- Ethernet interface: Provides 10BASE-T and 100BASE-TX network connectivity.
- Multiple reporting formats: Supports Contact ID, SIA, Pulse 3/1, Pulse 4/2, Modem II, IIe, and IIIa2.
- Four onboard inputs: Provides four programmable input points for system monitoring.
- Receiver compatibility: Communicates with Bosch Conettix D6600, D6100i, and D6100IPv6 receivers.
- Flexible power: Supports 16.5 VAC or 24 VDC power input with battery backup capability.
- Compact design: Measures approximately 111 × 175 × 38 mm for installation inside compatible enclosures.
The B465 delivers the reliability and communication flexibility required for professional fire and security alarm reporting applications.
Description
Bosch B465 is a Conettix Universal Dual Path Communicator designed to connect compatible fire and intrusion control panels to central monitoring systems through Ethernet/IP or an optional cellular communication path. It supports multiple legacy digital dialer formats and allows existing control panels to transmit alarm reports over modern IP-based communication infrastructure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire Alarm Systems |
| Part Number | B465 |
| Subcategory | Communication Modules |
| Product Type | Conettix Universal Dual Path Communicator |
| Communication | Ethernet/IP with optional cellular communication |
| Ethernet | 10BASE-T / 100BASE-TX |
| Network Connection | LAN, WAN, or Internet |
| Inputs | 4 onboard programmable inputs |
| Supported Formats | Contact ID, SIA, Pulse 3/1, Pulse 4/2, Modem II, Modem IIe, Modem IIIa2 |
| Compatible Receivers | D6600, D6100i, D6100IPv6 |
| Power Input | 16.5 VAC or 24 VDC |
| Operating Temperature | 0°C to +49°C |
| Relative Humidity | Up to 93% non-condensing |
| Dimensions | Approx. 111 × 175 × 38 mm |
| Weight | 0.34 kg |
Information About B465
The B465 is part of the Bosch Conettix communication platform and provides an interface between a control panel’s PSTN digital dialer or dry-contact inputs and a Conettix communication receiver. It supports Ethernet communication through 10BASE-T/100BASE-TX and can be expanded with compatible Bosch plug-in cellular communicators. The communicator supports reporting formats including Contact ID, SIA, Pulse 3/1, Pulse 4/2, Modem II, Modem IIe, and Modem IIIa2. Compatible receivers include Bosch D6600, D6100i, and D6100IPv6 Communication Receiver/Gateways.
Key Features:
- Dual-path communication: Supports Ethernet/IP and optional cellular communication paths.
- Fire and intrusion compatibility: Designed to interface with compatible fire and intrusion control panels.
- Ethernet interface: Provides 10BASE-T and 100BASE-TX network connectivity.
- Multiple reporting formats: Supports Contact ID, SIA, Pulse 3/1, Pulse 4/2, Modem II, IIe, and IIIa2.
- Four onboard inputs: Provides four programmable input points for system monitoring.
- Receiver compatibility: Communicates with Bosch Conettix D6600, D6100i, and D6100IPv6 receivers.
- Flexible power: Supports 16.5 VAC or 24 VDC power input with battery backup capability.
- Compact design: Measures approximately 111 × 175 × 38 mm for installation inside compatible enclosures.
The B465 delivers the reliability and communication flexibility required for professional fire and security alarm reporting applications.
