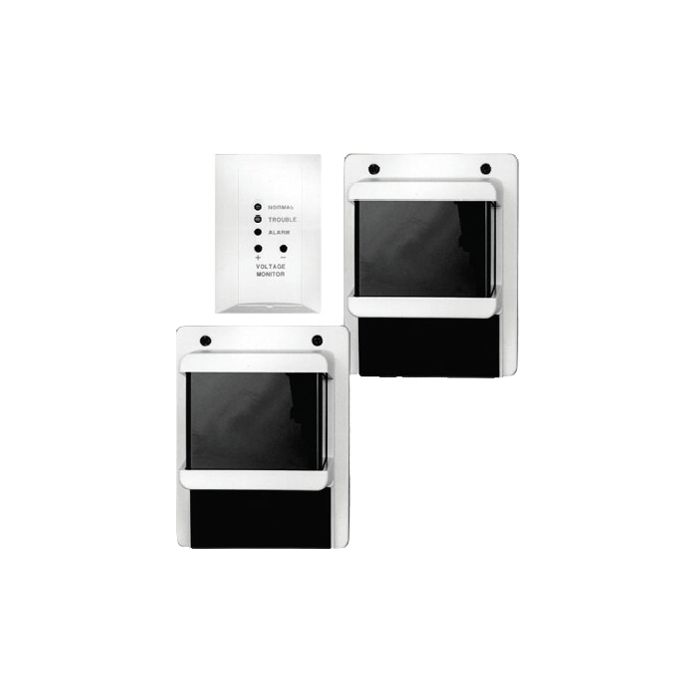

Bosch D296 Projected Beam Smoke Detector 24V Long-Range Conventional Fire Detection
- Regular price
- $2,157.00
- Sale price
- $2,157.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D296
Description
The Bosch D296 is a projected beam smoke detector designed for long-range smoke detection in large open indoor spaces. Manufactured by Bosch, it provides reliable fire detection over distances from 30 to 350 feet (9 to 107 m) using a conventional four-wire system. The detector is well suited for warehouses, atriums, manufacturing facilities, and other applications where spot smoke detectors may be impractical.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire Alarm Systems |
| Part Number | D296 |
| Subcategory | Projected Beam Smoke Detector |
| Detector Type | Projected Beam Smoke Detector |
| System Type | Conventional Four-Wire |
| Operating Voltage | 18 to 32 VDC (24 VDC Nominal) |
| Standby Current | Receiver: 45 mA; Transmitter: 20 mA |
| Alarm Current | Receiver: 70 mA Maximum |
| Detection Range | 30 to 350 ft (9 to 107 m) |
| Sensitivity Settings | 20%, 30%, 40%, 50%, 60%, 70% Beam Obscuration |
| Alarm Contacts | N/O, 1 A at 60 VDC |
| Trouble Contacts | N/C, 1 A at 60 VDC |
| Operating Temperature | -22°F to 130°F (-30°C to 54°C) |
| Humidity Rating | 0% to 95% RH, Non-Condensing |
| Optical Adjustment | ±90° Horizontal, ±10° Vertical |
| Mounting | 3.5 in., 4 in. Square/Octagonal, or European Beza Boxes |
| Fire Alarm Delay | Selectable 5 sec or 30 sec |
| Tamper Protection | Receiver and Transmitter Tamper Switches |
| Weight | 2.6 lb (approx.) |
Information About D296
The D296 is part of Bosch's conventional fire detection portfolio and utilizes projected infrared beam technology for monitoring large protected areas. It consists of a transmitter and receiver with internally adjustable optics for simplified alignment during installation. Operating from an 18 to 32 VDC power supply, the detector offers field-selectable sensitivity settings and configurable fire alarm delays to accommodate different environmental conditions. Its integrated alarm, trouble, and tamper monitoring features support dependable operation in commercial and industrial fire alarm systems.
Key Features:
- Long-Range Detection: Monitors distances from 30 to 350 ft (9 to 107 m) using projected beam technology
- Conventional Four-Wire Design: Integrates with compatible conventional fire alarm control panels
- Adjustable Sensitivity: Field-selectable beam obscuration levels from 20% to 70%
- Precision Optical Alignment: Internally adjustable optics provide ±90° horizontal and ±10° vertical adjustment
- Configurable Alarm Delay: Selectable 5-second or 30-second fire alarm delay reduces nuisance alarms
- Integrated Trouble Monitoring: Normally closed trouble contacts detect system faults and beam interruptions
- Tamper Protection: Receiver and transmitter tamper switches enhance system security and supervision
- Wide Operating Range: Functions from -22°F to 130°F (-30°C to 54°C) in dry indoor environments
The D296 delivers the reliability and precision required for long-range smoke detection in commercial and industrial fire alarm systems.
