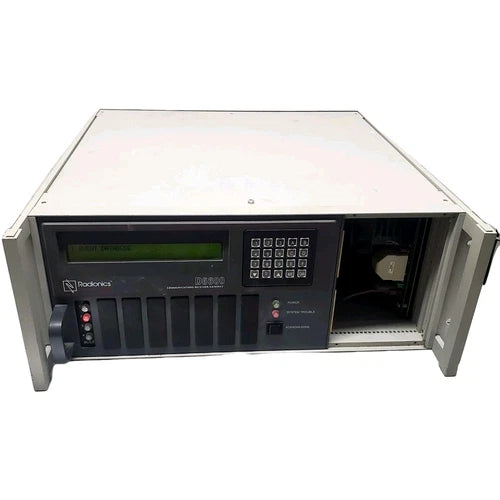

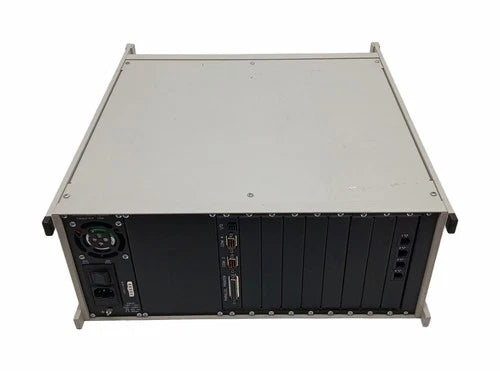

Bosch D6600 Conettix Central Station Communications Receiver Gateway
- Regular price
- $5,227.00
- Sale price
- $5,227.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D6600
Description
Bosch D6600 is a Conettix Communications Receiver/Gateway designed for central-station processing of alarm communication signals. The receiver supports up to 32 telephone lines and network communication, providing centralized handling of fire, burglary, and other alarm event transmissions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire Alarm Systems |
| Part Number | D6600 |
| Subcategory | Communication Modules |
| Product Type | Communications Receiver/Gateway |
| Application | Central Station Alarm Monitoring |
| Telephone Line Capacity | Up to 32 PSTN lines |
| Network Account Capacity | Up to 3,200 network accounts |
| Communication Paths | PSTN and LAN/WAN |
| Line Card Slots | 8 |
| CPU Terminator | D6615 |
| Display | Two-line dot-matrix LCD, 40 characters per line |
| Automation Interface | RS-232 |
| Programmable Inputs | 2 |
| AC Input | 120 V or 230 V nominal |
| Maximum AC Current | 2.5 A |
| Operating Temperature | 0°C to 50°C |
| Rack Size | 4U |
| Rack-Mount Dimensions | 18 × 48.3 × 49.5 cm |
| Weight | 8.7 kg |
Information About D6600
The D6600 is a modular central-station receiver built around plug-in line cards and a dedicated CPU card. It supports multiple communication paths, including PSTN telephone lines and LAN/WAN network communications through compatible Bosch network interfaces. The system can process multiple communication formats and supports up to 3,200 network accounts, with event information transferred to central-station automation software through serial or network connections. Its modular construction provides front-access serviceability and hot-swappable line-card capability for supported configurations.
Key Features:
- 32-Line Capacity: Supports up to 32 PSTN telephone communication lines in the full configuration.
- Network Communication: Supports LAN/WAN alarm communications through compatible Conettix network interfaces.
- Multi-Format Reception: Processes numerous alarm communication formats for central-station applications.
- Modular Architecture: Uses plug-in line cards and a dedicated CPU card for system configuration and servicing.
- Network Account Capacity: Supports up to 3,200 network accounts for compatible network communication configurations.
- Event Processing: Provides alarm and supervisory event processing for connection to automation software.
- Serviceable Design: Provides front-panel access to the CPU and hot-swappable line cards in supported configurations.
- Central-Station Applications: Supports UL-listed central-station fire and burglary monitoring applications.
The D6600 delivers the reliability and processing capacity required for central-station alarm communication and event management.
