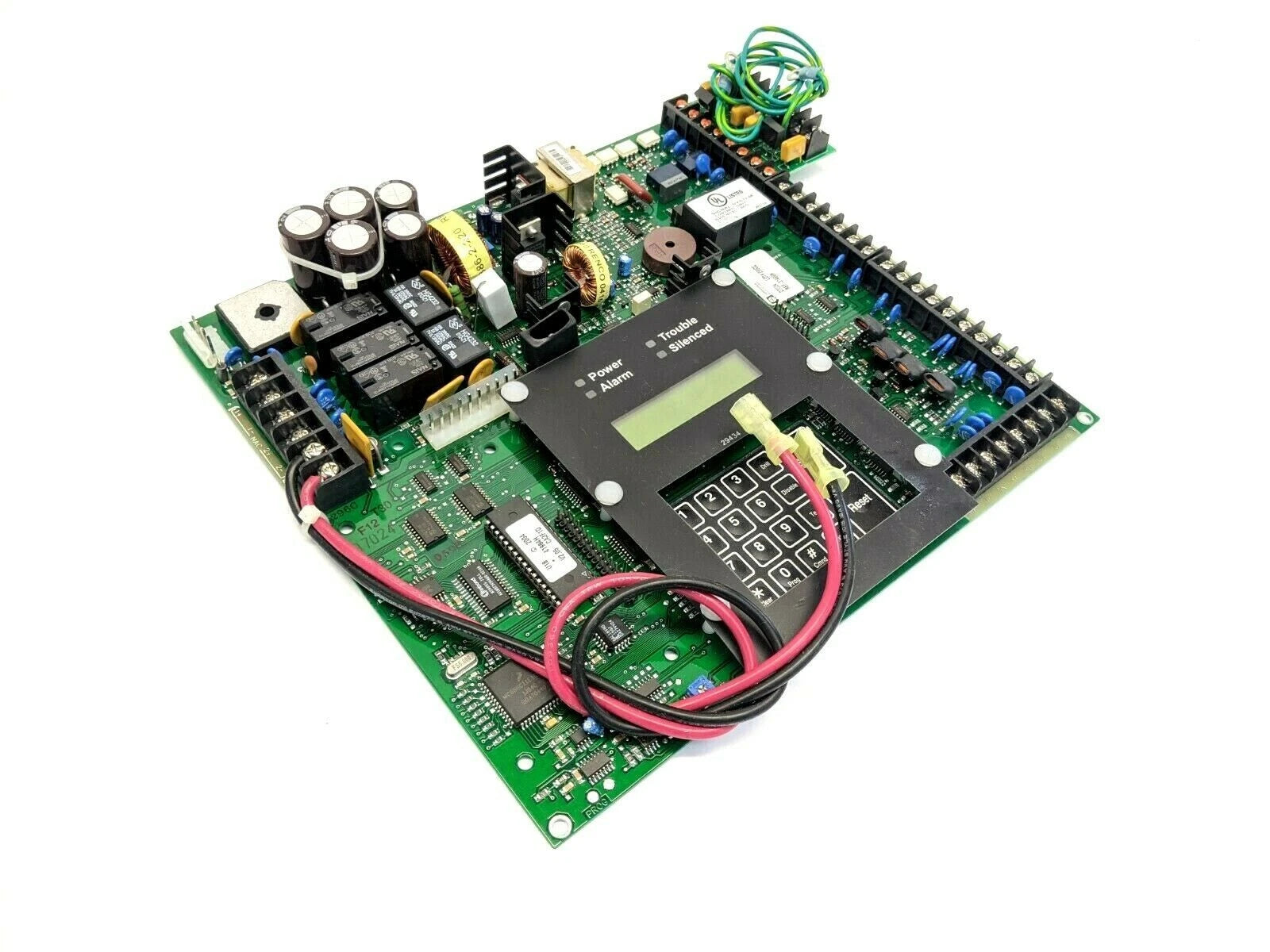

Bosch D7024 Hybrid Fire Alarm Control Panel Expandable Conventional Addressable System
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D7024
Description
The Bosch D7024 Fire Alarm Control Panel is a fully integrated hard-wired fire alarm control and communicator designed for commercial and industrial life safety applications. It provides four onboard initiating device circuits with expandable conventional and addressable capabilities, along with integrated alarm notification, system monitoring, and remote communication. The panel supports flexible system expansion for a wide range of fire detection installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire Alarm Systems |
| Part Number | D7024 |
| Subcategory | Fire Alarm Control Panels |
| Product Type | Hybrid Fire Alarm Control Panel |
| System Type | Conventional / Addressable Hybrid |
| Onboard Zones | 4 |
| Maximum Conventional Zones | 8 (with D7034 Expander) |
| Maximum Input Points | Up to 255 (with D7039 Expansion Module) |
| Maximum Addressable Devices | Up to 219 Bosch MUX devices |
| User Capacity | 16 standard, expandable to 100 |
| Display | Integrated 2-line LCD |
| Keypad | Built-in LCD keypad |
| Remote Keypads Supported | Up to 4 |
| Remote Annunciators Supported | Up to 8 |
| Notification Appliance Circuits | 2 onboard NACs |
| Shared NAC Output | 4 A |
| Communication | Dual onboard telephone line digital communicator |
| Expansion Modules | D7034 Four-Point Expander, D7039 Multiplex Expansion Module |
| Replacement Model | Bosch FPD-7024 |
| Weight | Approx. 9 lb |
Information About D7024
The D7024 is part of the Bosch fire alarm control panel family, originally introduced under the Radionics brand before becoming a Bosch product following the company acquisition. It combines conventional fire alarm control with optional multiplex addressable technology, allowing users to expand from basic installations to larger intelligent fire detection systems. The panel features a built-in LCD display and keypad for local programming, monitoring, and operator control while supporting additional remote keypads and annunciators. Designed for commercial buildings, schools, healthcare facilities, offices, and industrial sites, it offers dependable fire alarm management with integrated digital communication capabilities.
Key Features:
- Hybrid Fire Alarm Panel: Supports both conventional and optional Bosch MUX addressable devices.
- Four Onboard Zones: Includes four initiating device circuits expandable to eight conventional zones.
- Addressable Expansion: Supports up to 219 Bosch MUX addressable devices using the FPE-7039 expansion module.
- Large System Capacity: Expandable to as many as 255 input points with compatible expansion modules.
- Integrated LCD Keypad: Built-in two-line LCD display with local programming and system operation.
- User Expansion: Supports 16 users expandable to 100 with multiplex expansion.
- Dual NAC Outputs: Includes two onboard notification appliance circuits with up to 4 A shared output.
- Remote Annunciator Support: Compatible with up to eight remote annunciators and multiple keypads.
- Dual Telephone Lines: Integrated digital communicator supports two telephone line connections.
- Synchronization Support: Compatible with Wheelock and Gentex synchronized notification appliances.
- Flexible System Expansion: Works with D7034 Four-Point Expander and D7039 Multiplex Expansion Module.
- Commercial Fire Protection: Suitable for a wide variety of life safety and building protection applications.
The D7024 delivers the reliability and precision required for commercial fire detection, alarm notification, and life safety system management.
