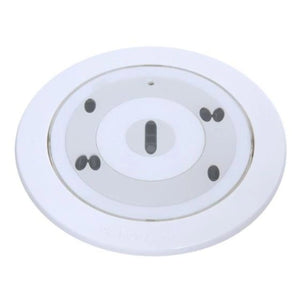

Bosch FCP-500-P Conventional Photoelectric Smoke Detector
- Regular price
- $349.00
- Sale price
- $349.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FCP-500-P
Description
Bosch FCP-500-P is a conventional photoelectric smoke detector designed for early detection of smoke in fire alarm systems. It features a low-profile flush-mount design, transparent housing with interchangeable color inserts, and requires a compatible four-wire base for installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Fire Systems |
| Part Number | FCP-500-P |
| Subcategory | Smoke Detectors |
| Detector Type | Conventional Photoelectric Smoke Detector |
| Detection Principle | Optical |
| Mounting Type | Flush Mount |
| Housing | Transparent with Color Inserts |
| Operating Voltage | 8.5–33 V DC |
| Alarm Current | 47 mA |
| Standby Current | 3 mA with FCA-500-EU base |
| Operating Temperature | -20 to +65 °C |
| Relative Humidity | 0–95%, non-condensing |
| Permissible Air Speed | Up to 20 m/s |
| Required Base | FCA-500 Four-Wire Base |
| Connection | Four-Wire |
| Weight | 170 g |
Information About FCP-500-P
The FCP-500-P is part of the Bosch FCP-500 series of conventional automatic fire detectors. The detector uses an optical detection principle and is intended for open-area fire detection applications. Its transparent cover accepts reversible color inserts, allowing the visible detector ring to be matched to the surrounding installation. The detector operates with compatible FCA-500 series bases and is designed for ceiling-mounted installations in conventional fire alarm systems.
Key Features:
- Photoelectric Detection: Uses an optical sensing principle for conventional smoke detection.
- Flush-Mount Design: Provides a low-profile appearance for ceiling installations.
- Transparent Housing: Includes a transparent cover supplied with interchangeable color inserts.
- Four-Wire Base: Requires a compatible FCA-500 four-wire detector base.
- Wide Voltage Range: Operates from 8.5 to 33 V DC.
- Environmental Range: Supports operation from -20 to +65 °C.
- LED Indication: Provides visual status indication for detector operation and alarm conditions.
- Conventional System Compatibility: Designed for integration with compatible conventional fire alarm systems.
The FCP-500-P delivers the reliability and precision required for conventional fire detection and smoke monitoring applications.
