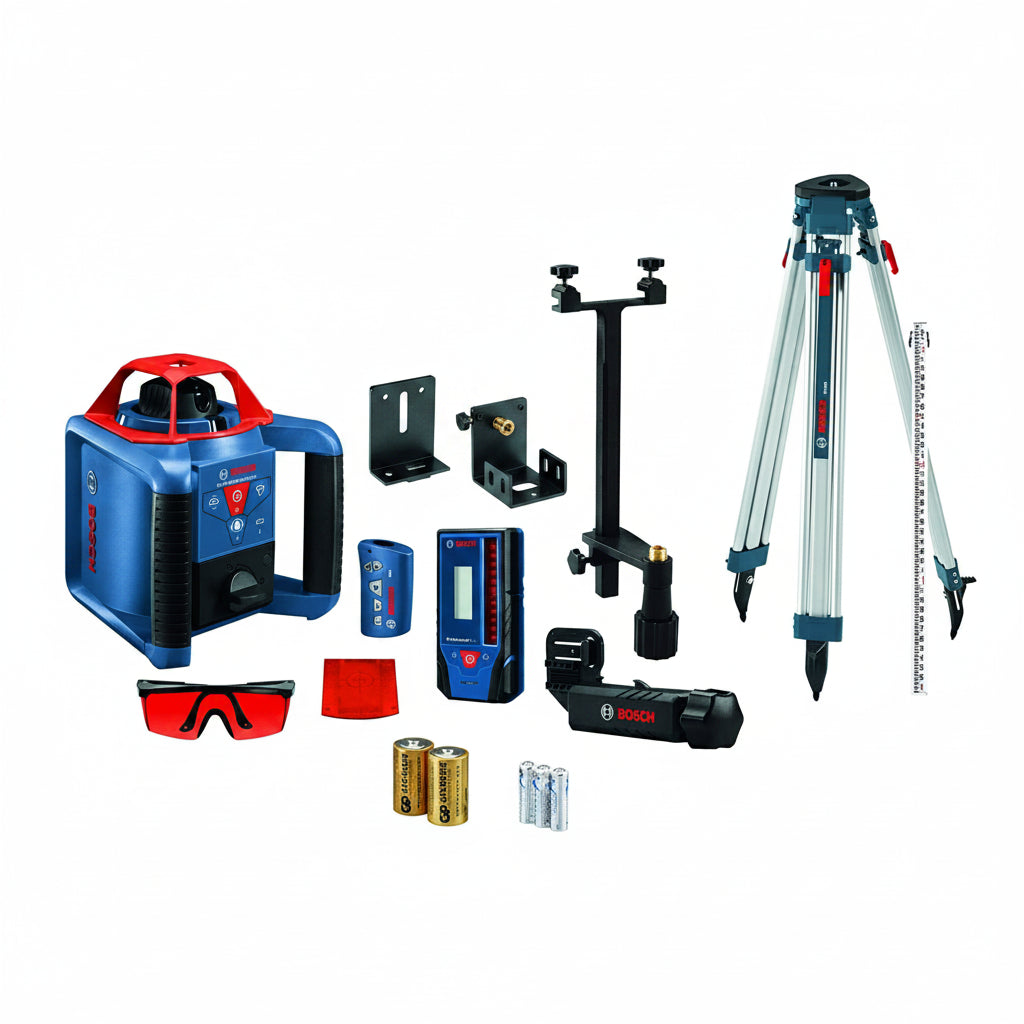

Bosch GRL1000-20HVK Self-Leveling Rotary Laser Kit with Receiver and Tripod
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: GRL1000-20HVK
Description
The Bosch GRL1000-20HVK is a self-leveling rotary laser kit designed for leveling, grading, squaring, and plumb applications on construction sites. It projects a red laser beam with a working range of up to 1,000 feet when used with a compatible receiver and includes a receiver, tripod, leveling rod, remote control, batteries, and carrying case.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Measuring Tools |
| Part Number | GRL1000-20HVK |
| Subcategory | Rotary Laser Levels |
| Laser Beam Color | Red |
| Laser Class | Class 3R, <5 mW |
| Laser Wavelength | 630–670 nm |
| Leveling Type | Electronic Self-Leveling |
| Self-Leveling Range | Up to 5° |
| Working Range | Up to 1,000 ft |
| Ingress Protection | IP54 |
| Mount Threading | 5/8-11 |
| Material | Plastic |
| Operating Temperature | 14°F / -10°C to 122°F / 50°C |
| Included Laser Receiver | LR10 with Bracket |
| Included Tripod | BT152 Aluminum Tripod |
| Included Leveling Rod | GR 8 C, 8 ft |
| Included Remote Control | RC1 |
| Batteries | 2 D Batteries and 3 AA Batteries |
| Carrying Case | All-in-One Carrying Case |
| Compatible Accessories | LR10, BT160, BT170HD, BT300HD, GR500, GR16, WM4 |
| Weight | 3.9 lb |
Information About GRL1000-20HVK
The GRL1000-20HVK combines an electronic self-leveling rotary laser with accessories for complete field setup and measurement work. Its leveling system automatically compensates for installation deviations of up to 5° and includes a disturbance monitor to indicate changes in tool position. The unit produces a Class 3R red laser beam rated below 5 mW at 630–670 nm and uses a standard 5/8-11 mounting thread. The kit is compatible with Bosch LR10 laser receivers, BT-series tripods, grade rods, mounts, and positioning devices.
Key Features:
- Rotary Laser: Provides rotating laser projection for leveling, grading, and alignment applications.
- Red Laser Beam: Uses a Class 3R red laser diode operating at 630–670 nm.
- Self-Leveling: Electronically self-levels with a compensation range of up to 5°.
- Vertical Beam: Provides vertical-beam functionality and a 90° point for squaring and plumb work.
- Disturbance Monitor: Indicates when the tool position changes during operation.
- Extended Range: Provides a working range of up to 1,000 feet with a compatible laser receiver.
- Mounting Thread: Uses a standard 5/8-11 mounting connection for compatible tripods and accessories.
- Complete Kit: Includes the rotary laser, LR10 receiver, BT152 tripod, GR 8 C leveling rod, RC1 remote, batteries, and carrying case.
The GRL1000-20HVK delivers the reliability and precision required for construction leveling, grading, alignment, squaring, and plumb applications.
Description
The Bosch GRL1000-20HVK is a self-leveling rotary laser kit designed for leveling, grading, squaring, and plumb applications on construction sites. It projects a red laser beam with a working range of up to 1,000 feet when used with a compatible receiver and includes a receiver, tripod, leveling rod, remote control, batteries, and carrying case.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch |
| Category | Measuring Tools |
| Part Number | GRL1000-20HVK |
| Subcategory | Rotary Laser Levels |
| Laser Beam Color | Red |
| Laser Class | Class 3R, <5 mW |
| Laser Wavelength | 630–670 nm |
| Leveling Type | Electronic Self-Leveling |
| Self-Leveling Range | Up to 5° |
| Working Range | Up to 1,000 ft |
| Ingress Protection | IP54 |
| Mount Threading | 5/8-11 |
| Material | Plastic |
| Operating Temperature | 14°F / -10°C to 122°F / 50°C |
| Included Laser Receiver | LR10 with Bracket |
| Included Tripod | BT152 Aluminum Tripod |
| Included Leveling Rod | GR 8 C, 8 ft |
| Included Remote Control | RC1 |
| Batteries | 2 D Batteries and 3 AA Batteries |
| Carrying Case | All-in-One Carrying Case |
| Compatible Accessories | LR10, BT160, BT170HD, BT300HD, GR500, GR16, WM4 |
| Weight | 3.9 lb |
Information About GRL1000-20HVK
The GRL1000-20HVK combines an electronic self-leveling rotary laser with accessories for complete field setup and measurement work. Its leveling system automatically compensates for installation deviations of up to 5° and includes a disturbance monitor to indicate changes in tool position. The unit produces a Class 3R red laser beam rated below 5 mW at 630–670 nm and uses a standard 5/8-11 mounting thread. The kit is compatible with Bosch LR10 laser receivers, BT-series tripods, grade rods, mounts, and positioning devices.
Key Features:
- Rotary Laser: Provides rotating laser projection for leveling, grading, and alignment applications.
- Red Laser Beam: Uses a Class 3R red laser diode operating at 630–670 nm.
- Self-Leveling: Electronically self-levels with a compensation range of up to 5°.
- Vertical Beam: Provides vertical-beam functionality and a 90° point for squaring and plumb work.
- Disturbance Monitor: Indicates when the tool position changes during operation.
- Extended Range: Provides a working range of up to 1,000 feet with a compatible laser receiver.
- Mounting Thread: Uses a standard 5/8-11 mounting connection for compatible tripods and accessories.
- Complete Kit: Includes the rotary laser, LR10 receiver, BT152 tripod, GR 8 C leveling rod, RC1 remote, batteries, and carrying case.
The GRL1000-20HVK delivers the reliability and precision required for construction leveling, grading, alignment, squaring, and plumb applications.
