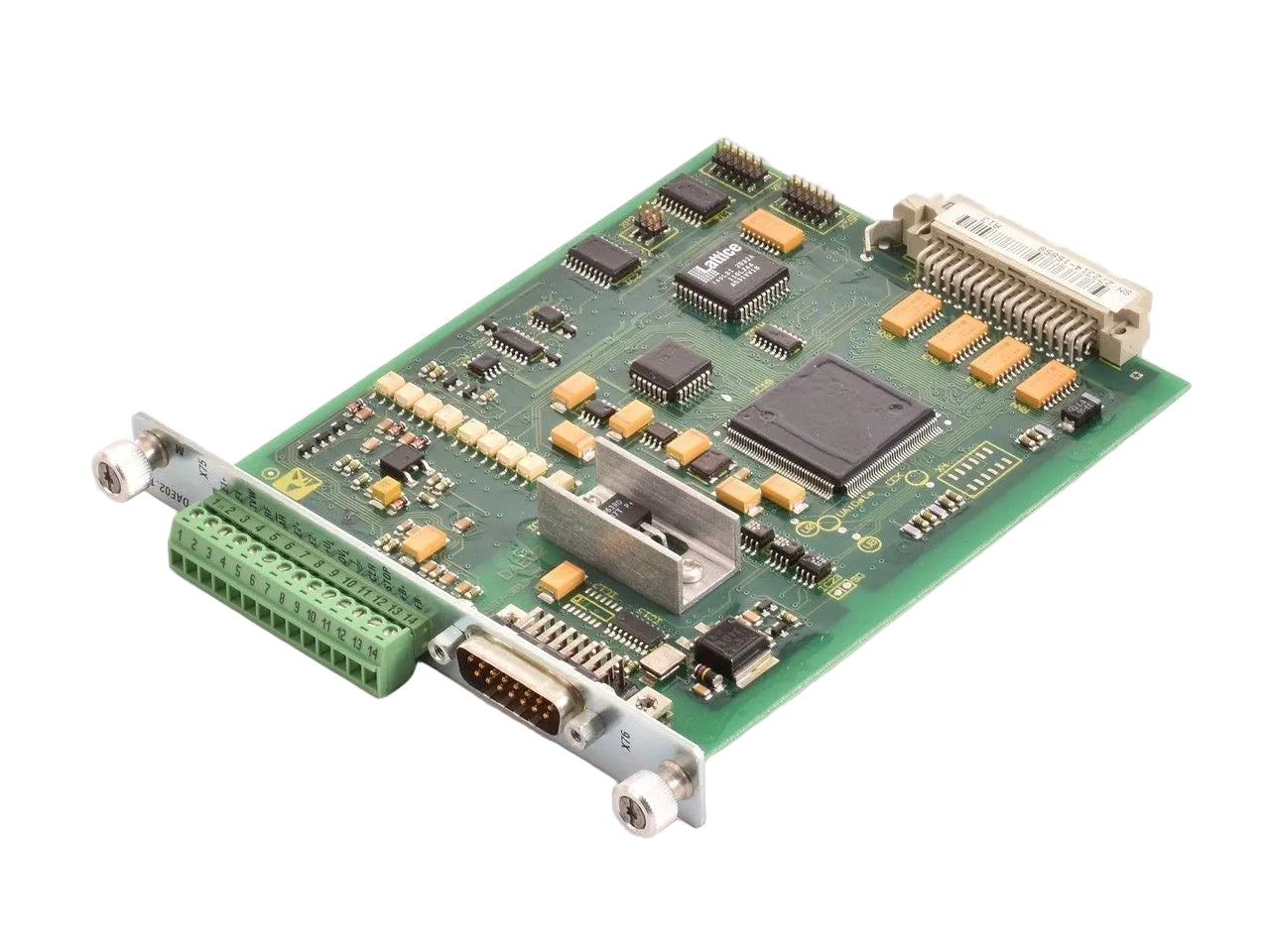

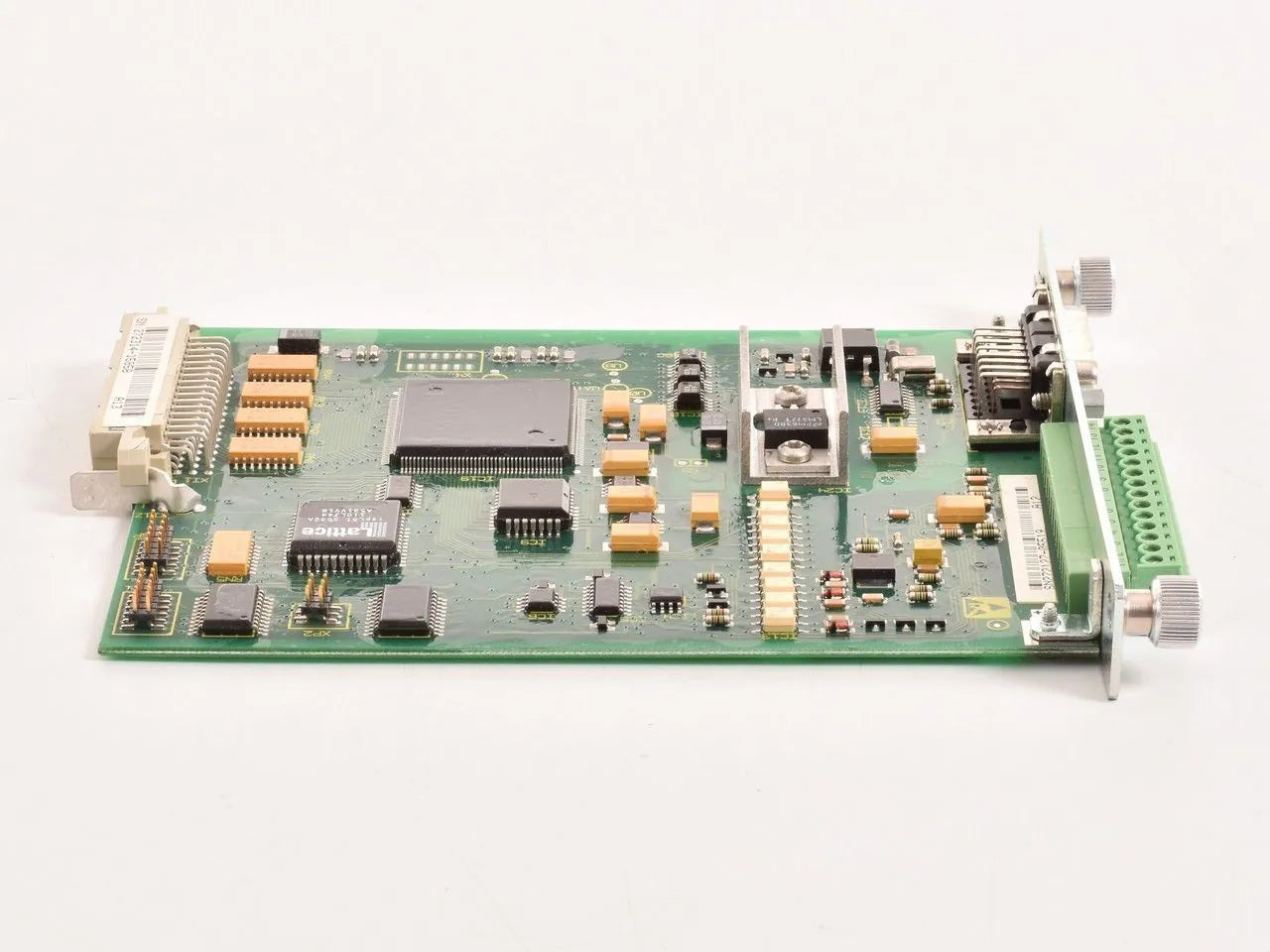

Bosch Rexroth 109-0997-3A13-05 DAE02.1 Analog Interface Plug-In Module for Digital AC Servo Drives
- Regular price
- $662.00
- Sale price
- $662.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 109-0997-3A13-05
Description
The Bosch Rexroth 109-0997-3A13-05 is an analog interface plug-in module designed for digital AC servo drive systems, providing high-precision position feedback and communication with external control equipment. Also identified as the DAE02.1 interface board, the Bosch Rexroth 109-0997-3A13-05 supports incremental and absolute SSI encoder signal generation, making it suitable for industrial motion control and automation applications. It is intended for panel-mounted installations requiring accurate position monitoring and reliable servo drive integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | PLCs/Machine Control |
| Part Number | 109-0997-3A13-05 |
| Subcategory | PLC Module/Rack |
| Product Type | Analog Interface Plug-In Module |
| Model | DAE02.1 |
| Alternative Designation | DAE021 |
| Application | Digital AC Servo Drives |
| Mounting | Panel Mount |
| Position Feedback | Actual Position Value Output |
| Encoder Signal Support | Incremental Encoder and Absolute SSI Encoder |
| Communication | Control Inputs and Signal Outputs |
| Primary Function | Servo Drive Interface and Position Feedback |
| Manufacturer Status | Discontinued |
| Industrial Application | Motion Control and Factory Automation |
| Weight | 0.16 kg |
Information About 109-0997-3A13-05
The 109-0997-3A13-05 is a Bosch Rexroth DAE02.1 analog interface board developed for use with compatible digital AC servo drive systems. It functions as an interface between the servo drive and external controllers by providing actual position value outputs along with dedicated control inputs and signal outputs for system communication. The module is capable of generating both incremental encoder signals and absolute SSI encoder signals, enabling flexible integration with various industrial motion control architectures. Although discontinued by the manufacturer, it remains an important replacement component for maintaining existing Bosch Rexroth servo drive installations.
Key Features:
- Analog Interface Module: Provides an interface between digital AC servo drives and external automation controllers.
- Actual Position Output: Generates accurate position value outputs for closed-loop motion control applications.
- Encoder Signal Generation: Supports both incremental encoder and absolute SSI encoder signal formats.
- Control Signal Integration: Includes control inputs and signal outputs for communication with connected control systems.
- Panel Mount Design: Engineered for secure installation in industrial electrical control panels.
- Servo Drive Compatibility: Designed for Bosch Rexroth DAE02.1 digital AC servo drive applications.
- Industrial Motion Control: Supports high-precision positioning in automated machinery and manufacturing equipment.
- Replacement Component: Suitable for servicing and maintaining legacy Bosch Rexroth servo systems after product discontinuation.
The 109-0997-3A13-05 delivers the reliability and precision required for industrial servo drive position feedback and motion control applications.
