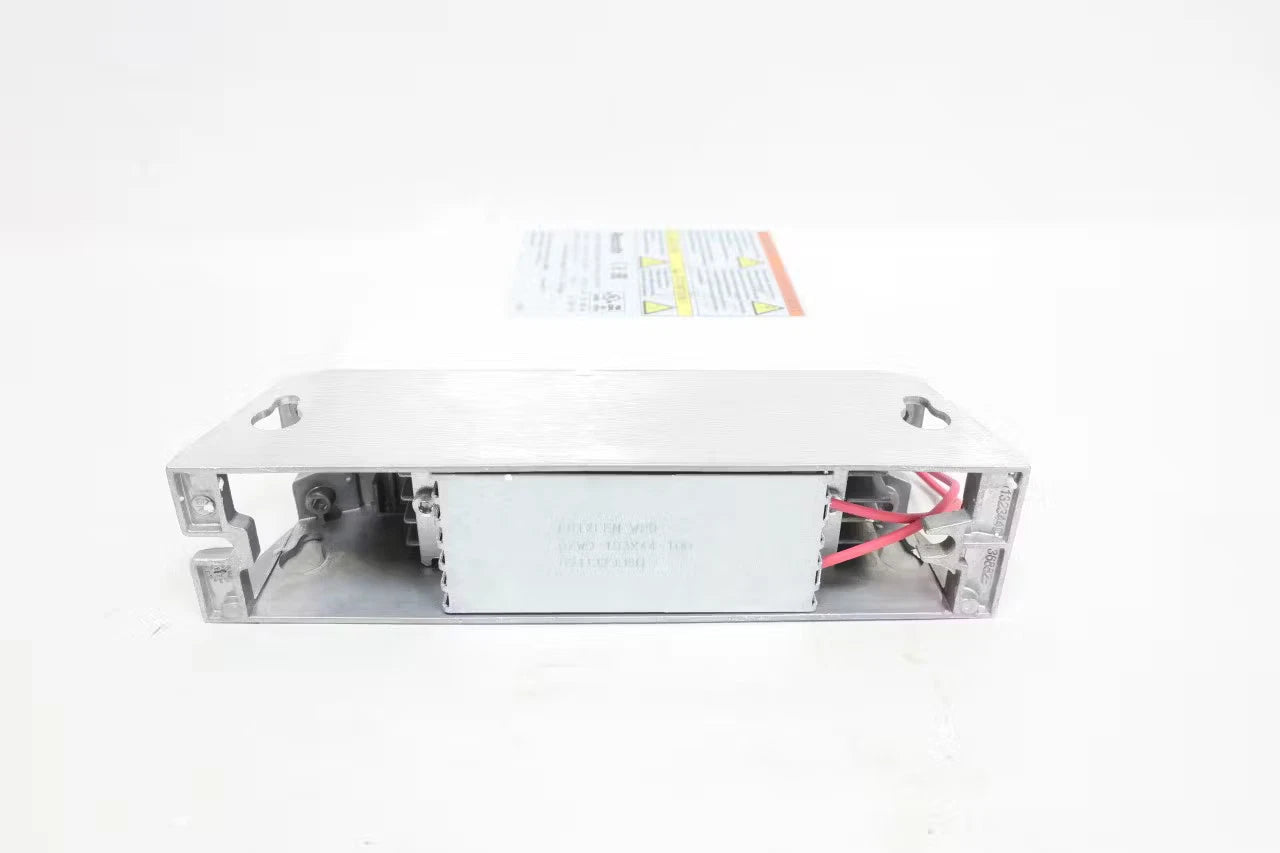

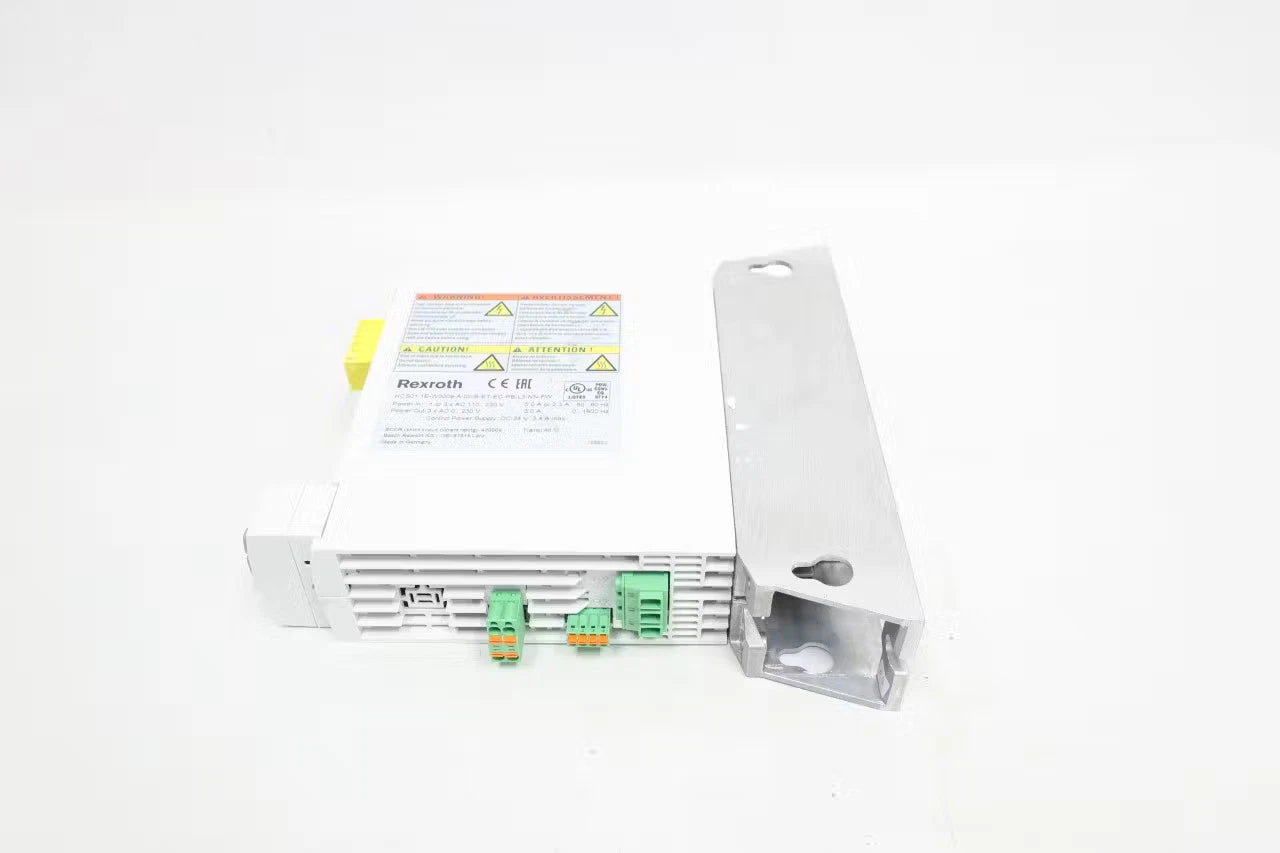

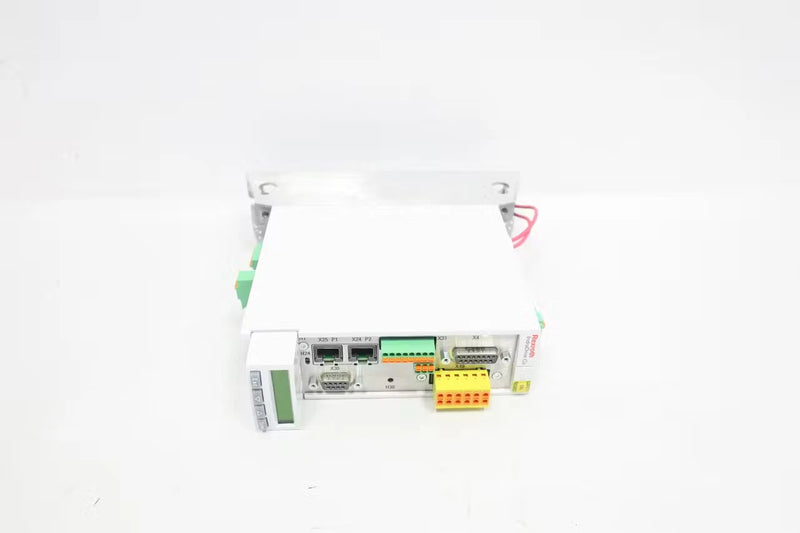

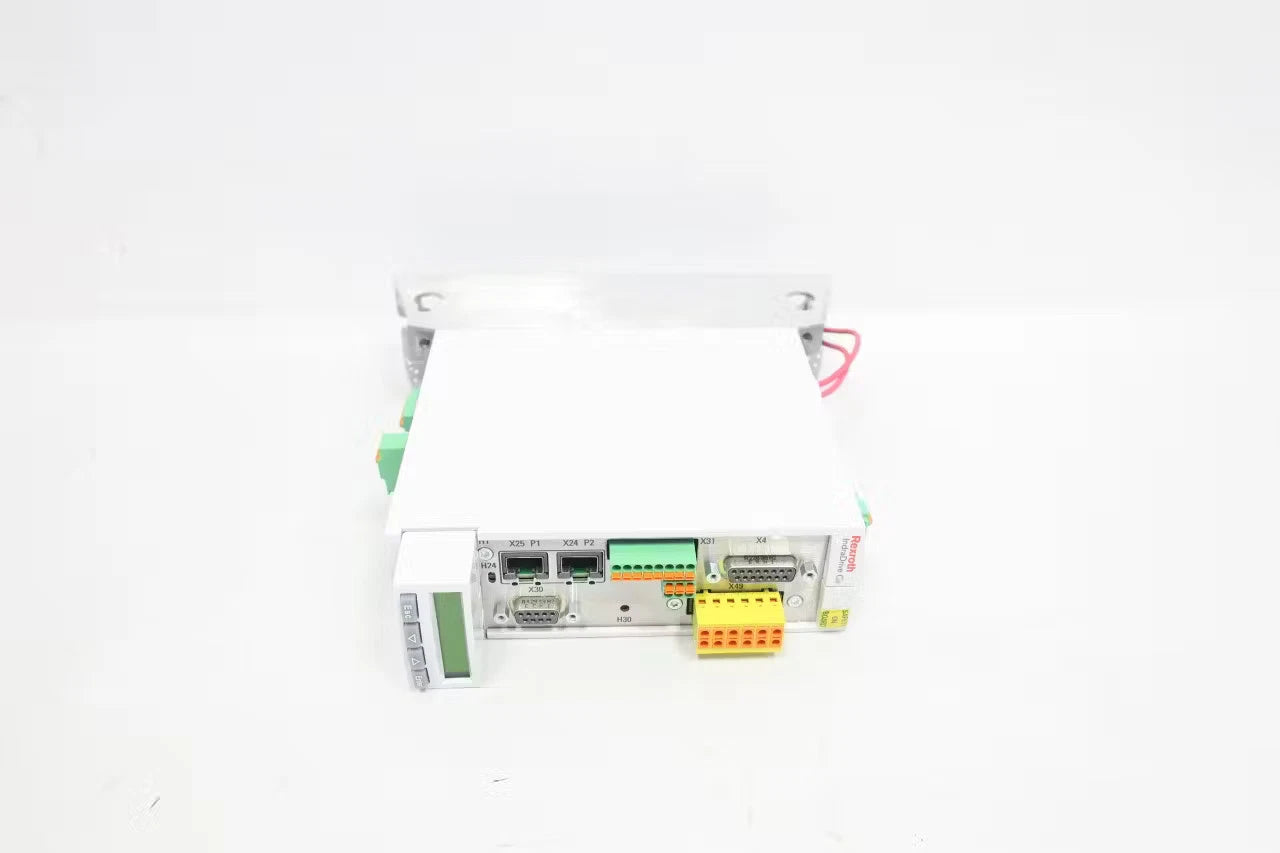

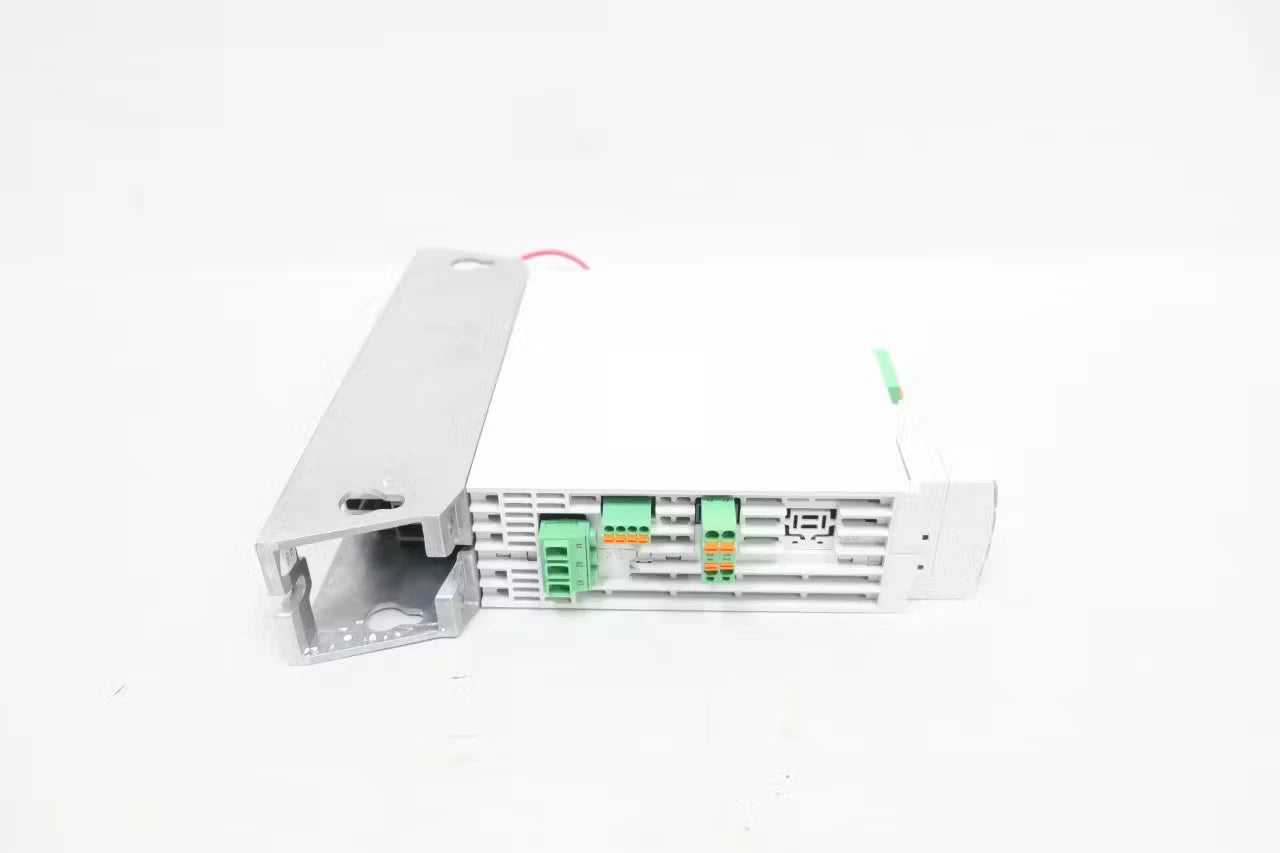

Bosch Rexroth HCS01.1E-W0009-A-02-B-ET-EC-PB-L3-NN-FW IndraDrive Servo Drive Controller
- Regular price
- $1,999.00
- Sale price
- $1,999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HCS01.1E-W0009-A-02-B-ET-EC-PB-L3-NN-FW
Description
The Bosch Rexroth HCS01.1E-W0009-A-02-B-ET-EC-PB-L3-NN-FW is a compact servo drive controller from the IndraDrive Controllers family, engineered for precise motion control in industrial automation systems. It converts three-phase input power into controlled motor output while processing encoder feedback and exchanging real-time data with higher-level control systems. The controller combines MultiEthernet communication, PROFIBUS connectivity, and integrated functional safety to support high-performance servo and spindle motor applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | Servo Products |
| Part Number | HCS01.1E-W0009-A-02-B-ET-EC-PB-L3-NN-FW |
| Subcategory | Servo Drive/Servo Control |
| Product Family | IndraDrive Controllers HCS Series |
| Product Type | Servo Drive Controller |
| Peak Output Current | 9 A |
| Input Voltage | Three-phase 110 to 230 VAC ±10% |
| Input Frequency | 50/60 Hz |
| Communication Interface | MultiEthernet |
| Additional Communication | PROFIBUS DP |
| Encoder Interface | IndraDyn Hiperface, EnDat 2.1, EnDat 2.2 |
| Control Section | BASIC |
| Safety Function | Safe Torque Off |
| Cooling Method | Internal air cooling with integrated blower |
| Protection Rating | IP20 |
| Power Supply Concept | Infeeding and fed operation with shared direct current bus |
| Mounting | Control cabinet installation |
| Weight | Approximately 2.0 kg |
Information About HCS01.1E-W0009-A-02-B-ET-EC-PB-L3-NN-FW
The HCS01.1E-W0009-A-02-B-ET-EC-PB-L3-NN-FW is a Bosch Rexroth drive controller in the HCS IndraDrive Controllers series, developed for controlling servo and spindle motors in demanding industrial environments. It is installed between the facility power supply and the motor axis, where it manages torque, speed, position, and diagnostic functions while maintaining accurate closed-loop motion control. The controller features a BASIC control section, a MultiEthernet communication interface, and a PROFIBUS DP interface for seamless integration into industrial automation networks. It also supports IndraDyn Hiperface and EnDat 2.1/2.2 encoder systems, incorporates an integrated Safe Torque Off safety function, and utilizes internal air cooling through an integrated blower for dependable long-term operation.
Key Features:
- IndraDrive Controller Platform: Designed for precision control of servo and spindle motors in industrial automation systems.
- MultiEthernet Communication: Supports industrial Ethernet communication for integration with programmable logic controllers and motion control networks.
- PROFIBUS DP Interface: Includes a dedicated PROFIBUS communication interface for conventional fieldbus applications.
- Multi-Encoder Compatibility: Supports IndraDyn Hiperface and EnDat 2.1/2.2 encoder technologies for accurate position feedback.
- Safe Torque Off Function: Integrated functional safety removes motor torque without disconnecting the main power supply.
- Nine Ampere Peak Output: Provides up to 9 A peak current for acceleration and dynamic motion requirements.
- Internal Air Cooling: Features an integrated blower that maintains efficient thermal management without external cooling equipment.
- Shared Direct Current Bus: Supports infeeding and fed operation for efficient energy sharing between connected drive controllers.
The HCS01.1E-W0009-A-02-B-ET-EC-PB-L3-NN-FW delivers the reliability and precision required for high-performance servo drive and industrial motion control applications.
