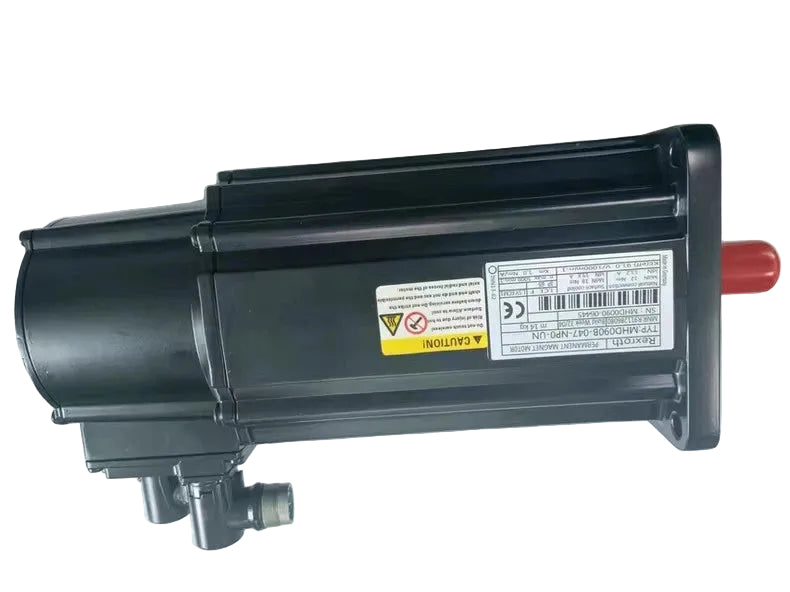

MHD090B-047-NP0-UN | Bosch Rexroth Indramat MHD090B Permanent Magnet Servo Motor
- Regular price
- $5,694.00
- Sale price
- $5,694.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MHD090B-047-NP0-UN
Description
The Bosch Rexroth Indramat MHD090B-047-NP0-UN is a permanent magnet synchronous servo motor designed for precise torque and speed control in industrial motion systems. It delivers high dynamic performance with a maximum speed of 5000 RPM and robust IP65 protection for demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth Indramat |
| Category | Industrial Automation |
| Part Number | MHD090B-047-NP0-UN |
| Subcategory | Servo Motors |
| Product Type | Permanent Magnet Synchronous Motor |
| Motor Series | MHD |
| Winding Code | 047 |
| Characteristic Motor Speed | 3200 RPM |
| Maximum Speed | 5000 RPM |
| Continuous Torque | 12.0 Nm |
| Peak Current | 59.4 A |
| Number of Pole Pairs | 4 |
| Winding Inductivity | 10.1 mH |
| Insulation Class | Class F |
| Degree of Protection | IP65 |
| Cooling Type | Liquid Cooling |
| Feedback Type | Digital Servo Feedback |
| Shaft Type | Shaft with Keyway (DIN 6885-1) |
| Maximum Installation Elevation | 1000 m above MSL |
| Power Connector Orientation | Rotatable within 270° |
| Frame Size | 140 mm |
| Flange Size | 110 mm |
| Weight | 14 kg |
Information About MHD090B-047-NP0-UN
The MHD090B-047-NP0-UN is part of the Bosch Rexroth Indramat MHD synchronous motor series, engineered for high-performance servo drive applications. It features a permanent magnet design with digital servo feedback to ensure precise closed-loop control in automation and machine tool systems. The motor is built with liquid cooling to support stable thermal performance under high load and continuous duty cycles. Designed for compatibility with Bosch Rexroth drive platforms, it supports standardized mechanical interfaces and reliable operation at installation altitudes up to 1000 meters.
Key Features:
- Permanent Magnet Synchronous Motor: Provides high torque density and precise dynamic response.
- Digital Servo Feedback: Ensures accurate position and speed control in closed-loop systems.
- High-Speed Capability: Supports motor speeds up to 5000 RPM for dynamic motion applications.
- Liquid Cooling Design: Maintains thermal stability during continuous high-load operation.
- Industrial IP65 Protection: Suitable for harsh environments with dust and moisture exposure.
- Standardized Shaft with Keyway: DIN 6885-1 compliant shaft ensures secure torque transmission.
- Brake-Free Configuration: Designed for applications where mechanical holding is not required.
The MHD090B-047-NP0-UN delivers the reliability and precision required for high-performance servo motor applications in industrial automation and motion control systems.
