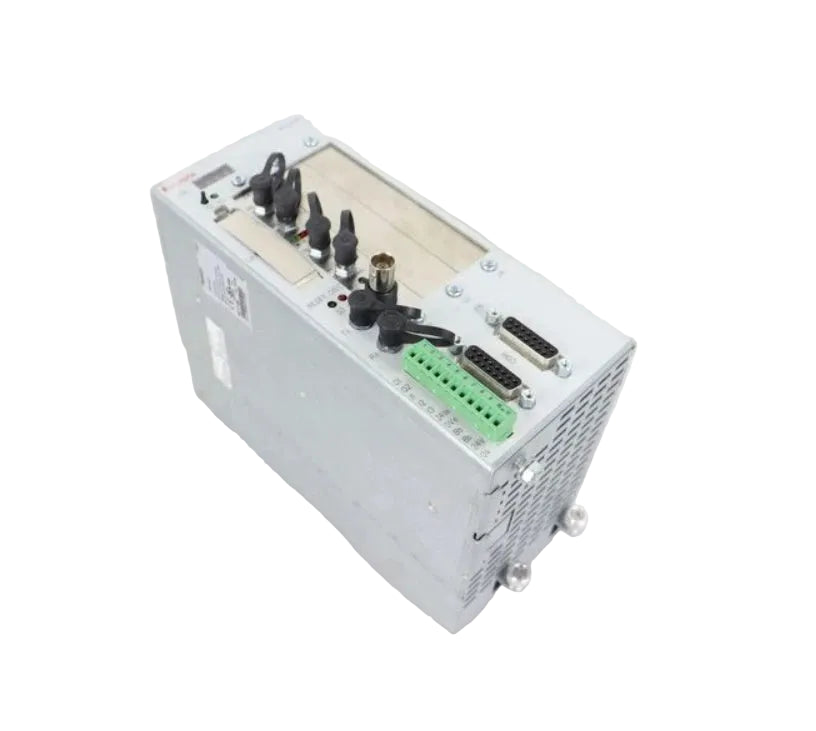

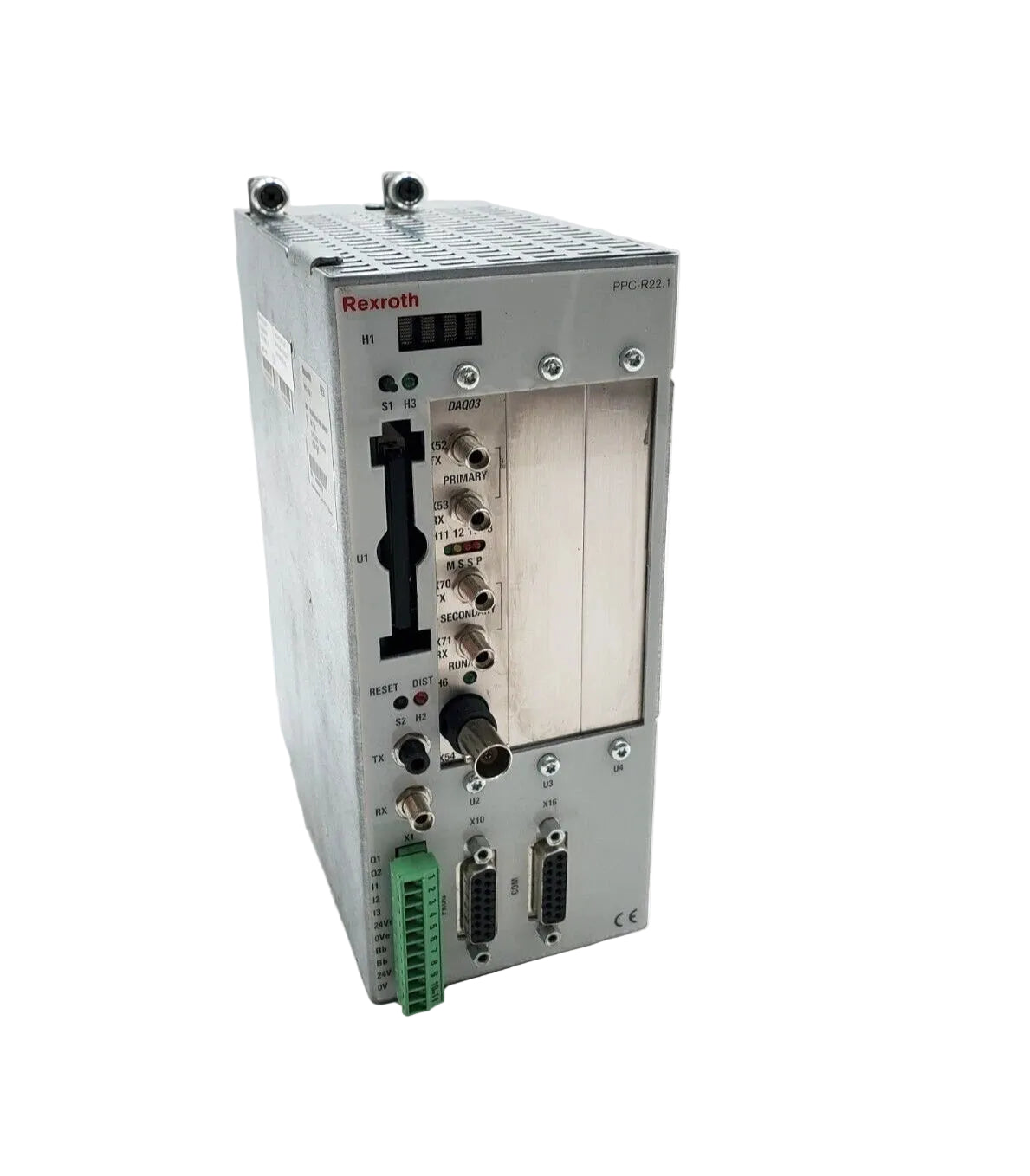

PPC-R22.1N-N-Q1-NN-NN-FW | Bosch Rexroth Indramat Control Unit Servo Module
- Regular price
- $7,544.00
- Sale price
- $7,544.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PPC-R22.1N-N-Q1-NN-NN-FW
Description
The Bosch Rexroth PPC-R22.1N-N-Q1-NN-NN-FW servo module is a compact control unit designed to function as a PLC or NC controller within Rexroth automation systems. It operates on a 24 VDC supply and supports cross communication via the DAQ03 interface. This module is intended for general-purpose industrial control applications requiring flexible and reliable processing.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | Industrial Automation |
| Part Number | PPC-R22.1N-N-Q1-NN-NN-FW |
| Subcategory | Servo Modules |
| Product Type | Control Unit |
| Platform | Indramat PPC |
| Housing Design | RECO Unit |
| Design Version | 1 |
| Communication | Cross Communication (DAQ03) |
| Rated Supply Voltage | 24 VDC |
| Permissible Voltage Range | 19.2–30 VDC |
| Voltage Tolerance | -15% / +20% (EN 61131-2) |
| Memory Expansion | Not Equipped |
| Degree of Protection | IP20 |
| Application | PLC / NC Controller |
| Weight | 30 lb |
Information About PPC-R22.1N-N-Q1-NN-NN-FW
The PPC-R22.1N-N-Q1-NN-NN-FW is part of the Bosch Rexroth Indramat PPC control platform, developed for modular automation and motion control architectures. It features a RECO housing design optimized for compact, IP20-rated control cabinet installations. The unit supports cross communication technology, enabling efficient data exchange with connected drive and I/O components. Designed as a general-purpose platform, it can be configured to operate either as a programmable logic controller or as a numerical control unit depending on application requirements.
Key Features:
- General-Purpose Control Unit: Can function as a PLC or NC controller within Rexroth systems.
- Cross Communication Support: Uses DAQ03 cross communication for system-level data exchange.
- RECO Housing Design: Compact form factor optimized for control cabinet installation.
- 24 VDC Control Power: Designed for standard industrial low-voltage power systems.
- Wide Voltage Tolerance: Supports 19.2–30 VDC input range including ripple factor.
- Modular Automation Platform: Integrates with Bosch Rexroth Indramat control architectures.
The PPC-R22.1N-N-Q1-NN-NN-FW delivers the reliability and precision required for industrial control, automation, and motion management applications.
