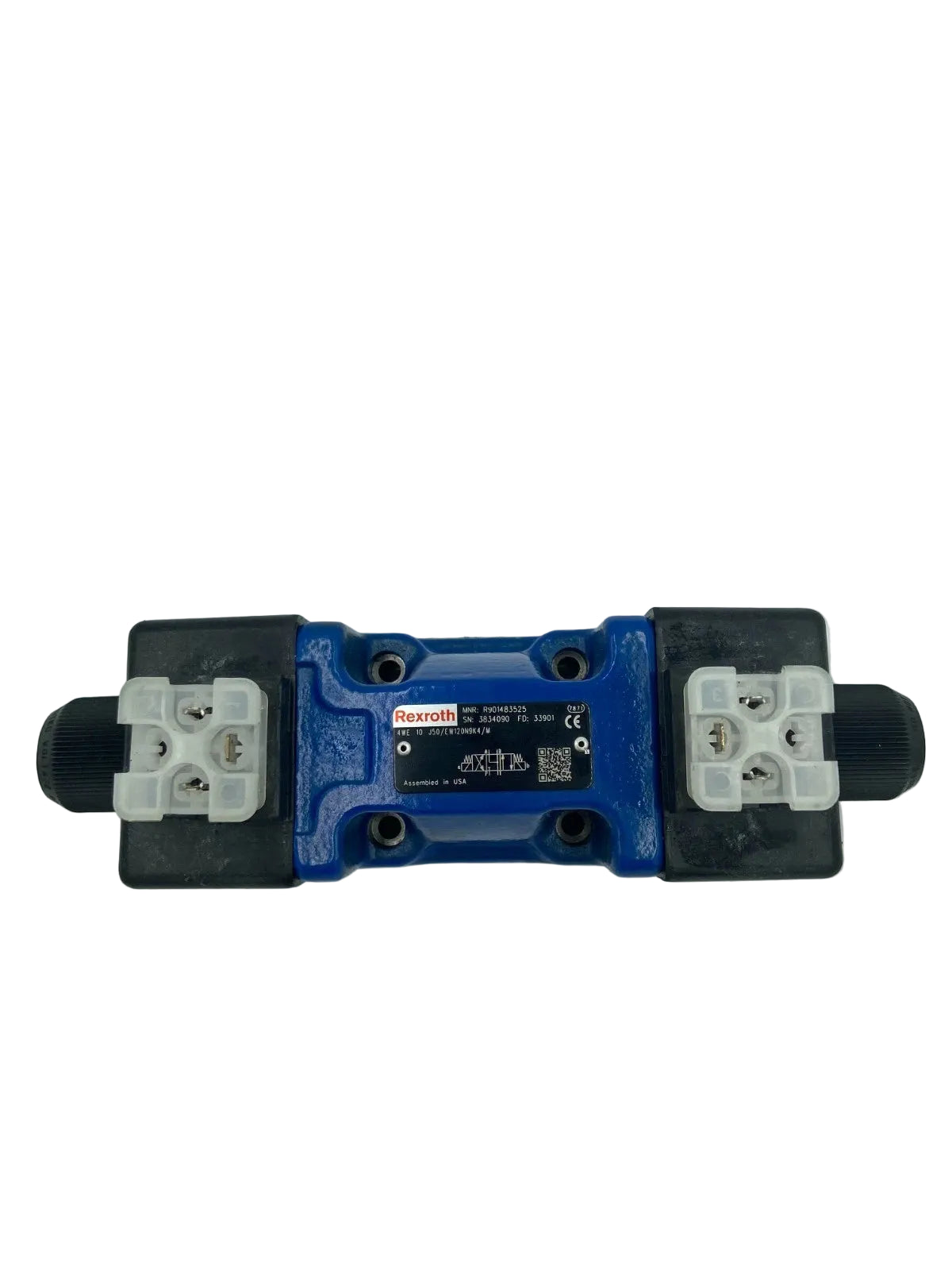

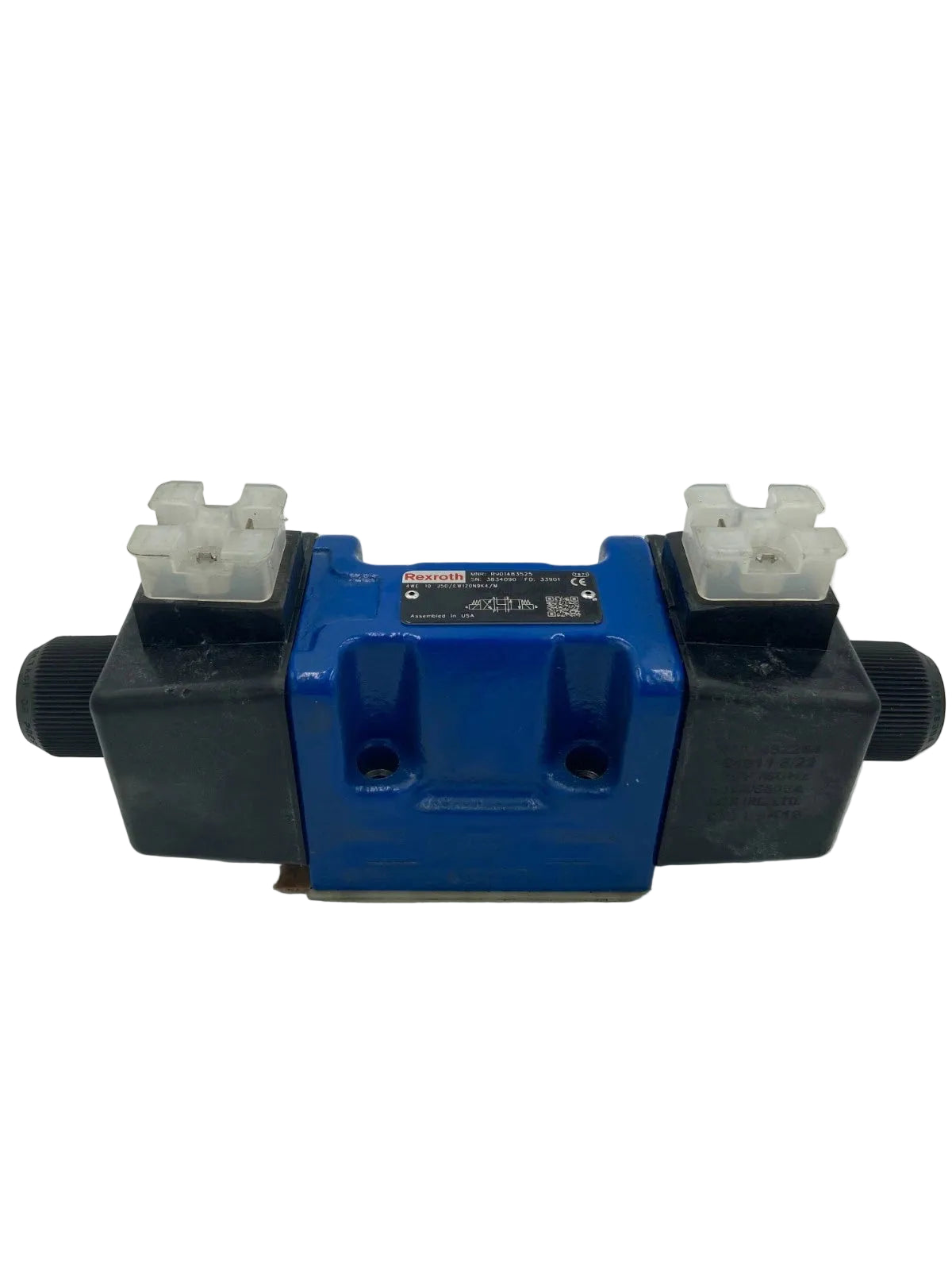

R901483525 | Bosch Rexroth WE Series Size 10 4/3-Way Directional Control Valve
- Regular price
- $1,120.00
- Sale price
- $1,120.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: R901483525
Description
The Bosch Rexroth R901483525 is a 4-port, 3-position hydraulic directional control valve designed for precise switching of hydraulic flow paths in industrial systems. This direct-acting, double-solenoid valve supports high flow rates and operating pressures for demanding hydraulic applications. It is commonly used in automation, machinery, and power unit installations requiring reliable directional control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Rexroth |
| Category | Industrial Automation |
| Part Number | R901483525 |
| Subcategory | Directional Control Valves |
| Product Type | 4-Port Directional Valve |
| Series / Family | WE Series, Size 10, Series 5X |
| Model Code | 4WE10J5X/EW120N9K4/M |
| Valve Function | 4/3-Way, Double Solenoid, Monostable |
| Max Flow Rate | 120 L/min (32 GPM) |
| Max Operating Pressure | 350 bar (5076 psi) |
| Control Voltage | 110 VAC (50 Hz) / 120 VAC (60 Hz) |
| Power Consumption | 40 W |
| Current Consumption | 1 A (Nominal Hold Current) |
| Solenoid Type | High-Power Wet-Pin, Detachable Coil |
| Seal Material | NBR |
| Manual Override | Flush / Concealed |
| Reset Method | Mechanical Spring |
| Connection Type | 3-Pin DIN Connector (DIN 43650) |
| Mounting Standard | ISO 4401-05-04-0-05 |
| Protection Class | IP65 |
| Ambient Temperature Range | −20°C to +70°C |
| Hydraulic Fluid Temperature | −20°C to +80°C |
| Compliance | CE |
| Weight | 6.2 kg |
Information About R901483525
The R901483525 is part of the Bosch Rexroth WE series size 10 directional valves, component series 5X, engineered for robust industrial hydraulic control. It features a 4/3-way spool configuration with a monostable design and mechanical spring return for defined switching behavior. The valve is equipped with high-power wet-pin solenoids and detachable coils, enabling dependable electrical actuation under continuous duty. Designed according to ISO 4401-05-04-0-05 mounting standards, it integrates easily into standardized hydraulic manifolds and subplates.
Key Features:
- 4/3-Way Directional Control: Provides controlled switching of four hydraulic ports across three spool positions.
- Direct-Acting Double Solenoid Design: Enables fast and reliable valve response without pilot pressure.
- High Flow Capacity: Supports flow rates up to 120 L/min (32 GPM) for demanding hydraulic circuits.
- High Pressure Rating: Rated for operating pressures up to 350 bar (5076 psi).
- Wet-Pin Solenoid Technology: High-power solenoids with detachable coils for durable operation.
- Standardized Mounting Interface: ISO 4401-05-04-0-05 porting pattern ensures system compatibility.
- Industrial Protection Rating: IP65-rated construction suitable for harsh operating environments.
The R901483525 delivers the reliability and precision required for directional control of hydraulic actuators in industrial automation and power systems.
