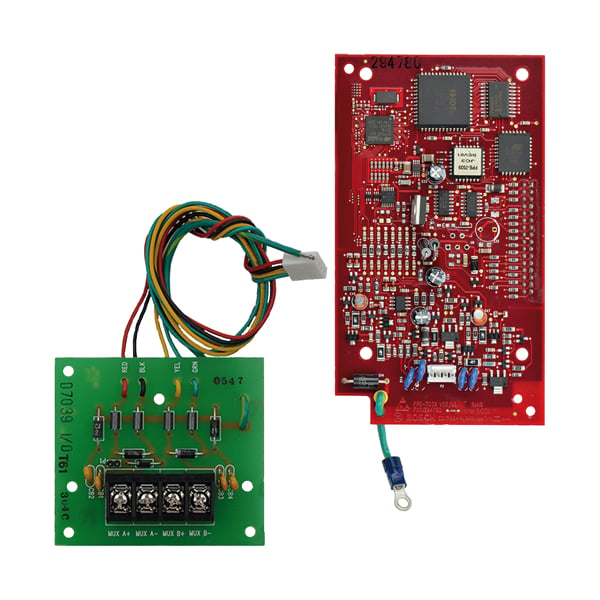

Bosch Security FPE-7039 Multiplex Expansion Module for FPD-7024 Fire Alarm Control Panels
- Regular price
- $1,399.00
- Sale price
- $1,399.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FPE-7039
Description
The Bosch Security FPE-7039 is a multiplex expansion module designed to extend the capabilities of compatible Bosch fire alarm control panels by adding addressable device capacity, relay outputs, and system memory. This module connects directly to supported control panels, improving system scalability while enabling advanced programming and event management for commercial fire detection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bosch Security |
| Category | Fire Alarm Systems |
| Part Number | FPE-7039 |
| Subcategory | Multiplex Expansion Modules |
| Product Type | Multiplex Expansion Module |
| Compatible Control Panels | Bosch FPD-7024, D7024, DS9400 |
| Maximum Addressable Points | Up to 255 total points |
| Additional Addressable Capacity | Increases addressable points by 247 |
| Relay Output Capacity | Up to 58 (D7024/DS9400) or 59 (FPD-7024) |
| Event History Capacity | 499 non-volatile events |
| Additional History Events | Adds 400 events |
| Maximum System Users | Up to 100 users |
| Programming Method | Bosch RPS Remote Programming Software |
| Installation | Direct connection to compatible fire alarm control panel |
| Production Status | Discontinued |
| Dimensions | 1.00 × 4.00 × 7.00 in |
| Weight | 0.7 lbs |
Information About FPE-7039
The FPE-7039 is a multiplex expansion module developed for use with the Bosch FPD-7024, D7024, and DS9400 Fire Alarm Control Panels. It is engineered to increase system capacity by supporting up to 255 total addressable points while expanding relay output capability and event history storage. The module integrates directly with the host control panel and supports remote configuration through Bosch RPS Remote Programming Software, simplifying system maintenance and commissioning. Its design makes it suitable for expanding fire alarm systems in commercial, institutional, and industrial facilities that require greater device capacity and advanced user management.
Key Features:
- Multiplex Expansion: Enhances compatible Bosch fire alarm control panels with expanded multiplex functionality.
- Addressable Point Increase: Expands the system to support up to 255 total addressable points (247 additional addressable points).
- Expanded Relay Outputs: Increases relay capacity to 58 outputs on D7024/DS9400 systems and 59 outputs on FPD-7024 systems.
- Extended Event History: Adds 400 additional non-volatile history events for a total storage capacity of 499 events.
- Increased User Capacity: Supports up to 100 system users by adding 84 additional PIN accounts beyond the base system.
- Remote Programming Support: Compatible with Bosch RPS Remote Programming Software for convenient off-site configuration and maintenance.
- Direct Panel Integration: Connects directly to compatible Bosch control panels without requiring complex external interfaces.
- Commercial Fire Protection Application: Designed for expanding fire alarm systems in facilities requiring additional addressable devices and enhanced monitoring capabilities.
The FPE-7039 delivers the reliability and precision required for expanding addressable fire alarm control systems in commercial and industrial life safety applications.
