BQ220250 | Eaton BR BQ Quadplex 20A/50A 4-Pole Thermal Magnetic Circuit Breaker 120/240V
- Regular price
- $69.00
- Sale price
- $69.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BQ220250
Description

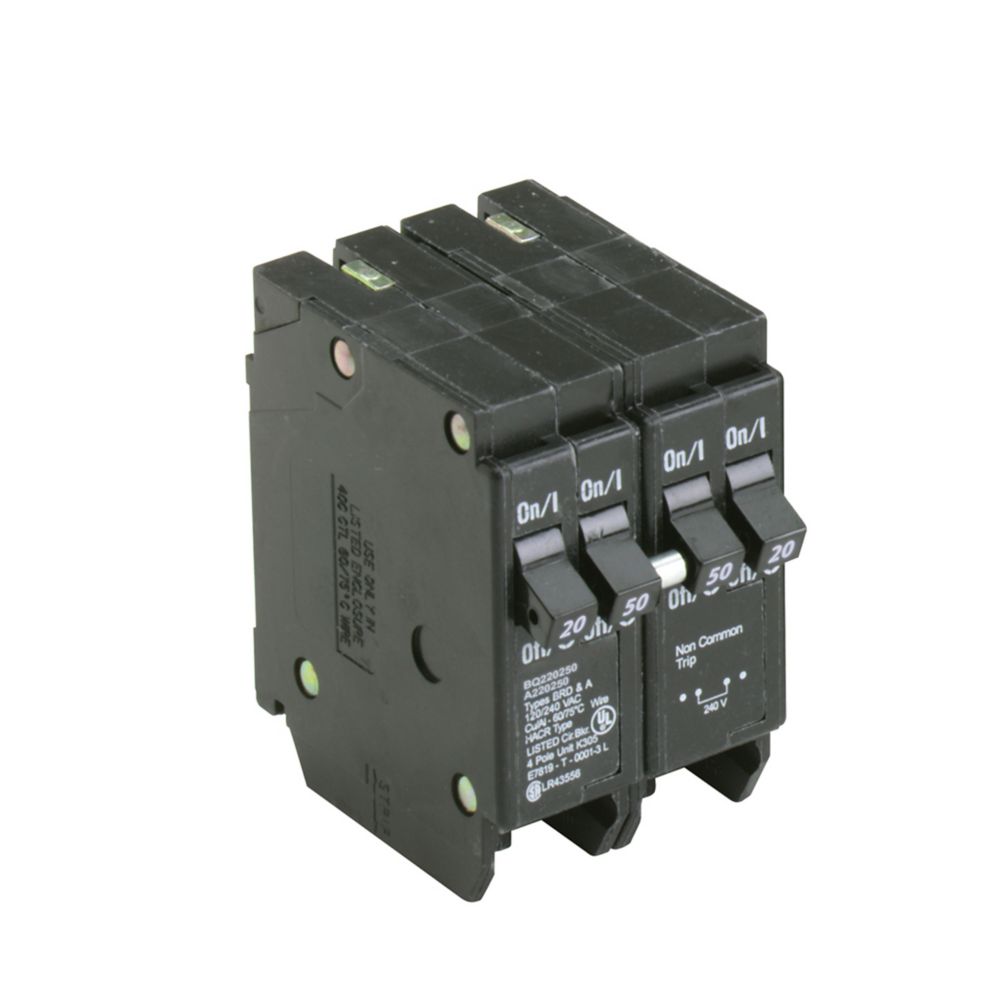

The Eaton BQ220250 is a BR series thermal magnetic circuit breaker designed for compact branch circuit protection in Type BR loadcenters. This quadplex breaker combines one two-pole 20 A breaker and one two-pole 50 A breaker within a single 1-inch CTL plug-on format. It operates at 120/240 V and provides a 10 kAIC interrupting capacity with independent trip functionality for each pole set.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | BQ220250 |
| Subcategory | Molded Case Circuit Breaker |
| Series | BR |
| Breaker Type | Type BQ |
| Configuration | Quadplex (2P 20A + 2P 50A) |
| Voltage Rating | 120/240 V |
| Interrupt Rating | 10 kAIC |
| Trip Type | Independent |
| Number of Poles | 4 |
| Mounting Method | Plug-on |
| Compatible Loadcenters | Type BR |
| Wire Size Range | #14–#4 AWG Cu/Al |
| Special Features | Rejection tab (CTL) |
| Product Depth | 2 in |
| Product Height | 2.6 in |
| Product Width | 3.1 in |
| Weight | 0.75 lb |
Information About BQ220250
The BQ220250 is an Eaton-manufactured BQ series circuit breaker engineered for space-efficient circuit distribution in BR loadcenters. It utilizes a quadplex design that allows multiple circuits to be installed in a single breaker position while maintaining independent trip operation. The breaker incorporates a CTL rejection tab to ensure compliance with loadcenter circuit limitations. It is commonly used in residential and light commercial panels where circuit density and flexibility are required.
Key Features
- BQ Quadplex Configuration: Combines one two-pole 20 A breaker and one two-pole 50 A breaker into a single compact unit.
- Independent Trip Operation: Ensures each pole pair responds individually to overcurrent conditions for reliable protection.
- 120/240 V Compatibility: Designed for split-phase electrical distribution systems.
- 10 kAIC Interrupt Capacity: Provides dependable short-circuit protection for standard residential and light commercial installations.
- CTL Rejection Tab Feature: Prevents improper installation and supports code-compliant loadcenter configurations.
- Plug-On Mounting Design: Enables fast installation and secure electrical connection in Type BR loadcenters.
- Wide Conductor Compatibility: Accepts copper or aluminum conductors from #14 to #4 AWG.
The BQ220250 delivers the reliability and precision required for high-density circuit protection in Eaton BR electrical distribution systems.
