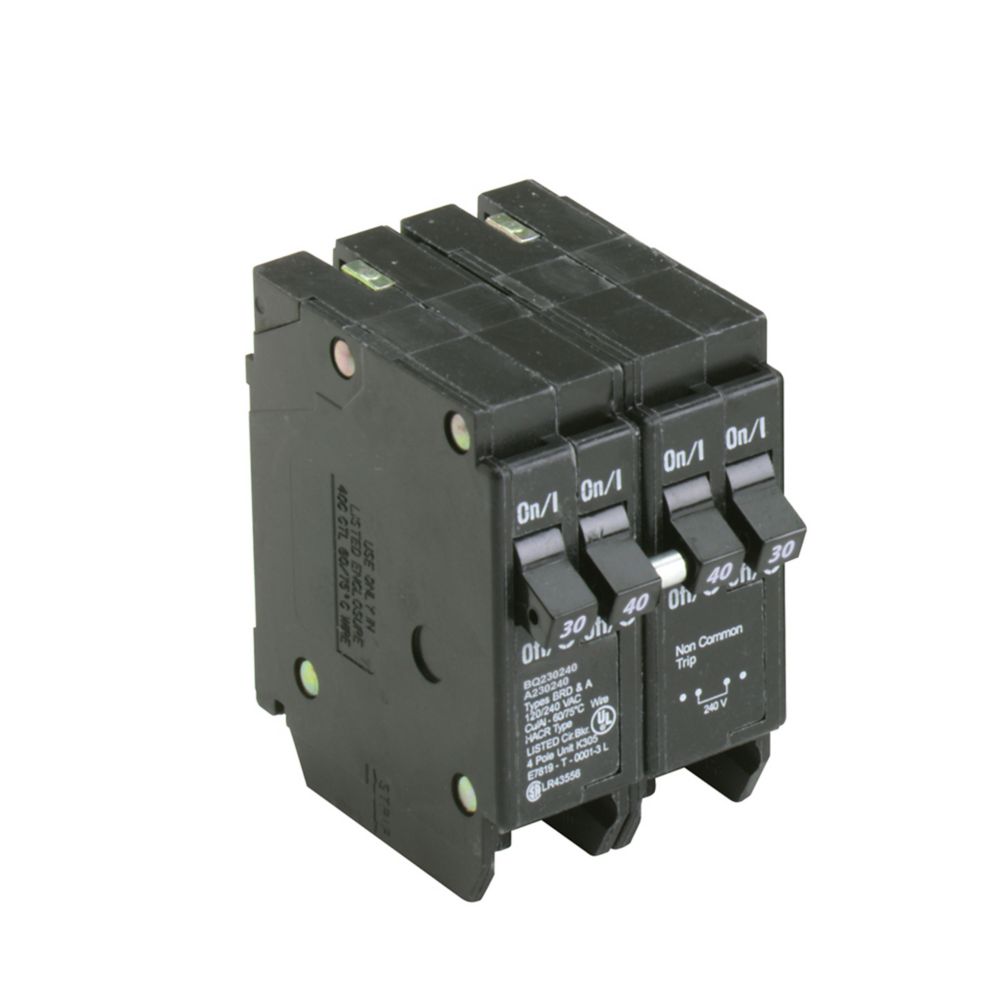

BQ230240 | Eaton BR Thermal Magnetic Circuit Breaker
- Regular price
- $85.00
- Sale price
- $85.00
- Regular price
-
Do you need more quantity?
Product Description P/N: BQ230240
Description
Eaton BR thermal magnetic circuit breaker, Type BQ 1-Inch CTL plug-on circuit breaker, includes rejection tab feature. Configuration: (1) Two-Pole 30 A, (1) Two-Pole 40 A. Interrupt rating: 10 kAIC. Four-pole, 120/240V. Suitable for Type BR Loadcenters. Compatible wire sizes: #14-4 AWG Cu/Al. Quantity per set: Q28. Circuit breaker type: BQ. Independent operation.
Technical Specifications
Product Name |
Eaton BR thermal magnetic circuit breaker |
Catalog Number |
BQ230240 |
UPC |
786676371056 |
Length/Depth |
3.5 in |
Height |
3.1 in |
Width |
2.5 in |
Weight |
2.5 lb |
Type |
Type BQ 1-Inch CTL plug-on circuit breaker |
Special Features |
Includes rejection tab feature |
Amperage Rating |
(1) Two-Pole 30A, (1) Two-Pole 40A |
Voltage Rating |
120/240 V |
Trip Type |
Independent |
Circuit Breaker Type |
BQ |
Used With |
Type BR Loadcenters |
Mounting Method |
Plug-on |
Interrupt Rating |
10 kAIC |
Main Circuit Breaker |
BQ |
Wire Size |
#14-4 AWG Cu/Al |
Number of Poles |
Four-pole |
Quantity |
28 |
Information About BQ230240
The BQ230240 is a thermal magnetic circuit breaker manufactured by Eaton. It belongs to the BR series and is designed as a Type BQ 1-Inch CTL plug-on circuit breaker. Notably, it incorporates a rejection tab feature, enhancing its functionality and compatibility. This circuit breaker configuration consists of one two-pole 30 A breaker and one two-pole 40 A breaker, providing versatile options for electrical systems.
With an interrupt rating of 10 kAIC, the BQ230240 is capable of handling short-circuit conditions effectively, ensuring reliable protection for connected equipment and circuits. Operating at 120/240 V, this circuit breaker is suitable for various applications requiring standard voltage levels.
Characterized as a four-pole configuration, the BQ230240 offers comprehensive circuit protection across multiple phases, enhancing the safety and reliability of electrical installations. Its independent trip feature ensures that each pole operates autonomously, minimizing the risk of widespread disruptions in the event of a fault.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
