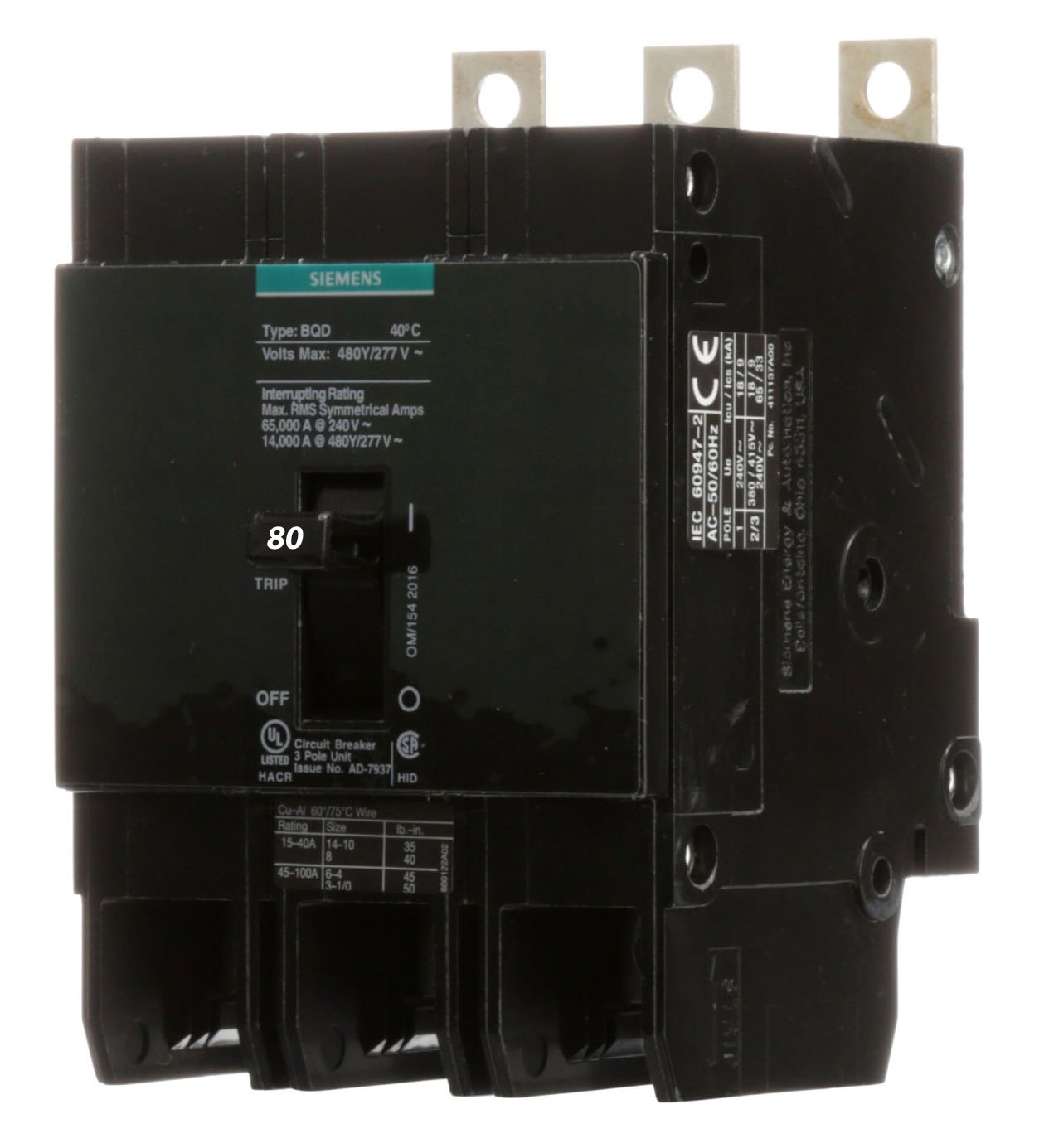

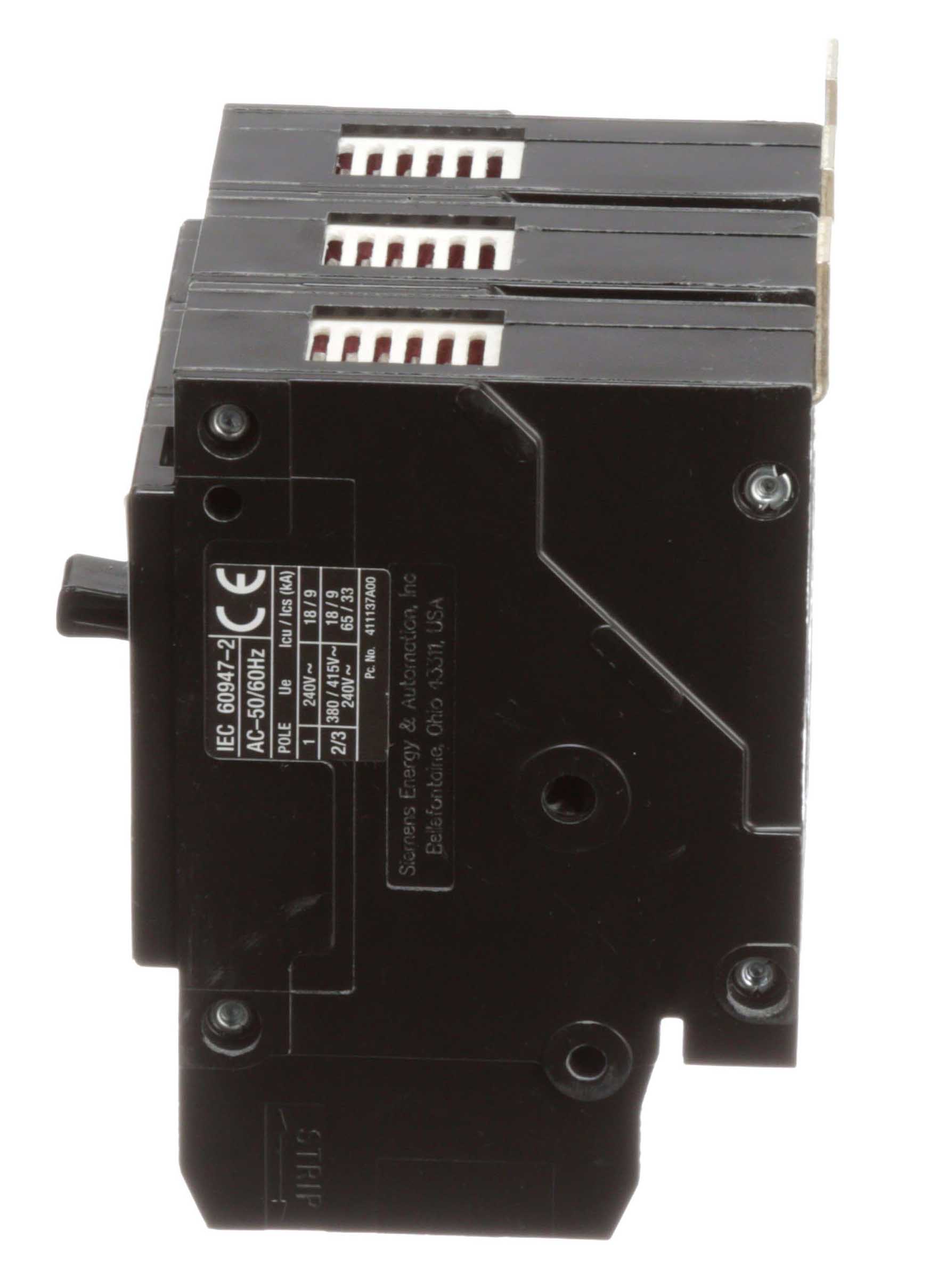

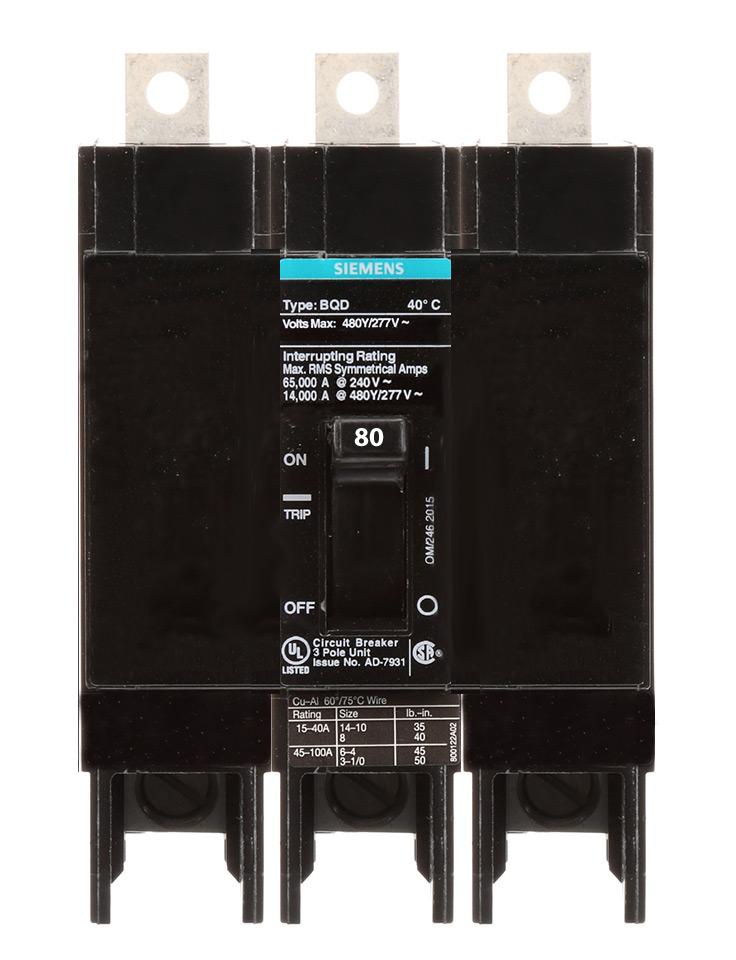

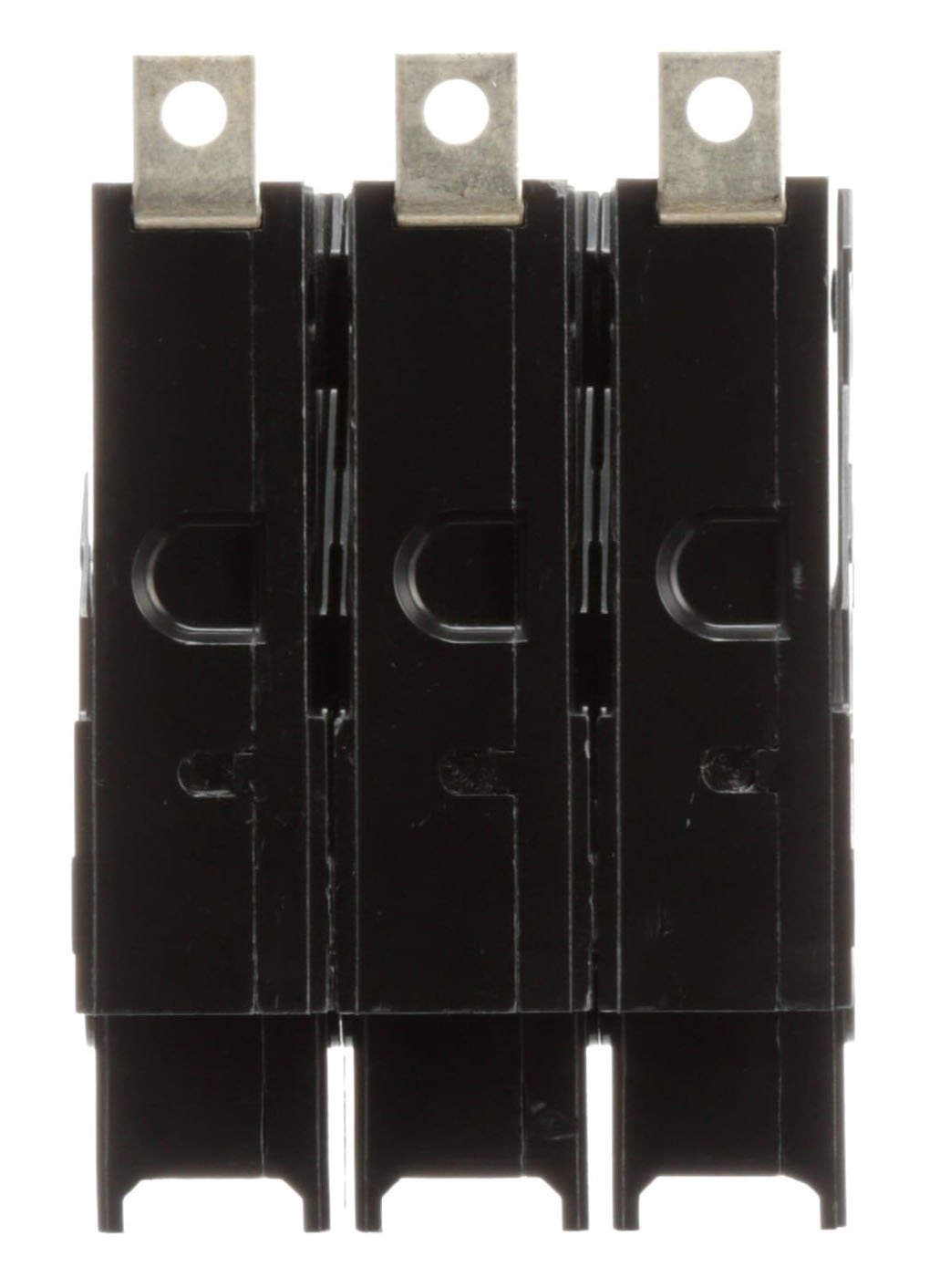

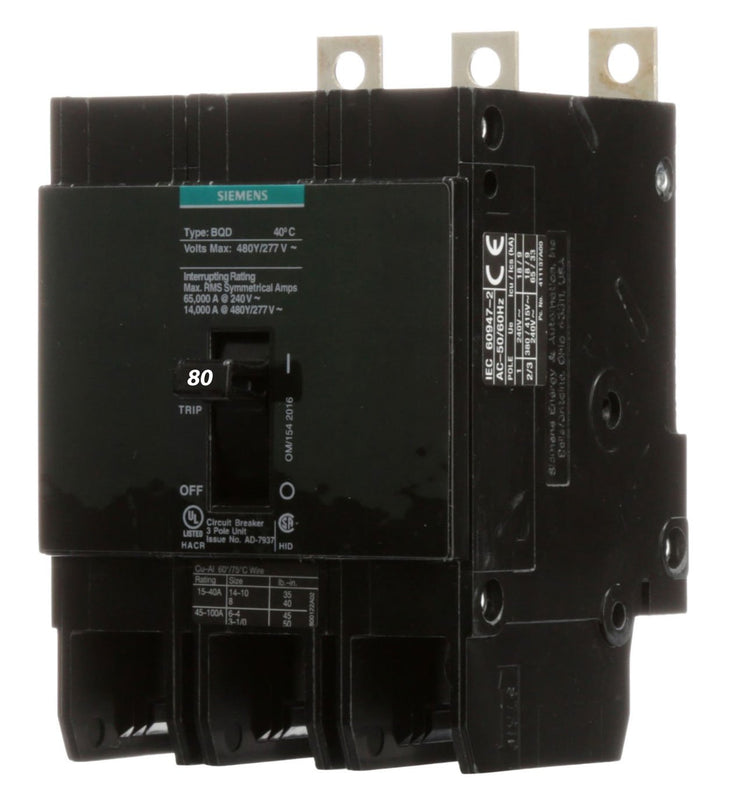

BQD380 | Siemens 80A 3-Pole 480V Molded Case Circuit Breaker Bolt-On 14kA
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BQD380
Description
The Siemens BQD380 is a 3-pole molded case circuit breaker engineered for dependable overcurrent and short-circuit protection in commercial and industrial electrical systems. Rated for 80 amps at 480 volts, it features a 14kA interrupting capacity and a bolt-on connection for secure installation. This breaker provides reliable performance through its thermal magnetic protection system, ensuring consistent operation under demanding electrical loads.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Siemens |
| Category | Circuit Breaker |
| Part Number | BQD380 |
| Subcategory | Molded Case |
| Series | BQD Series |
| Type | BQD |
| Amperage Rating | 80 A |
| Voltage Rating | 480 VAC |
| Phase | 3 |
| Poles | 3 |
| Interrupting Rating | 14kA@480V |
| Trip Type | Thermal Magnetic |
| Functions | LI – Long-Time and Instantaneous |
| Connection Type | Bolt-On |
| Mounting Type | Panel |
| Frame Size | 100A Frame |
| Wire Size Range | 6 AWG to 1/0 AWG |
| Frequency Rating | 50/60 Hz |
| Temperature Rating | 40°C |
| Standards | UL 489, CSA-C22.2 |
| Country of Origin | Mexico |
| Dimensions | 4 in L × 3 in W × 3 in H |
| Weight | 1.65 lbs |
Information About BQD380
The BQD380 is part of the Siemens BQD Series, a family of molded case circuit breakers designed for precision, safety, and efficiency in modern electrical distribution systems. Built with a thermal magnetic trip mechanism, it offers both long-time and instantaneous protection, suitable for a wide range of three-phase applications. The breaker mounts easily in Siemens P1 panelboards using a bolt-on configuration, providing stable electrical connections. Manufactured to UL 489 and CSA-C22.2 standards, the BQD380 delivers proven quality and compliance for commercial-grade installations.
Key Features:
- High Interrupting Rating: Rated 14kA@480V for dependable fault protection.
- Thermal Magnetic Protection: Combines overload and short-circuit defense in one unit.
- Three-Pole Configuration: Supports 3-phase, 480V AC systems for balanced power control.
- Bolt-On Mounting: Ensures secure installation and reliable electrical contact.
- Compact Frame Size: 100A frame for space-efficient panelboard integration.
- Versatile Wiring: Accepts 6 AWG to 1/0 AWG wire sizes for flexible installation.
- UL and CSA Certified: Complies with major North American safety standards.
- Durable Construction: Designed for consistent performance in commercial and industrial settings.
The BQD380 delivers the reliability and precision required for high-performance electrical distribution and circuit protection applications.
