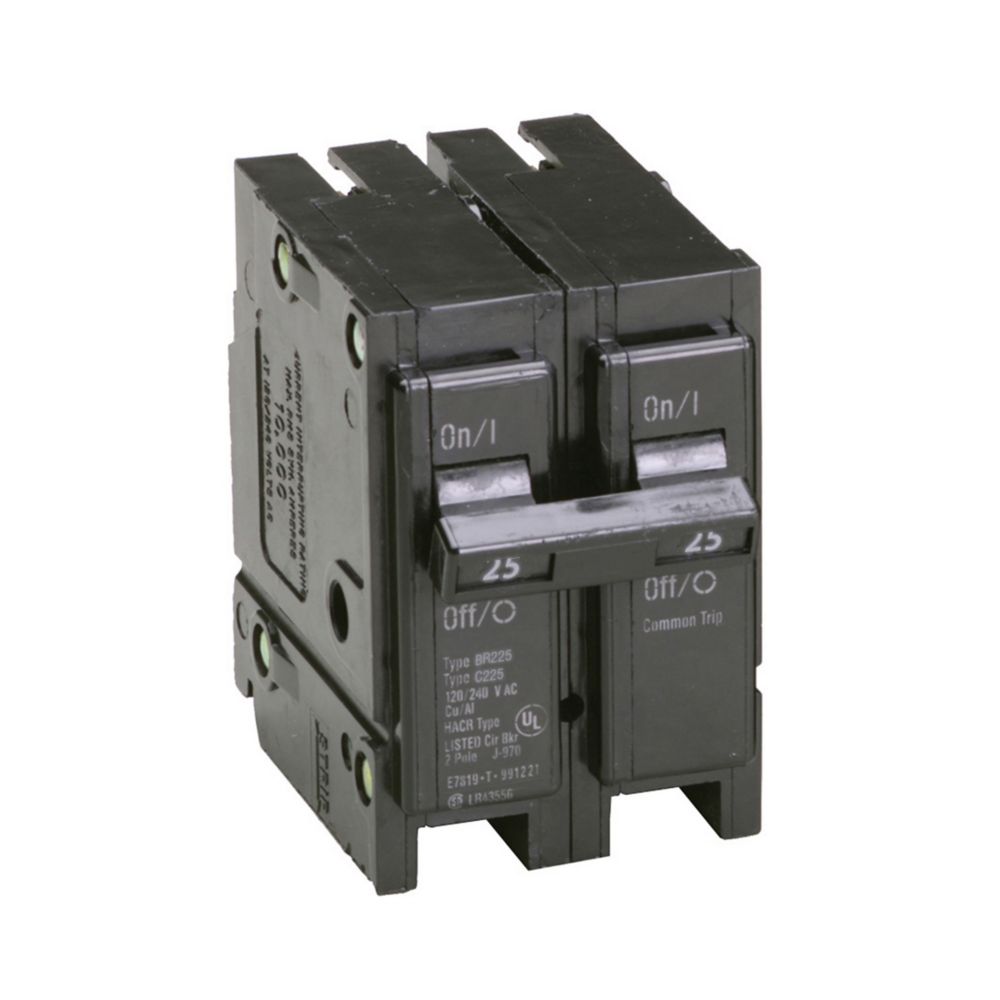

BR225 | Eaton BR Thermal Magnetic Circuit Breaker
- Regular price
- $44.00
- Sale price
- $44.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BR225
Description
The BR225 is an Eaton BR thermal magnetic circuit breaker. It is a type BR 1-inch plug-on circuit breaker with a current rating of 25A. The breaker has a 10 kAIC interrupt capacity and operates with a voltage rating of 120/240V. It features a two-pole configuration and includes a common breaker trip mechanism. The BR225 accepts wire sizes ranging from #14 to #4 AWG copper or aluminum. It is designed for use in type BR load centers.
Technical Specifications
|
Product Name |
Eaton BR thermal magnetic circuit breaker |
|
Catalog Number |
BR225 |
|
UPC |
786676362900 |
|
Product Length/Depth |
1.9 in |
|
Product Height |
2.5 in |
|
Product Width |
2 in |
|
Product Weight |
0.5 lb |
|
Type |
Type BR 1-Inch plug-on circuit breaker |
|
Amperage Rating |
25 A |
|
Voltage Rating |
120/240 V |
|
Trip Type |
Common breaker trip |
|
Circuit Breaker Type |
BR |
|
Used With |
Type BR Loadcenters |
|
Mounting Method |
Plug-on |
|
Interrupt Rating |
10 kAIC |
|
Main Circuit Breaker |
BR |
|
Wire Size |
#14-4 AWG Cu/Al |
|
Number of Poles |
Two-pole |
|
Quantity |
28 |
Information About BR225
The BR225 is a thermal magnetic circuit breaker manufactured by Eaton. It is categorized as a Type BR 1-inch plug-on circuit breaker. With an amperage rating of 25 A, it is designed to handle electrical currents within this range. The breaker possesses an interrupt rating of 10 kAIC, indicating its capability to interrupt fault currents up to 10,000 amperes, ensuring effective protection against short circuits.
This circuit breaker features a two-pole configuration, suitable for applications requiring dual-pole protection. It operates at a voltage rating of 120/240V, making it compatible with standard electrical systems operating within this voltage range. The BR225 incorporates a common breaker trip mechanism, ensuring simultaneous tripping of both poles in response to an overcurrent condition.
Designed for use with Type BR load centers, the BR225 breaker is intended for installation in electrical panels or distribution boards compatible with Eaton's BR series components. It employs a plug-on mounting method, facilitating quick and convenient installation without the need for additional tools or equipment.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
