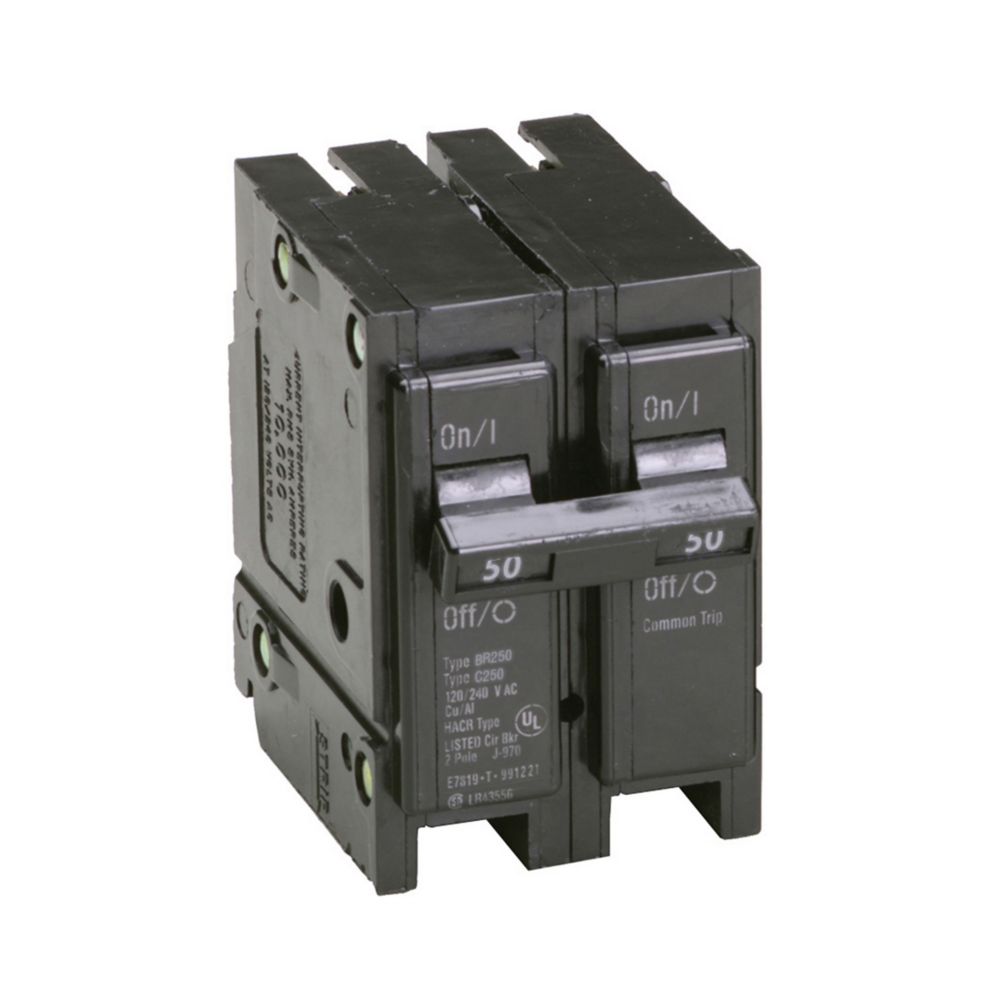

BR250 | Eaton BR Thermal Magnetic Circuit Breaker
- Regular price
- $39.00
- Sale price
- $39.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BR250
Description
Cutler-Hammer BR series double pole single phase 50 ampere plug-on molded case circuit breaker with maximum voltage rating of 240V trip type thermal magnetic and high interrupting rating of 10 kiloampere at 240V functions long-time and instantaneous.
Technical Specifications
| Brand | Eaton |
| Category | Circuit Breaker |
| Part Number | BR250 |
| Subcategory | Load Center Circuit Breaker |
| Series | Series BR |
| Commercial/ Residential | Commercial/Residential |
| Voltage Rating | 120/240 VAC |
| Amperage Rating | 50 A |
| Interrupt Rating | 10 kA |
| Trip Type | Common, Thermal Magnetic |
| Number of Poles | 2 |
| Actuator Type | Toggle Handle |
| Wire Size | 14 - 4 AWG Aluminum/Copper |
| Mounting Type | Plug-On |
| Temperature Rating | 60 - 75 deg C |
| Dimensions | 3 Inch L x 2 Inch W x 3 Inch H |
Information About BR250
The Eaton BR250 is a thermal magnetic circuit breaker from the Cutler Hammer Series BR, designed for both commercial and residential applications. Operating at 120/240 VAC with a 50-ampere rating, it provides reliable protection for electrical systems.
Featuring a common thermal magnetic trip mechanism, the BR250 effectively safeguards against overloads and short circuits. Its two-pole configuration ensures comprehensive protection across both phases of the electrical system.
With a 10kA interrupt rating, this breaker can safely handle high fault currents, enhancing system safety. The toggle handle actuator allows for easy manual operation, while the plug-on mount design ensures quick and secure installation.
The BR250 accommodates 14 to 4 AWG aluminum or copper wire, offering flexibility in wiring options. It operates efficiently within a temperature range of 60 to 75 degrees Celsius, making it suitable for a variety of environments.
Measuring 3 inches in length, 2 inches in width, and 3 inches in height, the BR250's compact design facilitates easy integration into electrical panels. Overall, this Eaton circuit breaker combines robust protection with user-friendly features, ensuring the safety and reliability of electrical circuits in both commercial and residential settings.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
