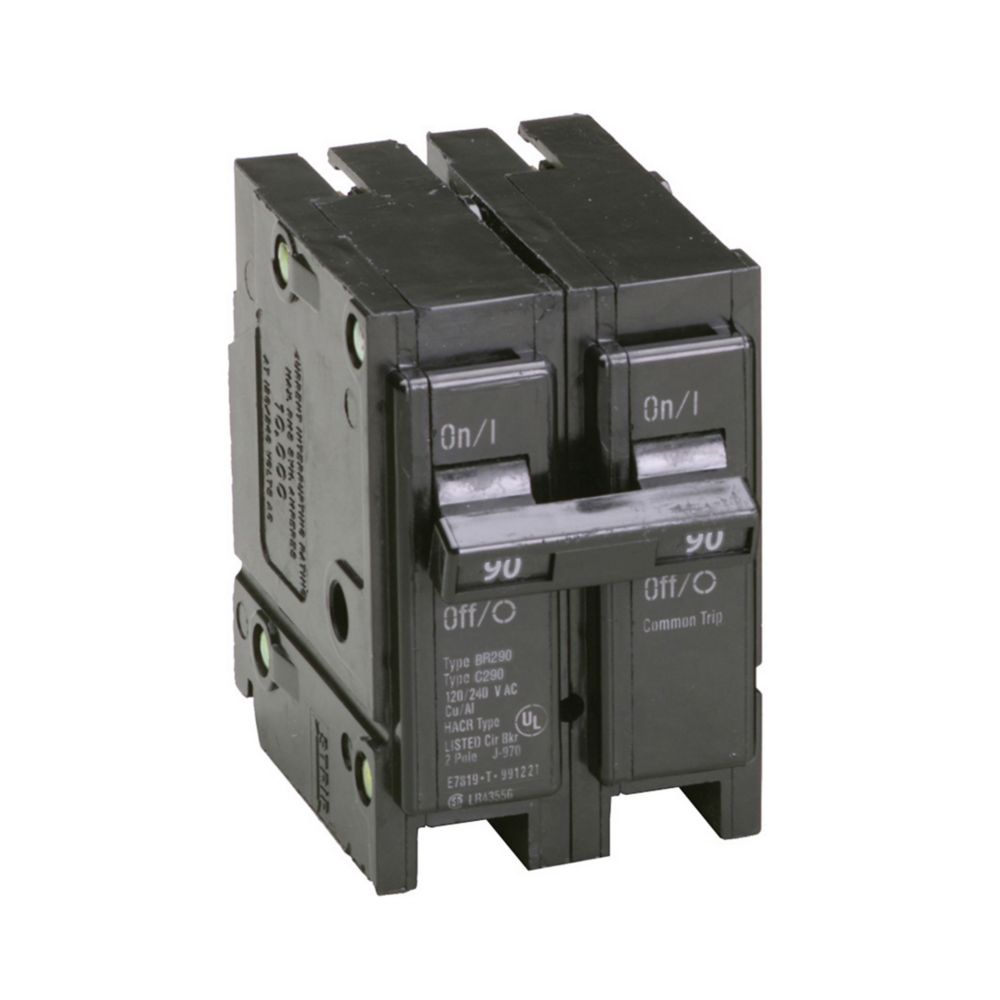

BR290 | Eaton BR Thermal Magnetic Circuit Breaker
- Regular price
- $105.00
- Sale price
- $105.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BR290
Description
The BR290 is a thermal magnetic circuit breaker manufactured by Eaton, categorized under the Type BR series. This 1-inch plug-on circuit breaker is designed for use in residential applications. It features a current rating of 90 amperes (A) and has an interrupting capacity of 10 kiloamperes (kAIC). Operating as a two-pole unit, it accommodates 120/240 volts (V) electrical systems. The BR290 is compatible with Type BR load centers and employs common breaker trip functionality. It accepts wire sizes ranging from #8 to 1/0 AWG for both copper and aluminum conductors, ensuring versatile installation options.
Technical Specifications
|
Model Number |
BR290 |
|
Compatible Loadcenters |
Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline |
|
Family |
BR Plug-in breaker |
|
Poles |
2 |
|
Ampere Rating |
90 A |
|
Voltage Rating |
120V/240V |
|
Connection |
Plug-in |
|
Phase |
1 |
|
Dimensions (H x W x L) |
3" x 2" x 3" (76.2 mm x 50.8 mm x 76.2 mm) |
|
Interrupting Capacity |
10,000/22,000 A |
|
Note |
Authentic Eaton Product, CSA Approved and UL Listed |
Information About BR290
The BR290, manufactured by Eaton, is a thermal magnetic circuit breaker falling under the Type BR series. Designed as a 1-inch plug-on circuit breaker, it is engineered to provide circuit protection in various electrical systems. With a current rating of 90 amperes (A) and an interrupting capacity of 10 kiloamperes (kAIC), it ensures reliable performance under load. Operating as a two-pole unit, it is suitable for utilization in 120/240 volts (V) electrical configurations.
The BR290 is specifically engineered to be compatible with Type BR load centers, facilitating seamless integration into existing electrical setups. Employing common breaker trip functionality, it ensures simultaneous disconnection in response to fault conditions, enhancing safety and system reliability.
In terms of installation flexibility, the BR290 supports wire sizes ranging from #8 to 1/0 AWG for both copper and aluminum conductors. This broad compatibility enables versatile deployment across a spectrum of applications, accommodating various wiring configurations and requirements.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
