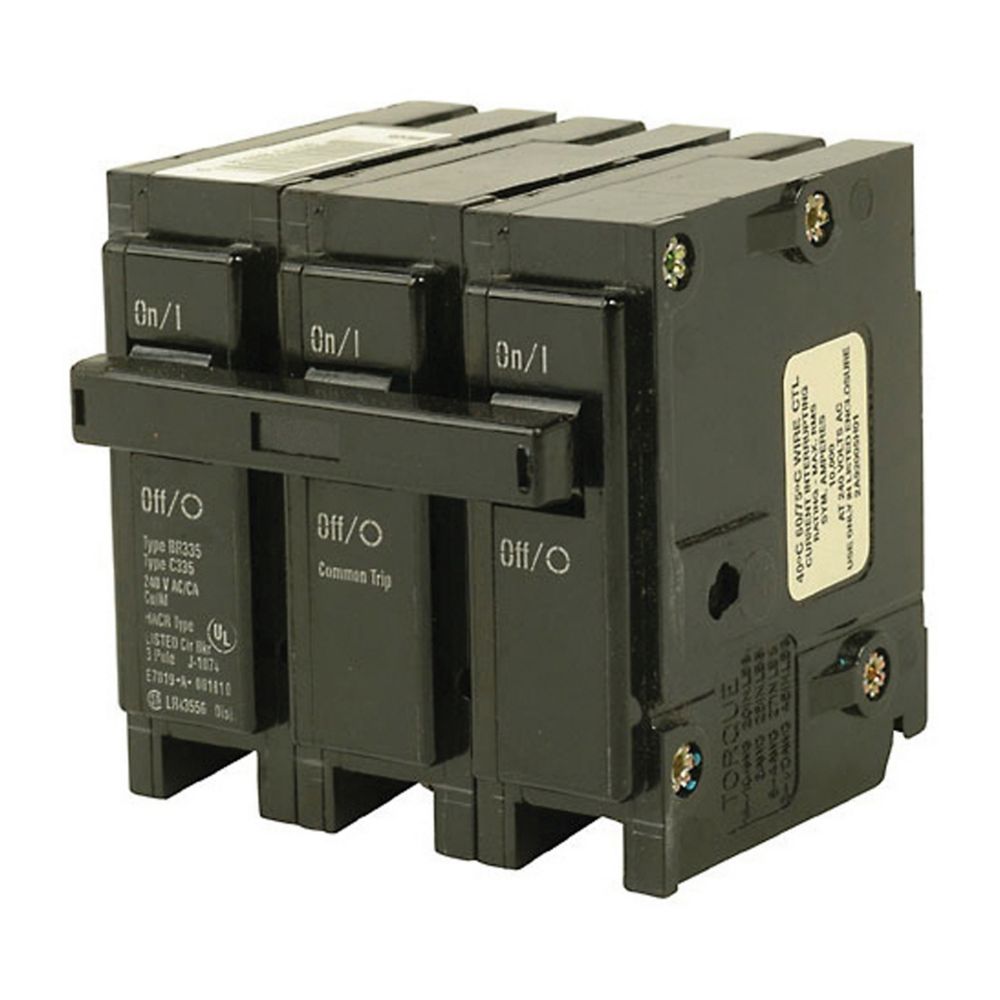

BR3100 | Eaton Thermal Magnetic Circuit Breaker
- Regular price
- $184.00
- Sale price
- $184.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BR3100
Description
The BR3100 is a thermal magnetic circuit breaker manufactured by Eaton. Classified as Type BR, it is designed as a 1-Inch plug-on circuit breaker with a current rating of 100 A and an interrupting capacity of 10 kAIC. Configured as a three-pole breaker, it operates at a voltage of 120/240V. The breaker features common breaker trip functionality and is compatible with #1 AWG Cu/Al wiring. It conforms to Q28 standards and is compatible with Type BR Loadcenters.
Technical Specifications
|
Product Name |
Eaton BR thermal magnetic circuit breaker |
|
Catalog Number |
BR3100 |
|
UPC |
786676368094 |
|
Product Length/Depth |
3 in |
|
Product Height |
2.5 in |
|
Product Width |
2.9 in |
|
Product Weight |
1.1 lb |
|
Certifications |
UL 489 TYPE |
|
Amperage Rating |
100 A |
|
Voltage Rating |
120/240 V |
|
Trip Type |
Common breaker trip |
|
Circuit Breaker Type |
BR |
|
Used With |
Type BR Loadcenters |
|
Mounting Method |
Plug-on |
|
Interrupt Rating |
10 kAIC |
|
Main Circuit Breaker |
BR |
|
Wire Size |
#1 AWG Cu/Al |
|
Number of Poles |
Three-pole |
|
Quantity |
28 |
Information About BR3100
The BR3100, manufactured by Eaton, is a thermal magnetic circuit breaker characterized by its technical specifications. Classified as a Type BR 1-Inch plug-on circuit breaker, it possesses a current rating of 100 A and an interrupting capacity of 10 kAIC. Configured with three poles, it operates within a voltage range of 120/240V. The breaker conforms to Type BR standards and is equipped with a common breaker trip feature.
This circuit breaker is designed for use with #1 AWG Cu/Al wiring and is certified to adhere to Q28 standards. It is specifically compatible with Type BR Loadcenters, providing versatility in its application. With a mounting method of plug-on, installation and removal are facilitated, enhancing operational efficiency.
The BR3100 circuit breaker is engineered to ensure reliable performance and safety within electrical systems. Its thermal magnetic operation allows for effective protection against overcurrent conditions, safeguarding connected circuits and equipment. The breaker's interrupt rating of 10 kAIC denotes its capability to interrupt fault currents under specified conditions, contributing to system resilience.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
