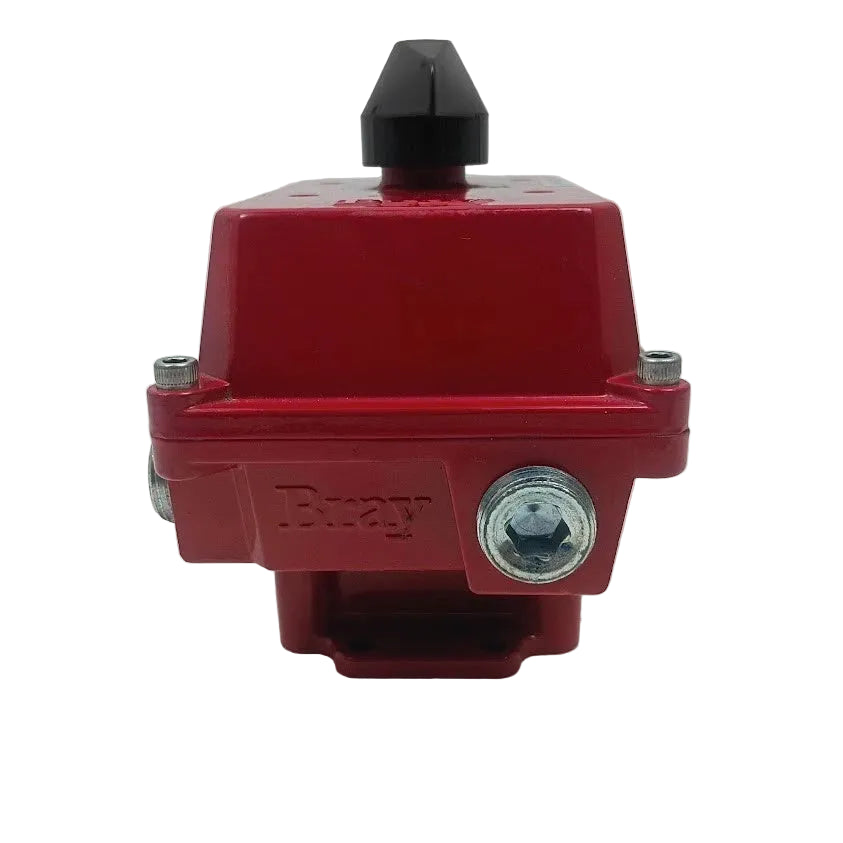

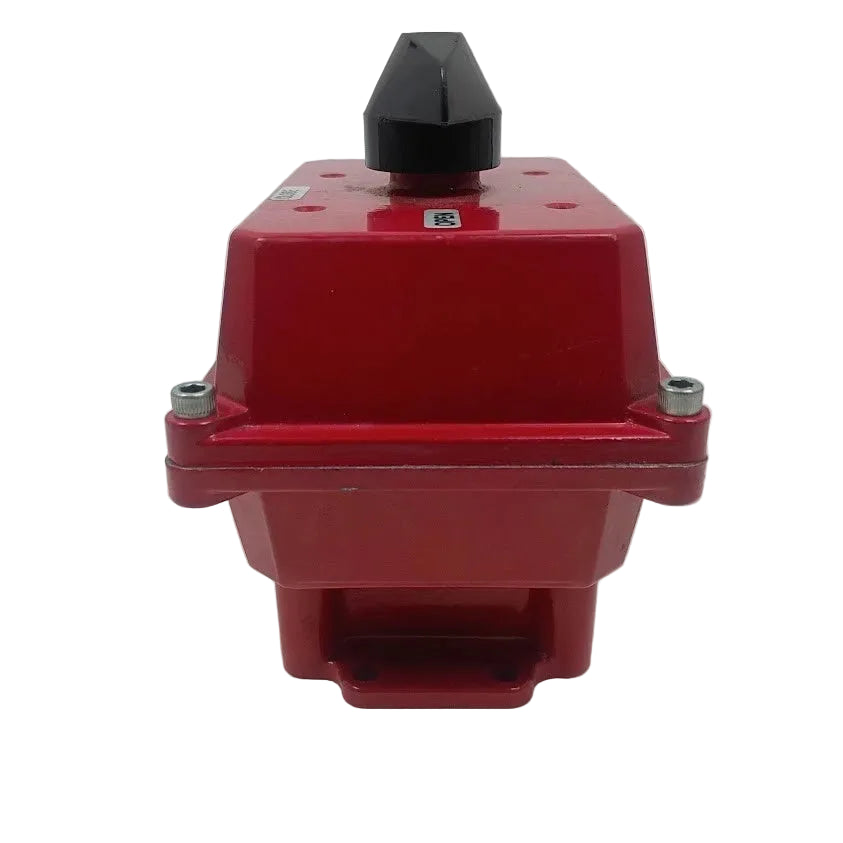

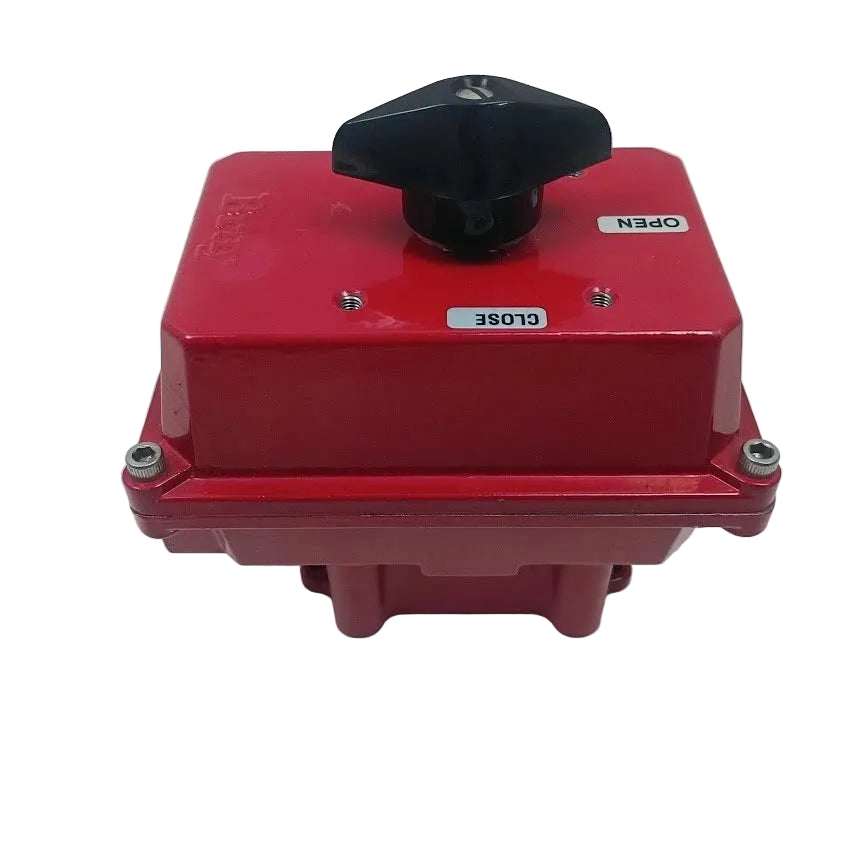

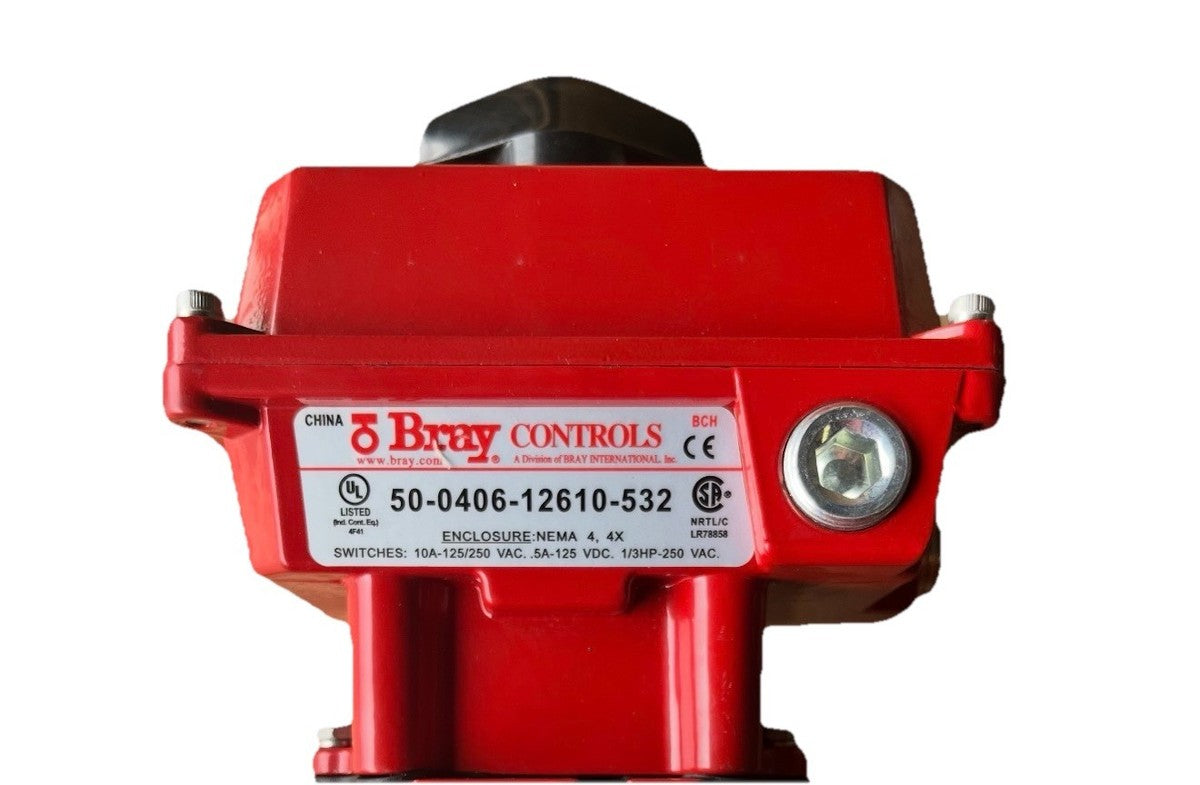

Bray 50-0406-12610-532 Series 50 Valve Status Monitor Limit Switch
- Regular price
- $589.00
- Sale price
- $589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 50-0406-12610-532
Description
Bray 50-0406-12610-532 is a Series 50 valve status monitor and limit switch designed to provide mechanical valve position feedback in automated process systems. It uses an industrial NEMA 4/4X enclosure and electrical limit switches to indicate actuator and valve open/closed positions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Bray |
| Category | Sensors & Switches |
| Part Number | 50-0406-12610-532 |
| Subcategory | Limit Switches |
| Series | Series 50 |
| Product Type | Valve Status Monitor / Limit Switch |
| Enclosure Rating | NEMA 4 / 4X |
| Housing Material | Die-Cast Aluminum |
| AC Contact Rating | 10A at 125/250VAC |
| DC Contact Rating | 0.5A at 125VDC |
| Horsepower Rating | 1/3 HP at 250VAC |
| Position Feedback | Valve Open / Closed Status |
| Cam Adjustment | Individually Adjustable |
| Field Wiring | Internal Terminal Block |
| Conduit Entries | 2 |

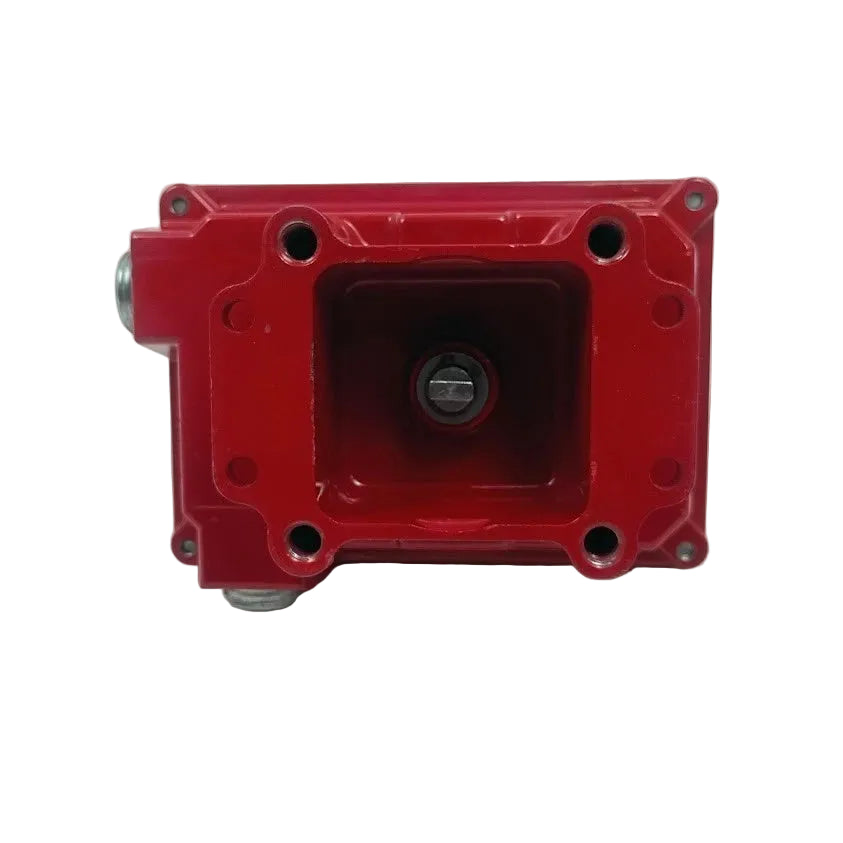

| Mounting Interface | NAMUR VDI/VDE 3845 |
| Product Status | Discontinued / Obsolete |
| Weight | 2.15 lbs |
Information About 50-0406-12610-532
The 50-0406-12610-532 is a Bray Controls Series 50 valve status monitor designed for direct integration with automated valve actuators. Its die-cast aluminum housing protects the internal switching and position-monitoring components while providing a waterproof NEMA 4/4X configuration. Adjustable cams operate the internal limit switches according to actuator shaft position, allowing external control systems to identify valve operating status. The unit supports direct actuator mounting through a NAMUR VDI/VDE 3845 interface and provides two conduit entries for field wiring.
Key Features:
- Valve Position Monitoring: Provides electrical feedback corresponding to valve and actuator position.
- Series 50 Design: Part of the Bray Series 50 industrial valve status monitoring platform.
- NEMA 4/4X Enclosure: Protects internal components against water, dust, and corrosive environmental exposure.
- Adjustable Cam System: Individual switch cams can be adjusted from the top without specialized tools.
- Pre-Wired Switches: Internal switches connect to an accessible terminal block for field wiring.
- Dual Conduit Entries: Provides two wiring entry points for flexible electrical installation.
- NAMUR Mounting Interface: Supports direct actuator installation using the VDI/VDE 3845 mounting standard.
- Industrial Switch Ratings: Rated for switching loads including 10A at 125/250VAC and 0.5A at 125VDC.
The 50-0406-12610-532 delivers the reliability and precision required for valve position detection and actuator status feedback in industrial process-control systems.
