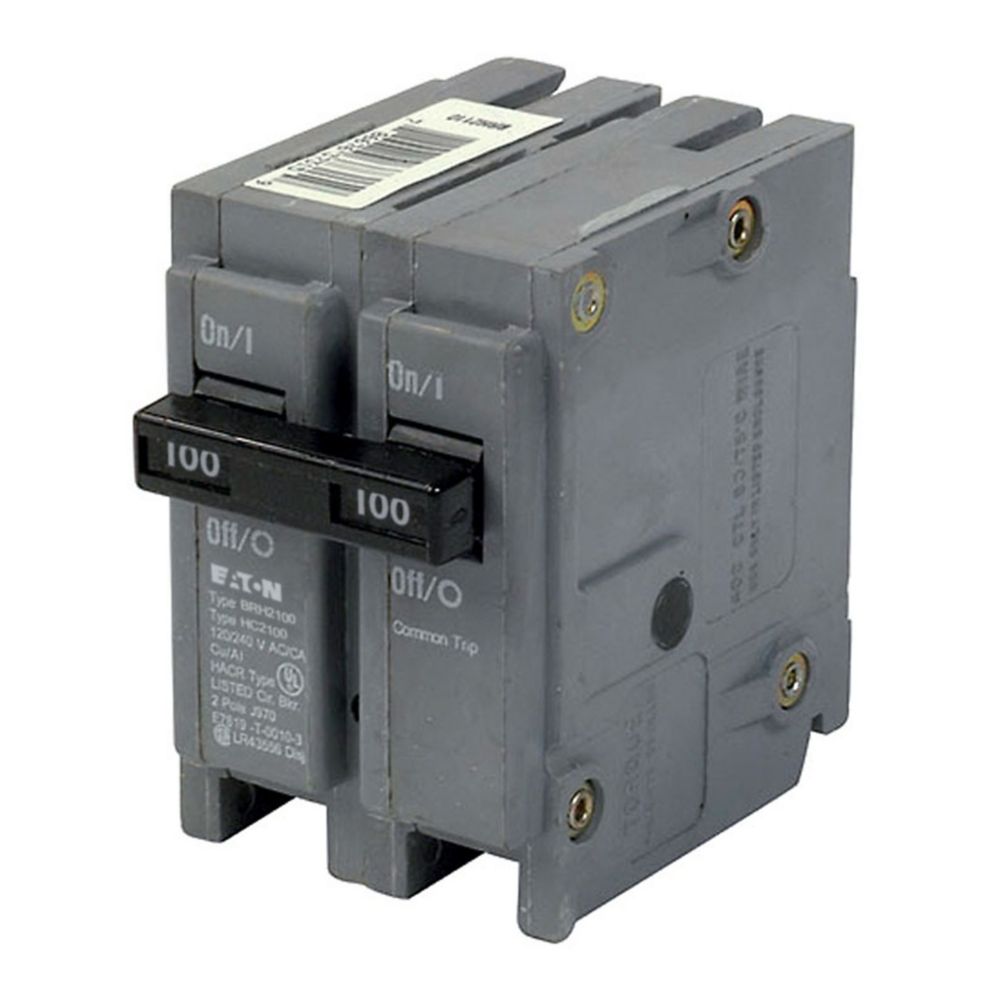

BRH2100 | Eaton BR Thermal Magnetic Circuit Breaker
- Regular price
- $85.00
- Sale price
- $85.00
- Regular price
-
Do you need more quantity?
Product Description P/N: BRH2100
Description
The BRH2100 is a two-pole Eaton BR thermal magnetic circuit breaker designed for use in Type BR 1-inch plug-on circuit breaker configurations. With a current rating of 100 A and an interrupting capacity of 22 kAIC, it provides reliable overcurrent protection. This circuit breaker is suitable for use in 120/240V systems. It features a common breaker trip mechanism and accepts #4-1/0 AWG Cu/Al wires. The BRH2100 is specifically compatible with Type BR Loadcenters.
Technical Specifications
Product Name |
Eaton BR thermal magnetic circuit breaker |
Catalog Number |
BRH2100 |
UPC |
786676373906 |
Dimensions |
|
* Length/Depth |
2 in (50.8 mm) |
* Height |
2.5 in (63.5 mm) |
* Width |
2.9 in (73.6 mm) |
Weight |
0.7 lb (0.32 kg) |
Type |
Type BR 1-Inch plug-on circuit breaker |
Amperage Rating |
100 A |
Voltage Rating |
120/240 V |
Trip Type |
Common breaker trip |
Circuit Breaker Type |
BR |
Compatible Loadcenters |
Type BR Loadcenters |
Mounting Method |
Plug-on |
Interrupt Rating |
22 kAIC |
Main Circuit Breaker Designation |
BRH |
Compatible Wire Size |
#4-1/0 AWG Cu/Al |
Number of Poles |
Two-Pole |
Information About BRH2100
The BRH2100 is a thermal magnetic circuit breaker manufactured by Eaton, designed specifically for use in Type BR 1-inch plug-on circuit breaker configurations. With a current rating of 100 A and an interrupting capacity of 22 kAIC, it ensures effective overcurrent protection. This circuit breaker is a two-pole configuration suitable for application in electrical systems operating at 120/240V. It features a common breaker trip mechanism and accepts wires ranging from #4 to 1/0 AWG Cu/Al. The BRH2100 model is compatible with Type BR Loadcenters.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
