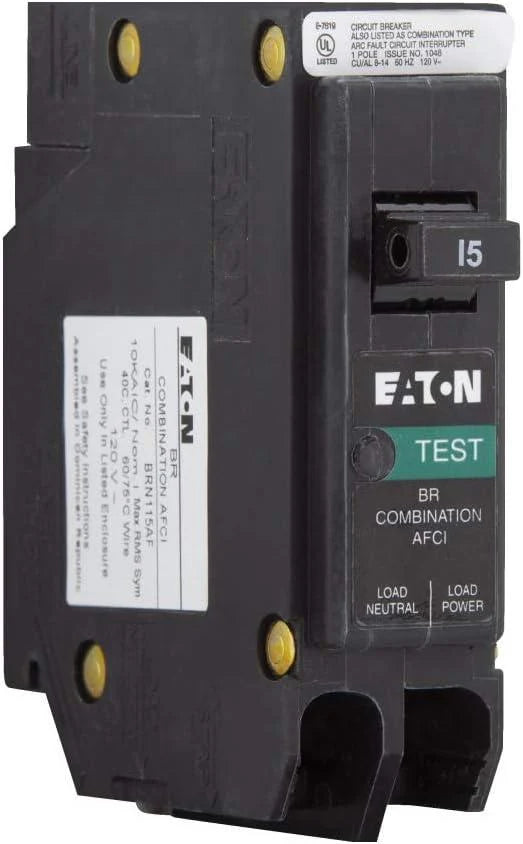

BRN115AF | Eaton Molded Case Circuit Breaker
- Regular price
- $99.00
- Sale price
- $99.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BRN115AF
Description
The BRN115AF is a molded case circuit breaker manufactured by Eaton. It belongs to the Type BR and Type BRN series and is configured as a single pole (1P) unit for single-phase (1PH) electrical systems. With a current rating of 15A and a voltage rating of 2V, it is designed to handle electrical loads within these specifications. The circuit breaker has a maximum interrupting capacity of 10kA at 120V. It features a plug-in mounting configuration and operates on a thermal magnetic principle, providing both long-time (LI) and instantaneous protection. The BRN115AF is housed in a molded case for durability and safety in circuit protection applications.
Technical Specifications
|
Part Number |
BRN115AF |
|
Manufacturer |
Eaton Cutler-Hammer |
|
Family |
Type BR |
|
Pole |
1 |
|
Amp |
15 |
|
Volt |
2 |
|
Phase |
1 |
|
Category |
Molded Case Breakers / 1-Pole |
|
Connection |
Plug-In |
|
Type |
BRN |
|
Functions |
NGC |
|
Protection |
Thermal Magnetic |
|
AIC Ratings |
10kA@120V |
Information About BRN115AF
The BRN115AF, manufactured by Eaton, is a Type BR and Type BRN molded case circuit breaker designed for various electrical applications. It is configured as a single pole (1P) unit suitable for single-phase (1PH) systems. With a current rating of 15A and a voltage rating of 2V, it is engineered to manage electrical loads within these parameters. The circuit breaker offers a maximum interrupting capacity of 10kA at 120V, ensuring effective protection against overloads and short circuits.
Featuring a plug-in connection, the BRN115AF facilitates convenient installation and maintenance procedures. It operates based on a thermal magnetic principle, providing both long-time (LI) and instantaneous protection. The incorporation of molded case technology enhances durability and safety, making it suitable for a wide range of circuit protection applications.
The BRN115AF circuit breaker conforms to industry standards and specifications, ensuring reliable performance and adherence to safety requirements. It is engineered to withstand the rigors of various electrical environments while maintaining optimal functionality.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
