Product Description P/N: BRNSURGE
Description

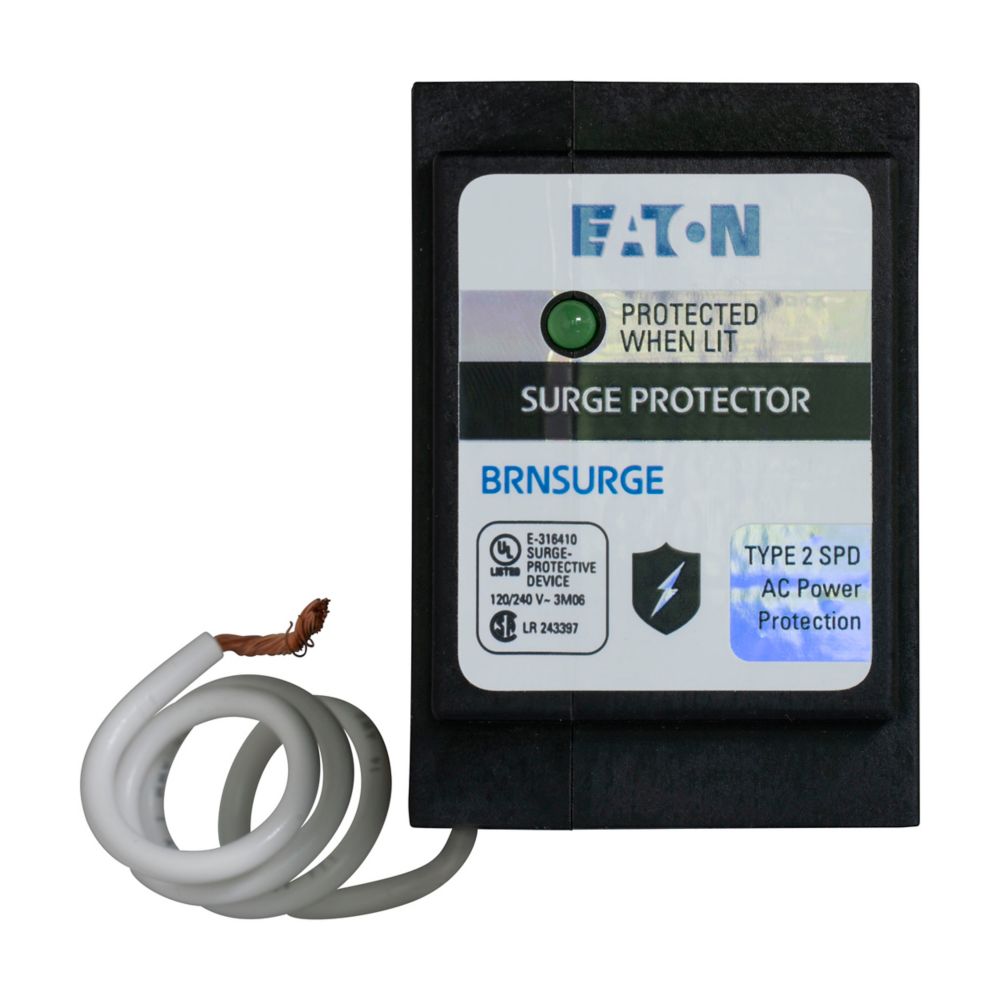

The Eaton BRNSURGE is a surge protective device designed for integration with Type BR circuit breaker panels. This two-pole plug-on module helps reduce the impact of transient overvoltages by diverting surge energy away from connected circuits. It supports reliable surge protection for electrical systems operating at standard line frequencies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Surge Protection Devices |
| Part Number | BRNSURGE |
| Subcategory | Panel-Mounted Surge Protective Devices |
| Product Type | Plug-on surge protective device |
| Compatible Breaker Type | Type BR |
| Number of Poles | 2 |
| Frequency Rating | 50/60 Hz |
| Interrupt Rating | 10 kAIC |
| Nominal Discharge Current | 3 kA |
| Surge Current Capacity | 18 kA |
| Protection Modes | L-N, L-L |
| Measured Limiting Voltage | 600 V |
| Maximum Continuous Operating Voltage | 150 V L-N / 300 V L-L |
| Short-Circuit Rating | 10 kA |
| Product Depth | 3.6 in |
| Product Height | 2.25 in |
| Product Width | 3.5 in |
| Weight | 0.35 lb |
Information About BRNSURGE
The BRNSURGE is an Eaton-manufactured surge protective device engineered specifically for Type BR load centers. It features a compact plug-on design that allows direct installation into compatible panels without additional wiring. The device operates as a two-pole unit, providing coordinated surge protection across line-to-neutral and line-to-line configurations. It is commonly used to enhance panel-level protection against transient voltage events in residential and light commercial electrical systems.
Key Features
- Type BR Compatibility: Designed for direct use with Eaton Type BR circuit breaker panels.
- Two-Pole Design: Provides surge protection across multiple conductors within the panel.
- Plug-On Installation: Enables quick, secure mounting without field wiring.
- Multiple Protection Modes: Supports line-to-neutral and line-to-line surge suppression.
- High Surge Capacity: Rated for surge currents up to 18 kA.
- Defined Voltage Limiting: Controls transient overvoltages with a 600 V limiting level.
- Panel-Level Surge Protection: Adds an additional layer of protection for connected circuits.
The BRNSURGE delivers the reliability and precision required for effective surge mitigation in Eaton Type BR electrical distribution systems.
