Product Description P/N: BT210S
Description

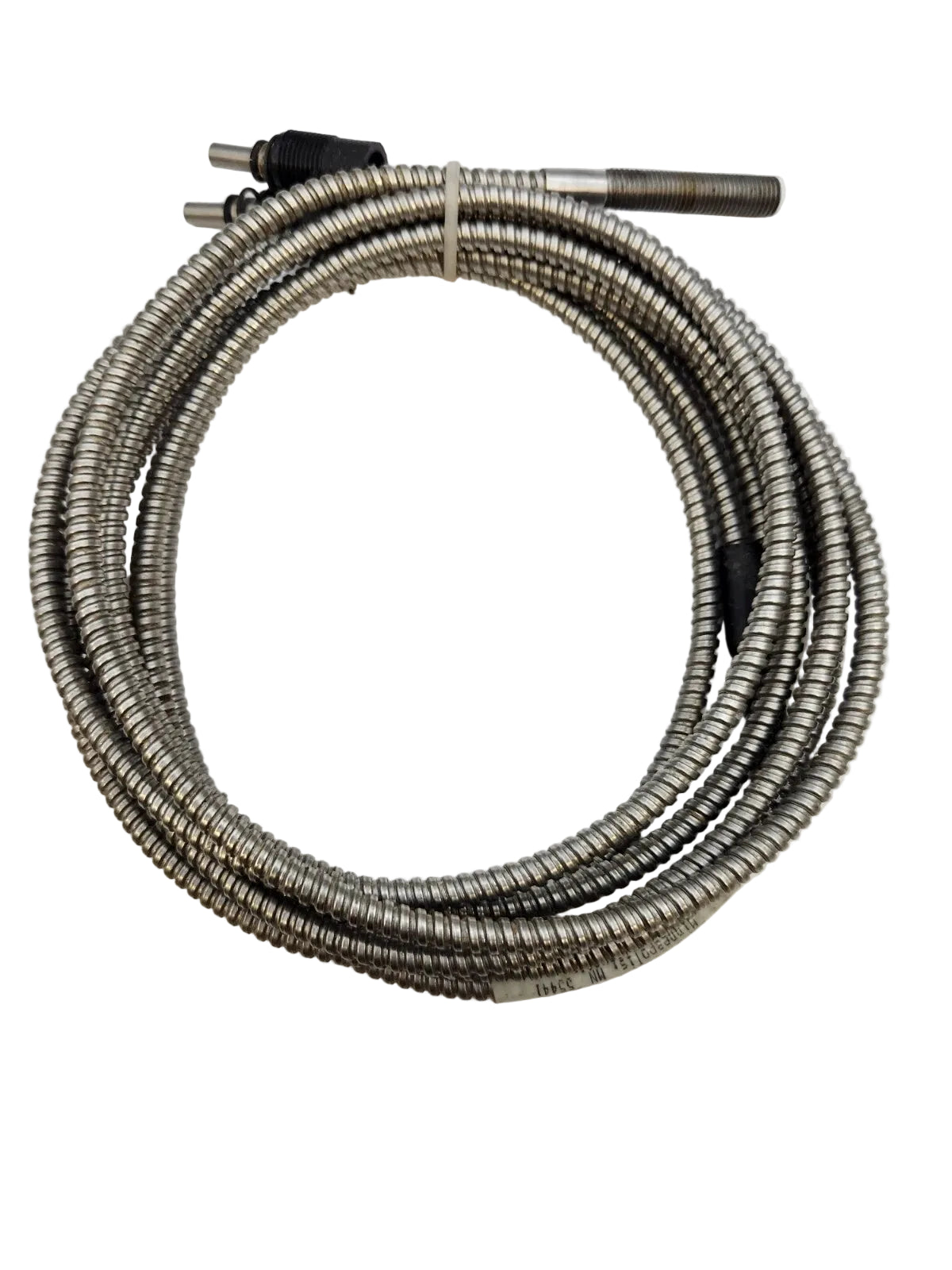

The Banner Engineering BT210S is a glass fiber optic sensing assembly designed for diffuse reflective photoelectric applications in industrial environments. It features a threaded brass sensing end and stainless steel monocoil sheathing to support reliable optical signal transmission over extended distances. This fiber optic assembly is intended for use with compatible Banner fiber optic amplifiers where durability and temperature resistance are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | BT210S |
| Subcategory | Fiber Optic Accessories |
| Series | BT Series |
| Fiber Optic Type | Glass |
| Sensing Mode | Diffuse / Reflective |
| Beam Exit | In-line |
| Fiber Length | 3.048 m (10 ft) |
| Core Diameter | 3.2 mm |
| Fiber Sensing End Size | #5/16-24 Thread |
| Sensing End Material | Brass |
| Fiber Jacket Material | Stainless Steel Monocoil |
| Minimum Bend Radius | 25 mm |
| Termination | Terminated |
| Integrated Lens | No |
| Maximum Operating Temperature | 249°C |
| Weight | 0.15 lb |
Information About BT210S
The BT210S is part of Banner Engineering’s BT Series fiber optic accessories, developed to extend photoelectric sensing into challenging mechanical and environmental locations. It uses a glass fiber core housed in stainless steel monocoil sheathing to provide protection against mechanical stress and elevated temperatures. The assembly is configured with an in-line beam exit and a threaded sensing tip to support secure mounting in machinery or fixtures. Its construction allows stable optical performance in industrial automation and process control applications.
Key Features:
- BT Series Fiber Optic Assembly: Designed for use with Banner fiber optic sensor amplifiers.
- Glass Fiber Optic Construction: Provides stable light transmission for diffuse sensing applications.
- Threaded Brass Sensing End: Enables secure mechanical mounting using a #5/16-24 thread.
- Stainless Steel Monocoil Jacket: Protects the fiber in harsh industrial environments.
- Extended Fiber Length: Supports remote sensing over long distances.
- High Temperature Capability: Rated for operating temperatures up to 249°C.
- In-Line Beam Exit: Simplifies alignment in straight-through mounting configurations.
The BT210S delivers the reliability and precision required for glass fiber optic sensing in demanding industrial automation environments.
