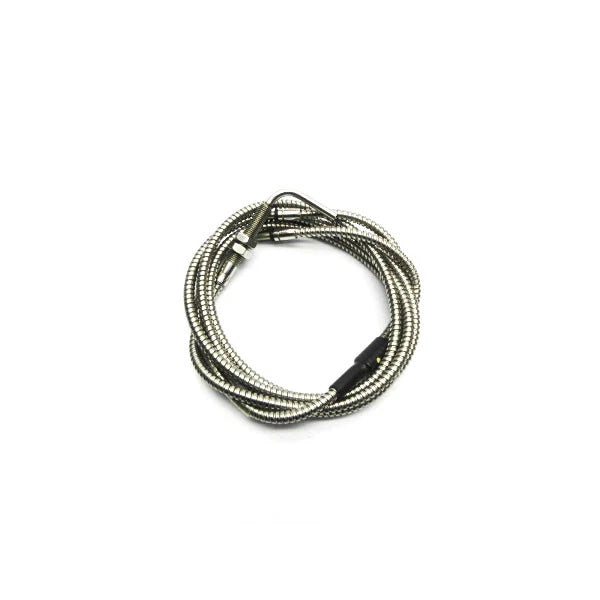

BTA26SM900 | Banner Engineering BT Series Glass Fiber Optic Assembly Opposed 1 m
- Regular price
- $429.00
- Sale price
- $429.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BTA26SM900
Description
The Banner Engineering BTA26SM900 is a glass fiber optic assembly designed for opposed-mode sensing applications in industrial environments. It features a right-angle threaded tip and a durable stainless-steel jacket for reliable signal transmission. This assembly is commonly used with compatible Banner fiber optic sensors to detect objects in confined or high-temperature areas.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Fiber Optic Sensors |
| Part Number | BTA26SM900 |
| Subcategory | Fiber Optic Assemblies |
| Series | BT Series |
| Fiber Type | Glass |
| Sensor Mode | Opposed |
| Cable Length | 1 m (72 in / 1829 mm) |
| Fiber Diameter | 0.125 in (3.20 mm) |
| Tip Style | Threaded End |
| Tip Thread Size | 5/16-24 |
| Tip Viewing Direction | Right-Angle |
| Tip Material | Nickel-Plated Brass |
| Jacket Material | Stainless Steel |
| Minimum Bend Radius | 1.0 in (25.0 mm) |
| Operating Temperature | -140 to 480 °C |
| Weight | Approx. 0.4 lb |
Information About BTA26SM900
The BTA26SM900 is part of the Banner Engineering BT Series, which includes rugged glass fiber optic assemblies engineered for demanding sensing applications. This model uses a terminated dual glass fiber construction with an opposed sensing mode to provide accurate optical signal transmission between emitter and receiver. It incorporates a nickel-plated brass right-angle threaded tip with a 5/16-24 mounting thread for secure installation in tight spaces. Designed for extreme conditions, the assembly supports a wide operating temperature range and offers mechanical durability through its stainless-steel jacket.
Key Features:
- Opposed Sensing Mode: Supports precise object detection using separate emitter and receiver alignment.
- Glass Fiber Construction: Provides stable optical performance and resistance to harsh environments.
- Right-Angle Threaded Tip: Allows installation in space-constrained applications with controlled beam direction.
- Stainless Steel Jacket: Enhances durability and protection against mechanical wear and heat.
- BT Series Compatibility: Designed for use with Banner Engineering BT Series fiber optic sensors.
- Wide Temperature Tolerance: Suitable for high-temperature and extreme industrial environments.
The BTA26SM900 delivers the reliability and precision required for fiber optic sensing in industrial automation and harsh-condition applications.
