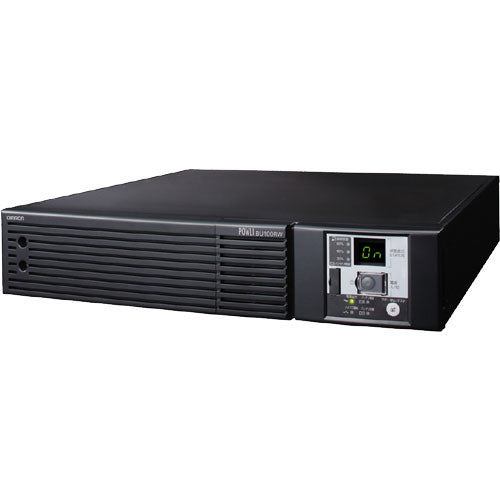

BU100RW | Omron Constant Inverter 100–120V Rack-Mount UPS 800W / 1000VA
- Regular price
- $3,984.00
- Sale price
- $3,984.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BU100RW
Description
The Omron BU100RW Constant Inverter is a single-phase rack-mount power supply system designed to deliver stable AC output for critical electronic and industrial equipment. Operating from an AC100–120V input range, it provides continuous and clean sine wave power with automatic switchover to battery mode during outages. Built for high reliability, it ensures uninterrupted power performance in automation, communication, and control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Power and Energy Control |
| Part Number | BU100RW |
| Subcategory | Constant Inverters |
| Driving Method | Regular inverter power supply system |
| Housing Type | Rack mount type |
| Rated Input Voltage | AC100V / 110V / 115V / 120V |
| Rated Input Frequency | 50/60 Hz ±4 Hz |
| Input Phases | Single-phase 2-wire |
| Input Outlet Shape | 3P (NEMA 5-15P) |
| Rated Output Voltage | AC100–120V ±3% (selectable modes) |
| Rated Output Frequency | Synchronized to input frequency |
| Output Phases | Single-phase 2-wire |
| Output Outlet Shape | NEMA 5-15R |
| Output Outlets (Backup) | 6 |
| Output Outlets (Through) | 0 |
| Power Consumption (Normal/Max) | 120W / 180W |
| Maximum Output Capacity (W) | 800W |
| Maximum Output Capacity (VA) | 1000VA |
| Backup Time (Full Load) | 7 minutes |
| Output Voltage (Battery Mode) | 100V |
| Output Frequency (Battery Mode) | 50/60 Hz ±1 Hz |
| Output Waveform (Battery Mode) | Sine wave |
| Switch-to-Battery Time | No interruption |
| Battery Type | Sealed lead-acid battery (DC12V/8Ah) |
| Number of Batteries | 3 |
| Charging Time | 8 hours |
| Software Included | PowerAct Pro, UPS Service Driver, UPS Power Manager |
| Supported OS | Windows / Linux / Mac (Intel Mac not supported) |
| Surge Function | Power supply noise and lightning surge protection |
| Safety Standards | UL1778 / CE Marking |
| Dimensions (W×D×H) | 438 × 474 × 87 mm |
| Weight | 22 kg |
Information About BU100RW
The BU100RW is part of Omron’s BU series of constant inverters, designed for high-performance uninterruptible power support. It employs a regular inverter power supply system with seamless switching, ensuring zero interruption when transitioning to battery operation. Featuring a robust rack-mount housing, sealed lead batteries, and integrated surge protection, the unit is ideal for maintaining operational stability of sensitive industrial and IT devices. Its compatibility with Omron’s PowerAct Pro and UPS management software enables comprehensive power monitoring and control across multiple operating systems.
Key Features:
- Wide Input Voltage Range: Supports 100–120 VAC single-phase power for flexible installation.
- Seamless Switching: Provides uninterrupted transition to battery power with zero switching delay.
- Pure Sine Wave Output: Delivers clean, stable AC output ideal for sensitive equipment.
- High Output Capacity: Rated at 800 W / 1000 VA for consistent performance under full load.
- Integrated Surge Protection: Guards against power line noise and lightning surges.
- Battery Backup System: Equipped with three sealed lead batteries (DC12V/8Ah) providing 7 minutes of runtime at full load.
- Software Integration: Includes PowerAct Pro, UPS Service Driver, and UPS Power Manager for Windows, Linux, and Mac.
- Rack-Mount Construction: Compact 2U form factor (87 mm height) for data center or equipment rack installation.
The BU100RW delivers the reliability and precision required for continuous power protection in industrial and IT power systems.
