BVB-8207SD | Lutron 4-Channel Vibration Meter with SD Data Logger, Acceleration/Velocity/Displacement
- Regular price
- $4,194.00
- Sale price
- $4,194.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BVB-8207SD
Description

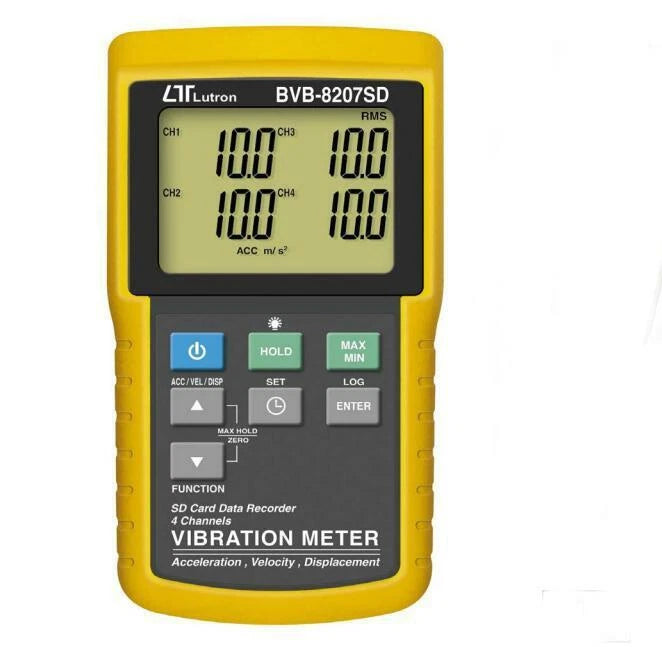

The Lutron BVB-8207SD is a professional-grade 4-channel vibration meter with integrated data logging to SD card. It measures acceleration, velocity, and displacement across four channels simultaneously, making it ideal for predictive maintenance, industrial diagnostics, and long-term vibration analysis. Data is recorded in real-time as a CSV file for direct use in spreadsheet applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Test & Measurement |
| Part Number | BVB-8207SD |
| Subcategory | Vibration Meters |
| Channels | 4 (CH1, CH2, CH3, CH4) |
| Measurement Types | Acceleration, Velocity, Displacement |
| Measurement Units | m/s², g, ft/s², mm/s, cm/s, inch/s, mm, inch |
| Frequency Range | 10 Hz – 1 kHz (ISO 2954 compliant) |
| Display | LCD, 82 x 61 mm, green backlight |
| Recording Interval | 1–3600 sec (auto); manual mode also supported |
| Data Format | CSV (SD card) |
| Memory Capacity | SD card, 1 GB to 16 GB (2 GB typical) |
| Power Supply | 8x AA batteries or 9V DC adapter |
| Battery Life | Low power mode: ~12 mA; Logging mode: ~35 mA |
| Sensor Type | VB-83 vibration sensor with magnetic base |
| Cable Length | 1.2 m |
| Dimensions | Meter: 203 × 76 × 38 mm; Sensor: Ø16 × 37 mm |
| Weight | Meter: 515 g; Sensor: 99 g |
| Interface | RS232 / USB (optional cables required) |
| Environment | 0–50°C, <85% RH, indoor use |
| Certifications | CE compliant |
Information About BVB-8207SD
The BVB-8207SD is part of Lutron’s industrial-grade vibration measurement instruments. It supports four sensors simultaneously, displaying real-time readings on a large LCD with backlight and logging all data to an SD card in .CSV format. Compatible with ISO 2954, it offers flexible frequency response from 10 Hz to 1 kHz, along with programmable recording intervals and various measurement units in both metric and imperial formats. Designed for long-term monitoring, it features up to 16 GB SD card support and operates independently without requiring software installation.
Key Features:
- 4-Channel Monitoring: Simultaneously measures vibration on four channels (CH1–CH4).
- SD Card Datalogging: Records data directly to SD card in Excel-readable CSV format.
- Multiple Measurement Modes: Acceleration (m/s², g), Velocity (mm/s, inch/s), Displacement (mm, inch).
- Flexible Sampling Intervals: From 1 to 3600 seconds (auto or manual logging).
- RMS, Peak & Max Hold: Supports advanced analysis modes for all channels.
- Sensor Included: Comes with VB-83 sensor, magnetic base, and 1.2 m cable.
- PC Connectivity: Optional USB/RS232 interface for real-time monitoring or data export.
- Backlit LCD Display: Clear visibility of all 4 channel readings on a single screen.
The BVB-8207SD delivers comprehensive vibration monitoring and datalogging for industrial machinery diagnostics and preventive maintenance.
Description
The Lutron BVB-8207SD is a professional-grade 4-channel vibration meter with integrated data logging to SD card. It measures acceleration, velocity, and displacement across four channels simultaneously, making it ideal for predictive maintenance, industrial diagnostics, and long-term vibration analysis. Data is recorded in real-time as a CSV file for direct use in spreadsheet applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Test & Measurement |
| Part Number | BVB-8207SD |
| Subcategory | Vibration Meters |
| Channels | 4 (CH1, CH2, CH3, CH4) |
| Measurement Types | Acceleration, Velocity, Displacement |
| Measurement Units | m/s², g, ft/s², mm/s, cm/s, inch/s, mm, inch |
| Frequency Range | 10 Hz – 1 kHz (ISO 2954 compliant) |
| Display | LCD, 82 x 61 mm, green backlight |
| Recording Interval | 1–3600 sec (auto); manual mode also supported |
| Data Format | CSV (SD card) |
| Memory Capacity | SD card, 1 GB to 16 GB (2 GB typical) |
| Power Supply | 8x AA batteries or 9V DC adapter |
| Battery Life | Low power mode: ~12 mA; Logging mode: ~35 mA |
| Sensor Type | VB-83 vibration sensor with magnetic base |
| Cable Length | 1.2 m |
| Dimensions | Meter: 203 × 76 × 38 mm; Sensor: Ø16 × 37 mm |
| Weight | Meter: 515 g; Sensor: 99 g |
| Interface | RS232 / USB (optional cables required) |
| Environment | 0–50°C, <85% RH, indoor use |
| Certifications | CE compliant |
Information About BVB-8207SD
The BVB-8207SD is part of Lutron’s industrial-grade vibration measurement instruments. It supports four sensors simultaneously, displaying real-time readings on a large LCD with backlight and logging all data to an SD card in .CSV format. Compatible with ISO 2954, it offers flexible frequency response from 10 Hz to 1 kHz, along with programmable recording intervals and various measurement units in both metric and imperial formats. Designed for long-term monitoring, it features up to 16 GB SD card support and operates independently without requiring software installation.
Key Features:
- 4-Channel Monitoring: Simultaneously measures vibration on four channels (CH1–CH4).
- SD Card Datalogging: Records data directly to SD card in Excel-readable CSV format.
- Multiple Measurement Modes: Acceleration (m/s², g), Velocity (mm/s, inch/s), Displacement (mm, inch).
- Flexible Sampling Intervals: From 1 to 3600 seconds (auto or manual logging).
- RMS, Peak & Max Hold: Supports advanced analysis modes for all channels.
- Sensor Included: Comes with VB-83 sensor, magnetic base, and 1.2 m cable.
- PC Connectivity: Optional USB/RS232 interface for real-time monitoring or data export.
- Backlit LCD Display: Clear visibility of all 4 channel readings on a single screen.
The BVB-8207SD delivers comprehensive vibration monitoring and datalogging for industrial machinery diagnostics and preventive maintenance.
