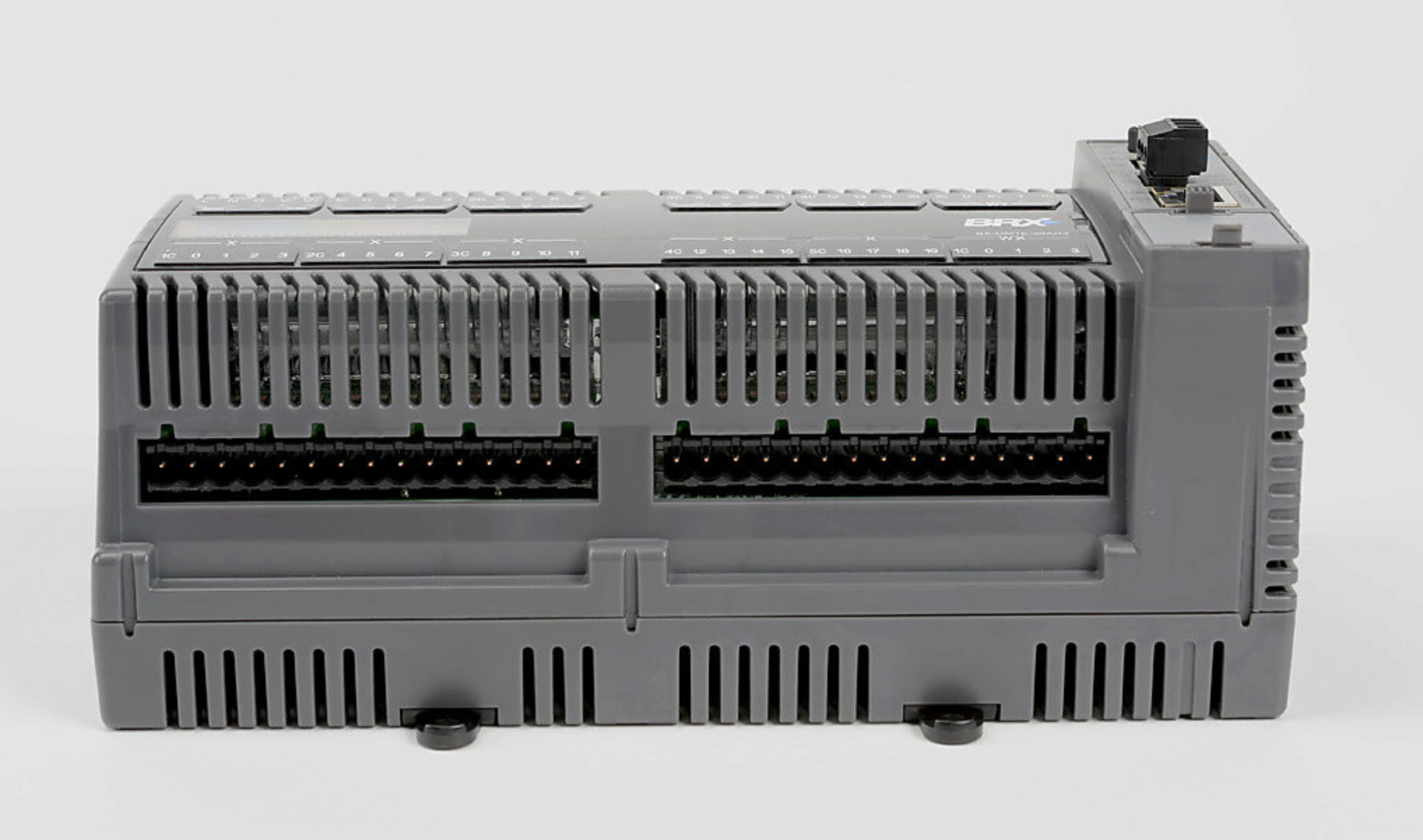

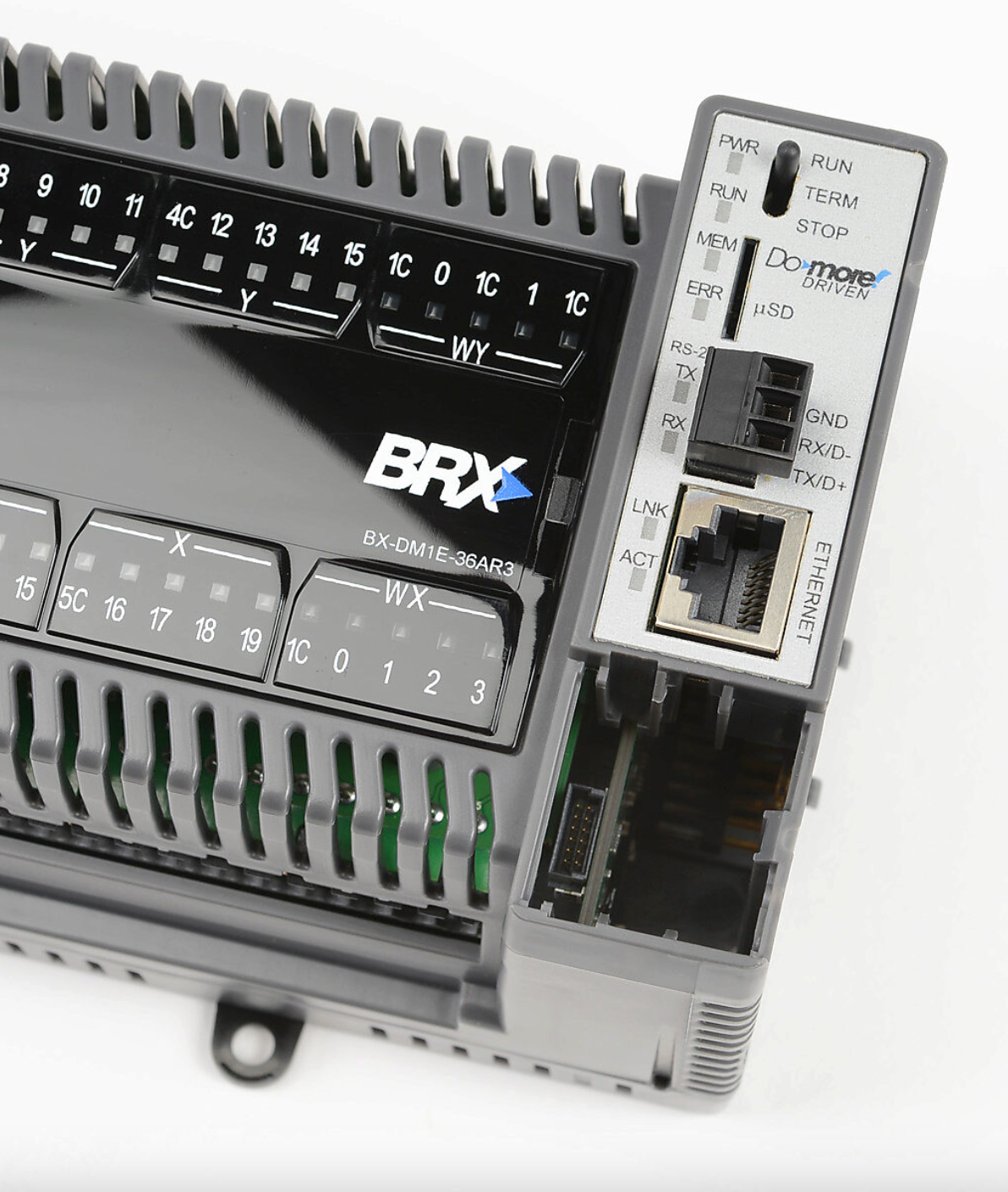

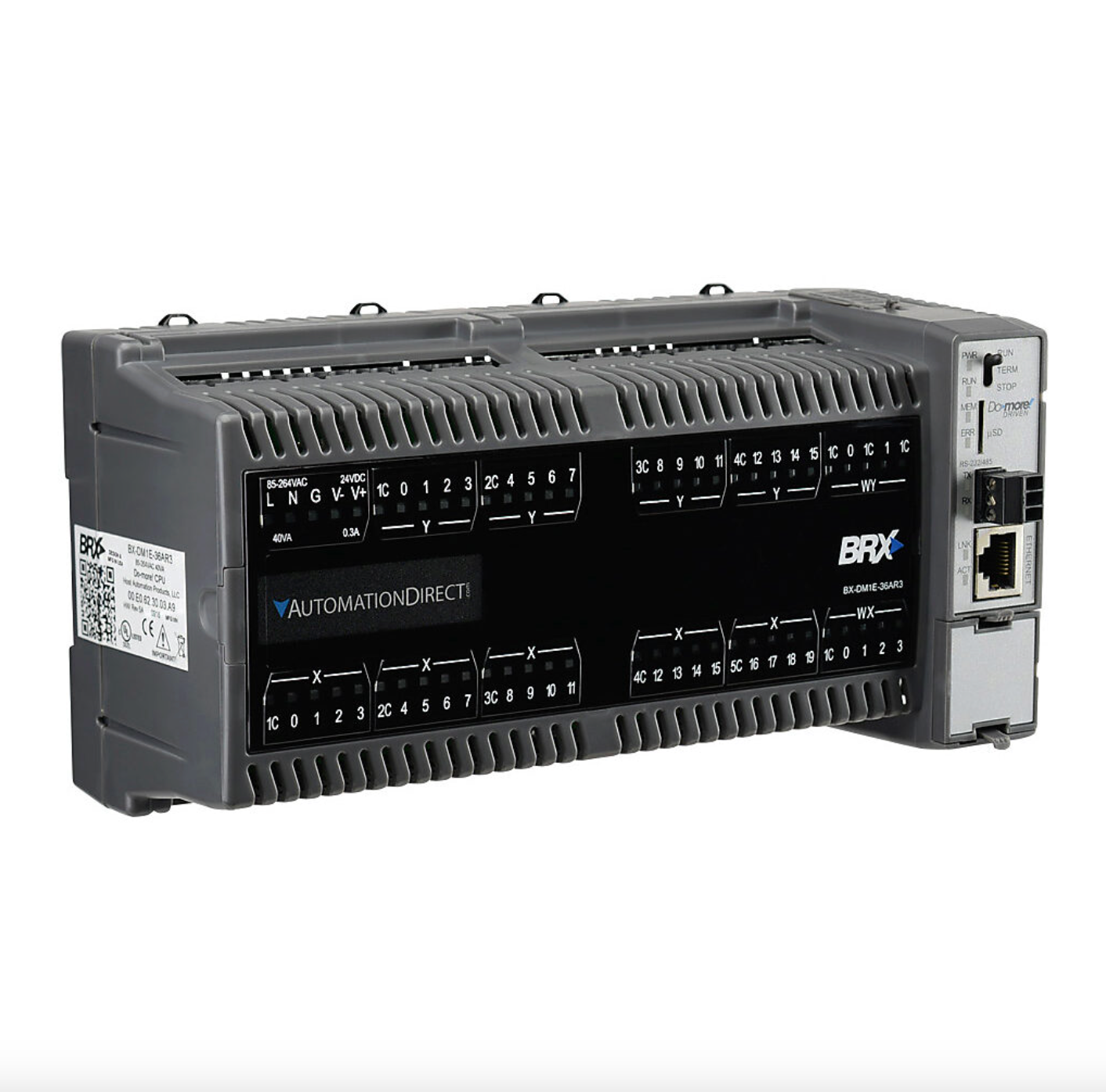

BX-DM1E-36AR3 | Automation Direct BRX Do-more 36-Point PLC 120–240VAC
- Regular price
- $927.00
- Sale price
- $927.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BX-DM1E-36AR3
Description
The Automation Direct BX-DM1E-36AR3 is a BRX Do-more PLC designed for advanced machine and process control with integrated discrete and analog I/O. It operates on 120–240 VAC power and provides 36 built-in I/O points, including relay outputs and high-resolution analog channels. With Ethernet connectivity, serial communication, and expandable architecture, it supports complex automation systems requiring flexible control and networking.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Automation Direct |
| Category | Programmable Logic Controllers |
| Part Number | BX-DM1E-36AR3 |
| Subcategory | Micro PLCs |
| Series | BRX Do-more |
| Total Memory | 192k words |
| Ladder Memory | 64k words |
| User Data Memory | 128k words |
| Programming Language | Ladder |
| Programming Software | Do-more Designer v2.0 or later |
| Power Requirement | 120–240 VAC |
| Discrete Inputs | 20 points, 120–240 VAC |
| Discrete Outputs | 16 Form A (SPST) relay outputs |
| Relay Load Rating | 2A per point |
| Analog Inputs | 4 channels, 16-bit resolution |
| Analog Output Channels | 2 channels, 16-bit resolution |
| Analog Input Ranges | 4–20 mA, ±20 mA, 0–5 VDC, 0–10 VDC, ±5 VDC, ±10 VDC |
| Analog Output Ranges | 4–20 mA, ±20 mA, 0–5 VDC, 0–10 VDC, ±5 VDC, ±10 VDC |
| Maximum PID Loops | 100+ (memory dependent) |
| Communication Ports | Ethernet 10/100Base-T, RS-232/RS-485 |
| Port Speed | 10/100 Mbps; up to 115.2k baud |
| Removable Media | MicroSD card slot |
| Real-Time Clock | Yes |
| Retentive Memory | Yes |
| Battery Backup | Yes (D0-MC-BAT, CR2032) |
| Maximum Expansion Modules | 8 |
| IP Rating | IP20 (panel installation) |
| Included | BX-RTB03S terminal block and D0-MC-BAT battery |
| Required Accessories | BX-RTB36 or BX-RTB36-1 terminal block kit or ZIPLink cables |
| Dangerous Goods Classification | UN3091, Lithium Battery Installed |
| Weight | Approx. 2.2 lb |
Information About BX-DM1E-36AR3
The BX-DM1E-36AR3 is part of the BRX Do-more PLC family engineered for high-performance industrial automation. It offers 192k words of total memory, including 64k words of ladder memory and 128k words of user data memory, supporting large-scale control programs and data handling. The controller includes 20 AC discrete inputs, 16 Form A relay outputs, four 16-bit analog inputs, and two 16-bit analog outputs for versatile signal processing. Communication capabilities include Ethernet and RS-232/RS-485 ports supporting multiple industrial protocols such as Modbus TCP/RTU, EtherNet/IP, MQTT, and FTP, along with webserver access for monitoring and configuration.
Key Features:
- 36 Built-In I/O Points: Includes 20 AC inputs and 16 relay outputs for machine control.
- Integrated Analog Channels: Four 16-bit analog inputs and two 16-bit analog outputs supporting voltage and current ranges.
- 192k Words Total Memory: Supports complex ladder logic and large data storage applications.
- Ethernet and Serial Connectivity: 10/100Base-T Ethernet and RS-232/RS-485 communication ports.
- Advanced Protocol Support: Compatible with Modbus TCP/RTU, EtherNet/IP, MQTT, FTP, and more.
- Expandable System Design: Supports up to eight additional expansion modules.
- Real-Time Clock and Retentive Memory: Maintains system timing and stored data during power interruptions.
- Integrated PID Capability: Supports 100+ PID loops configurable to memory limits.
The BX-DM1E-36AR3 delivers the reliability and precision required for advanced PLC-based machine automation and process control systems.
