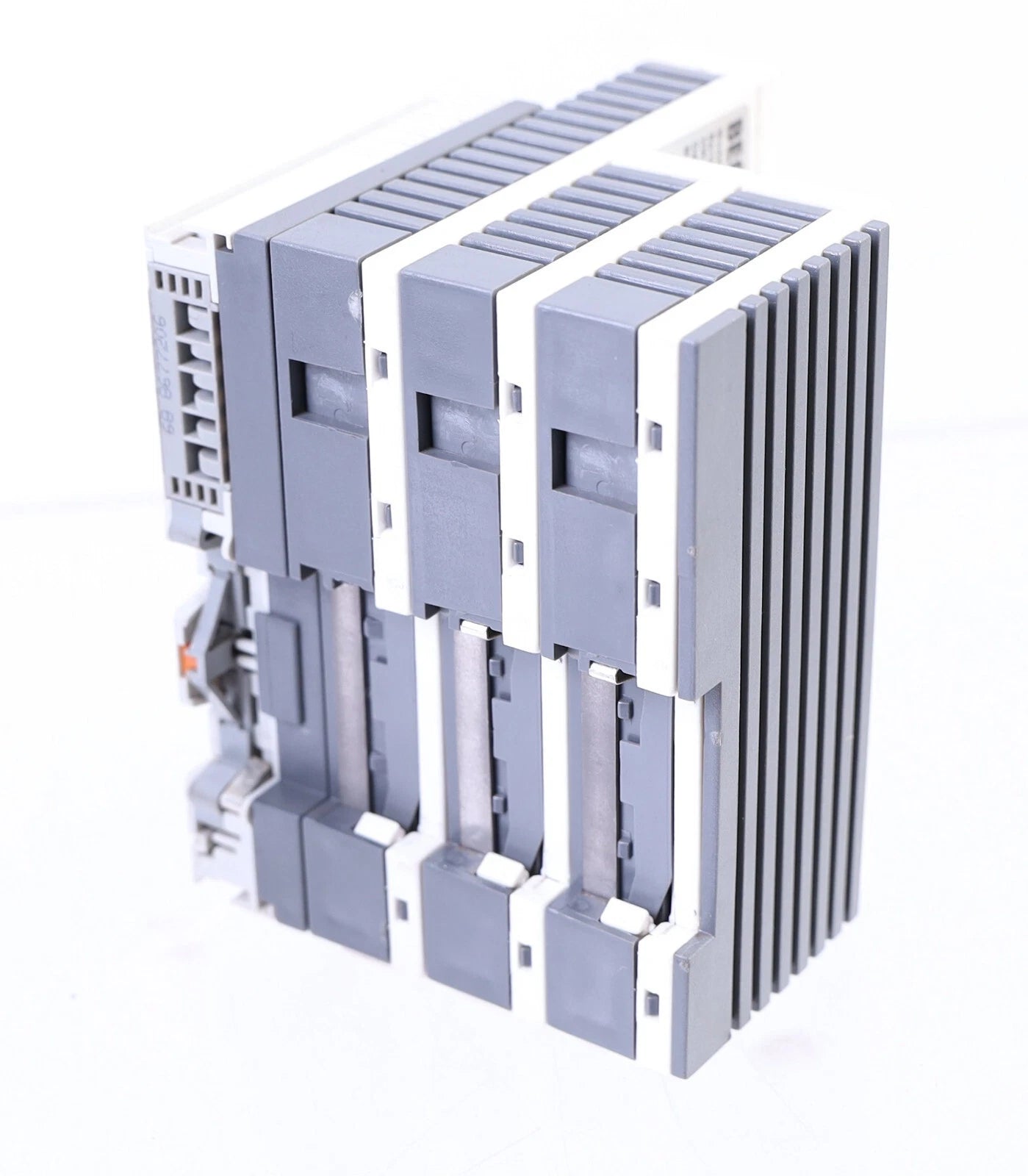

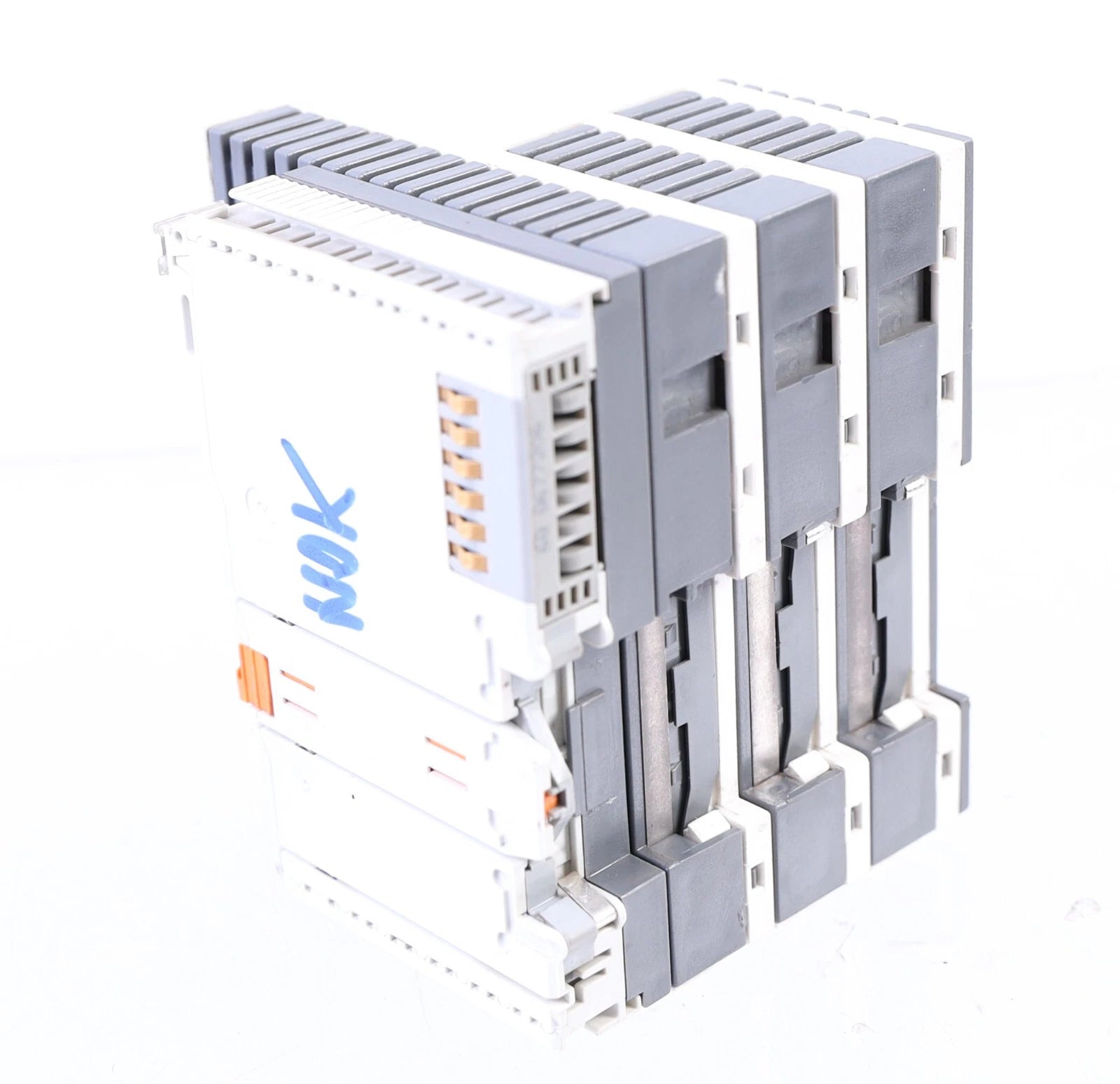

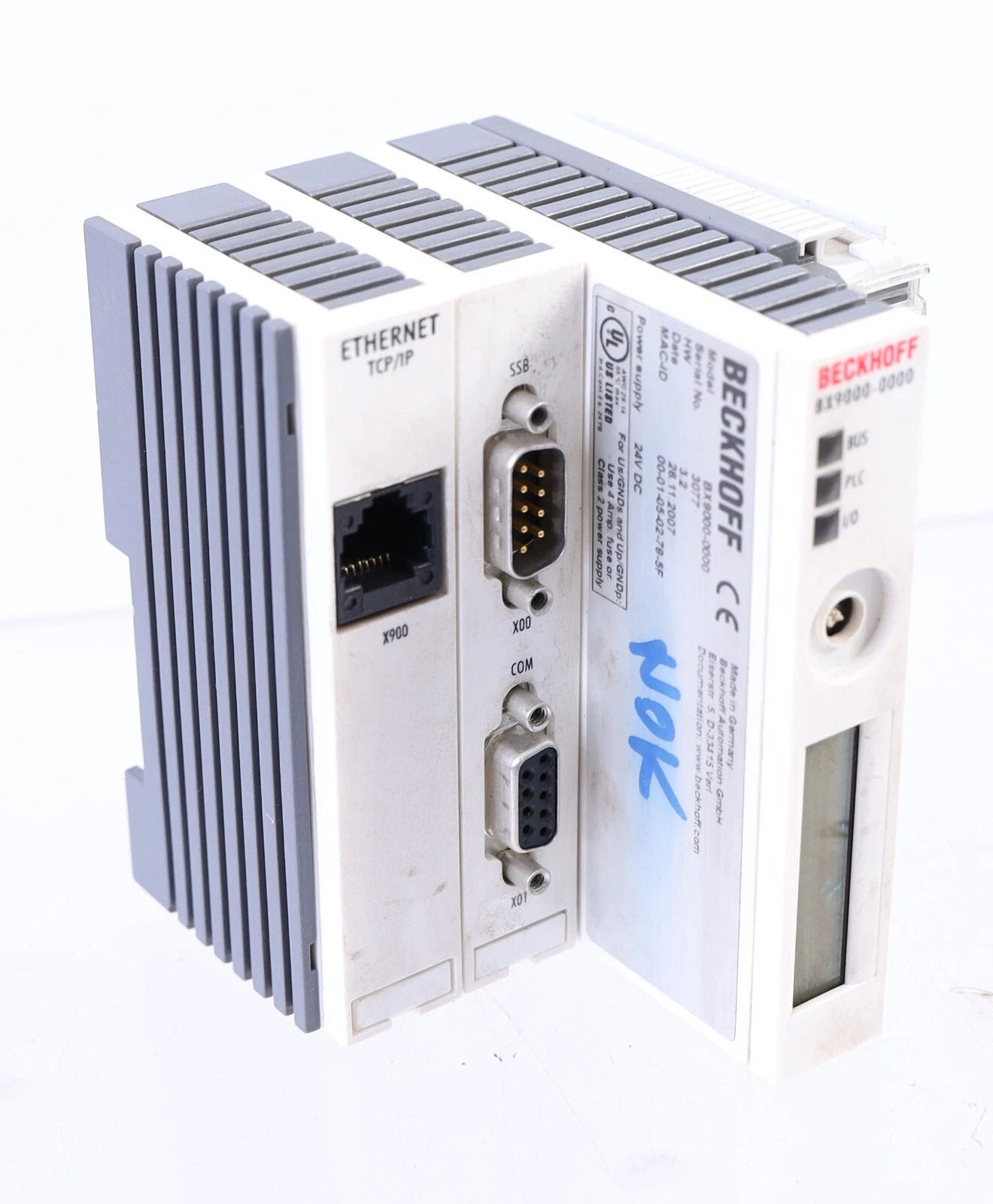

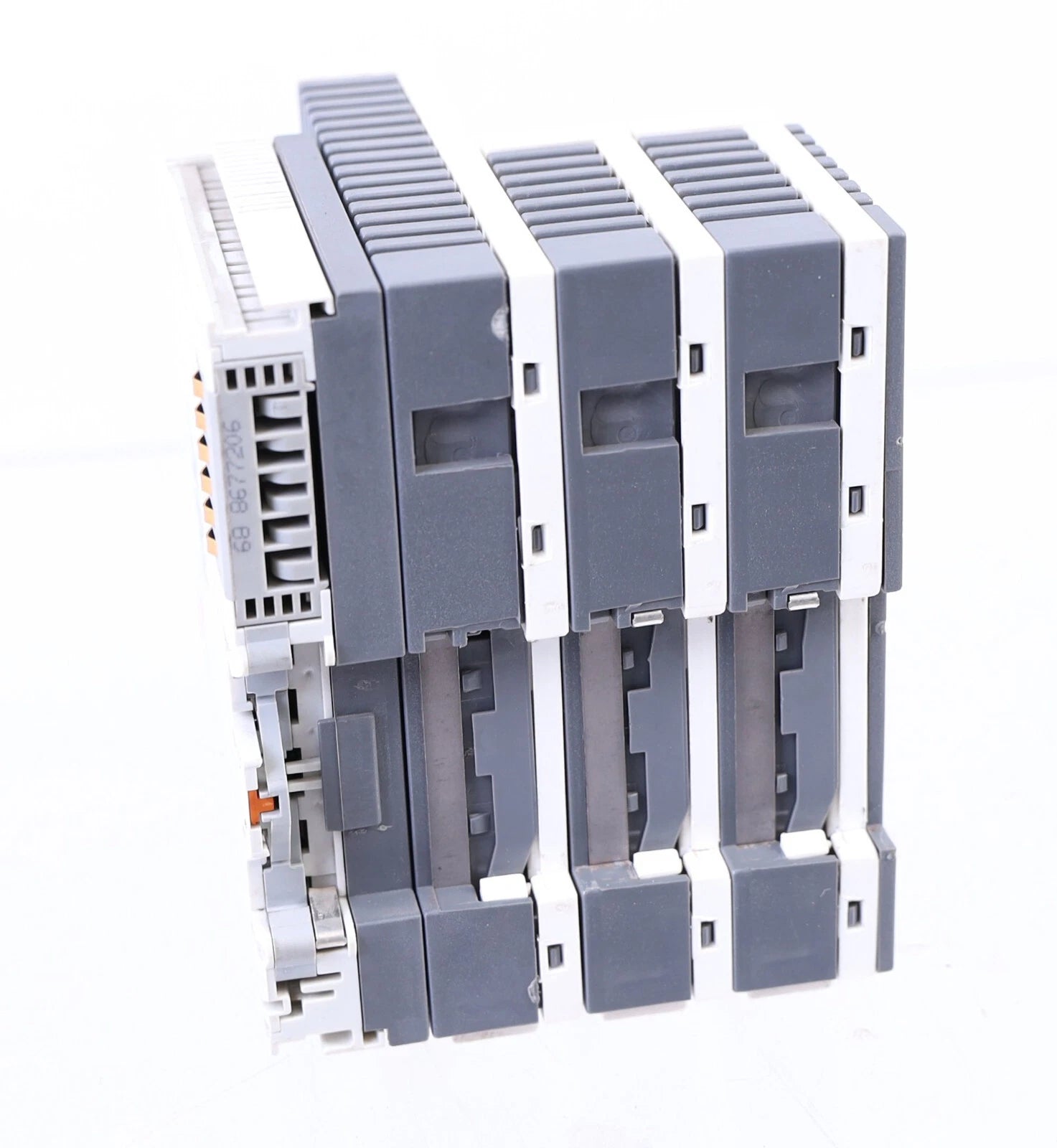

BX9000-0000 | Beckhoff Ethernet TCP/IP Bus Terminal Controller
- Regular price
- $1,467.00
- Sale price
- $1,467.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BX9000-0000
Description
The Beckhoff BX9000-0000 is an Ethernet TCP/IP Bus Terminal Controller designed to manage decentralized I/O systems in industrial automation environments. It supports Ethernet master/slave communication at 10/100 Mbit/s and handles up to 2048 bytes of input and output data. This controller enables scalable and flexible automation architectures using Beckhoff Bus Terminals.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Beckhoff |
| Category | Industrial Automation Controllers |
| Part Number | BX9000-0000 |
| Subcategory | Bus Terminal Controllers |
| Series | BX Bus Terminal Controllers |
| Communication Protocol | Ethernet TCP/IP |
| Ethernet Interface | Master / Slave |
| Data Transfer Rate | 10/100 Mbit/s, automatic recognition |
| Input Bytes | 2048 bytes |
| Output Bytes | 2048 bytes |
| Digital Peripheral Signals | Up to 2,040 inputs/outputs |
| Analog Peripheral Signals | Up to 512 inputs/outputs |
| Bus Terminals | 64 (up to 255 with K-bus extension) |
| Programming Languages | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
| Display | FSTN, 2 × 16 characters, illuminated |
| Real-Time Clock | Battery-powered RTC |
| Power Supply | 24 V DC (−15% / +20%) |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -25 to +85 °C |
| Addressing Methods | DHCP, BootP, ARP, joystick switch |
| Weight | Approx. 1 kg |
Information About BX9000-0000
The BX9000-0000 is part of the Beckhoff BX Bus Terminal Controller series, developed to provide compact, Ethernet-based control solutions for distributed I/O systems. It functions as an Ethernet interface and controller for Bus Terminals, supporting both master and slave operation modes. The controller allows expansion to a large number of bus terminals, making it suitable for applications ranging from small machines to complex automation cells. With support for IEC 61131-3 programming languages and a built-in display, it offers both flexibility in control logic and ease of diagnostics during operation.
Key Features:
- Ethernet TCP/IP Communication: Supports standard Ethernet networks with 10/100 Mbit/s data rates.
- Master and Slave Operation: Can operate as an Ethernet master or slave depending on system configuration.
- Large I/O Data Capacity: Handles up to 2048 bytes of input data and 2048 bytes of output data.
- Scalable Bus Terminal Expansion: Supports up to 64 bus terminals, expandable to 255 with K-bus extension.
- IEC 61131-3 Programming Support: Compatible with IL, LD, FBD, SFC, and ST programming languages.
- Integrated Display: Features an illuminated FSTN display with 2 × 16 characters for status and diagnostics.
- Extensive Peripheral Support: Manages up to 2,040 digital and 512 analog peripheral signals.
- Flexible Addressing Methods: Supports DHCP, BootP, ARP, and joystick switch addressing.
- Real-Time Clock: Includes a battery-powered real-time clock for time-dependent control tasks.
The BX9000-0000 delivers the reliability and precision required for Ethernet-based distributed control, modular I/O expansion, and industrial automation systems.
