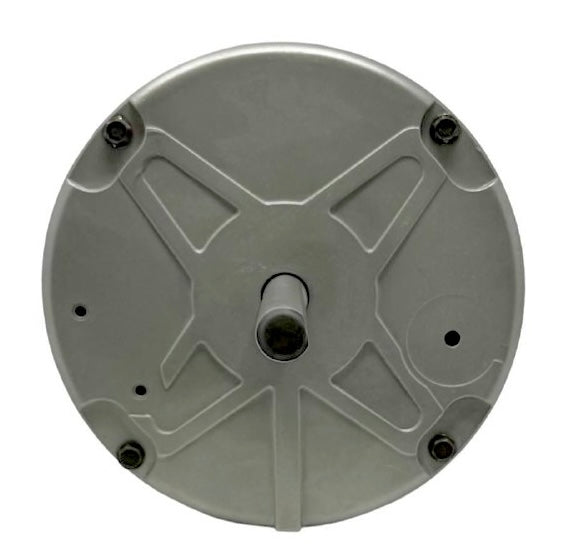

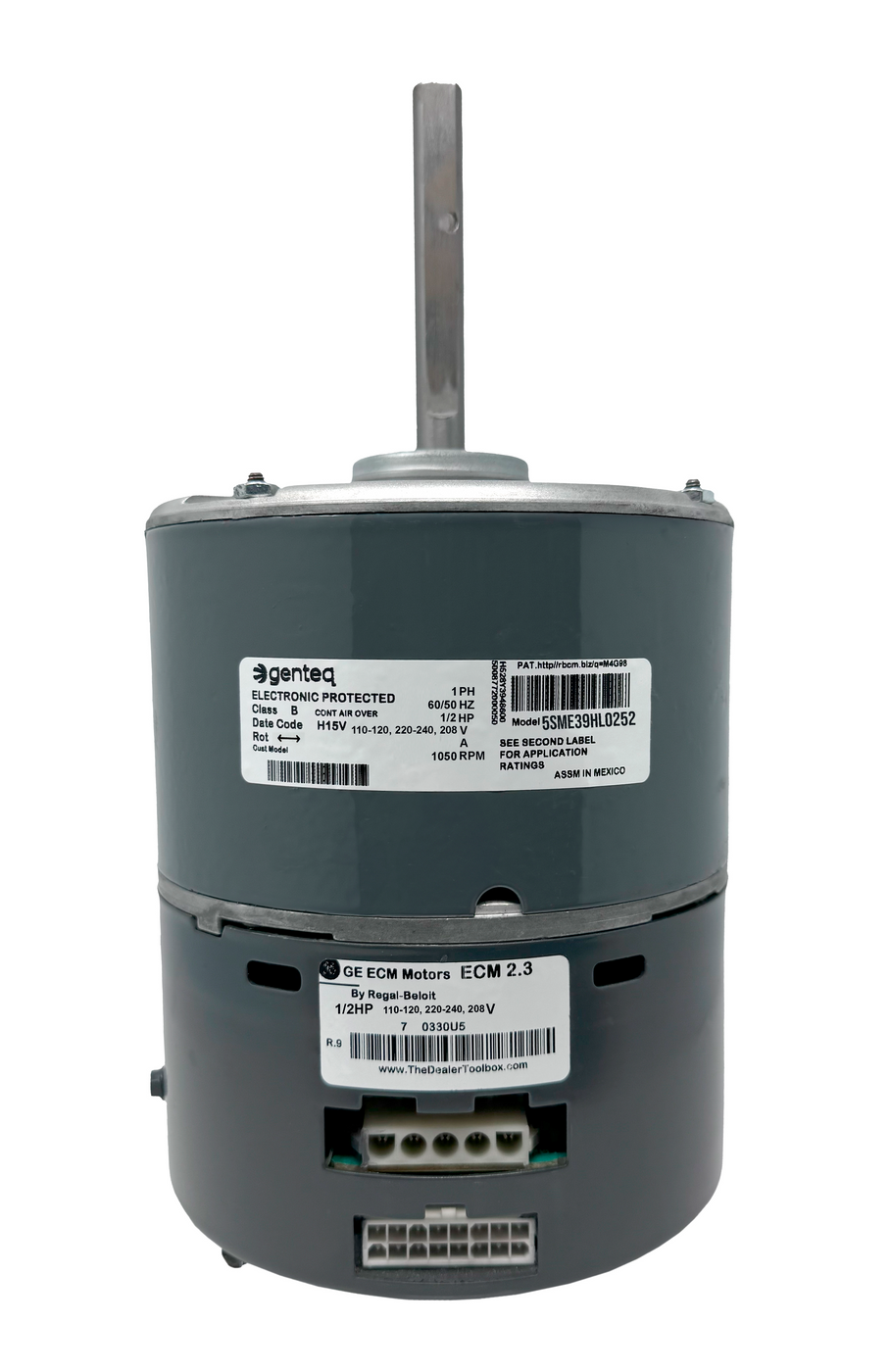

5SME39HL0252 | GE Genteq ECM 2.3 Blower Motor 1/2 HP 115/230V
- Regular price
- $655.00
- Sale price
- $655.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5SME39HL0252
Description
The GE Genteq 5SME39HL0252 is a high-efficiency ECM 2.3 blower motor designed for reliable airflow control in residential and light commercial HVAC systems. Rated at 1/2 HP and operating on 115/230V single-phase power, it delivers consistent performance with reduced energy consumption. This motor is engineered as an OEM-quality replacement for compatible furnace and air handler applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE Genteq |
| Category | HVAC Motors |
| Part Number | 5SME39HL0252 |
| Subcategory | ECM Blower Motors |
| Motor Type | ECM 2.3 Blower Motor |
| Horsepower | 1/2 HP |
| Voltage | 115 / 230 V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Amperage | 7.7 A @115V / 4.3 A @230V |
| Speed | Single Speed |
| Rotation | Reversible |
| Frame Size | 48Z |
| Enclosure | Open Air-Over (OAO) |
| Motor Diameter | 5.6 in |
| Shaft Diameter | 0.5 in |
| Shaft Length | 5 in |
| Shaft Type | Single |
| Drive Type | Direct Drive |
| Application | Furnace and Air Handler Blowers |
| Weight | Approx. 18 lb (8.2 kg) |
Information About 5SME39HL0252
The 5SME39HL0252 is part of Genteq’s ECM 2.3 electronically commutated motor lineup, developed to improve HVAC system efficiency and airflow control. It features a direct-drive design with a 48Z frame and open air-over enclosure to support effective cooling during operation. The motor supports reversible rotation and single-speed operation, making it suitable for a wide range of blower applications. Its ECM technology enables smoother starts, quieter operation, and improved overall system efficiency compared to conventional PSC motors.
Key Features:
- ECM 2.3 Motor Technology: Provides improved energy efficiency and precise airflow control.
- 1/2 HP Motor Rating: Suitable for residential and light commercial blower applications.
- Dual Voltage Operation: Supports 115V or 230V single-phase electrical supply.
- Direct Drive Design: Eliminates belts for quieter operation and reduced maintenance.
- Reversible Rotation: Allows flexible installation across multiple HVAC configurations.
- Single-Speed Operation: Designed for consistent airflow performance.
- 48Z Frame Size: Industry-standard frame for compatibility with common blower housings.
- Open Air-Over Enclosure: Ensures proper motor cooling during continuous operation.
- OEM Replacement Quality: Built to meet or exceed original equipment specifications.
The 5SME39HL0252 delivers the reliability and precision required for ECM blower motor operation in modern HVAC systems.
