BZLN-RH | Honeywell Enclosed Limit Switch SPDT Snap Action 15A
- Regular price
- $304.00
- Sale price
- $304.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BZLN-RH
Description

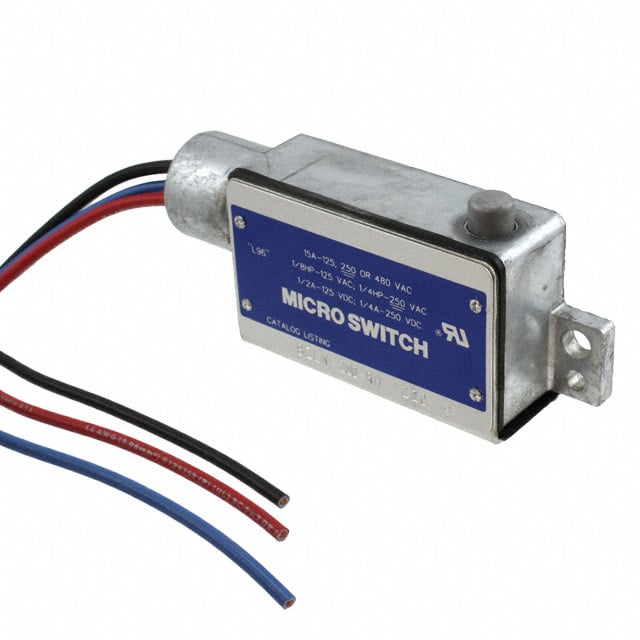

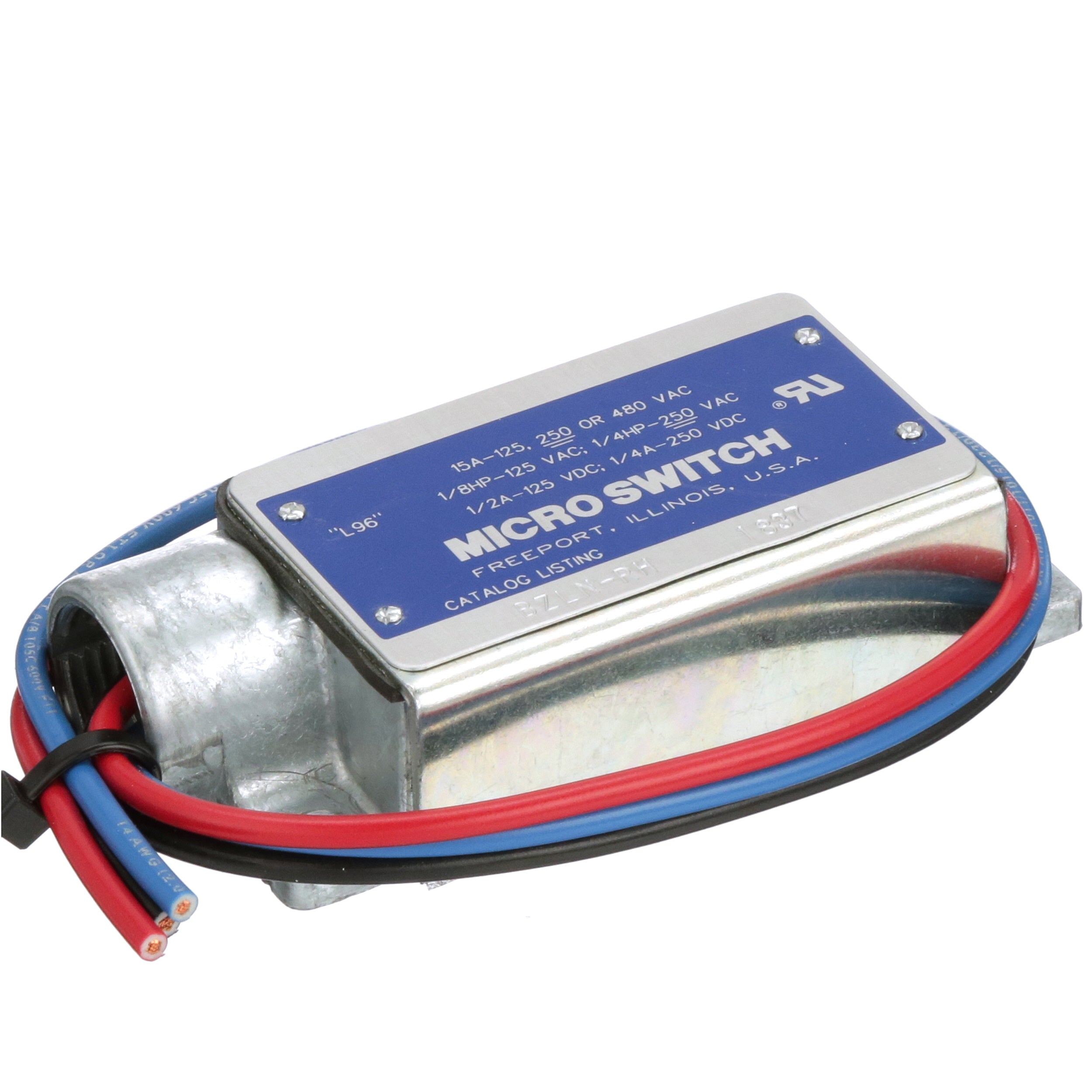

The Honeywell BZLN-RH is a compact enclosed limit switch from the LN Series featuring a straight plunger actuator and SPDT snap-action contacts. Rated for 15A at 125VAC and 500mA at 125VDC, this durable switch provides precise and reliable mechanical control in industrial automation and equipment safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Switches |
| Part Number | BZLN-RH |
| Subcategory | Enclosed Limit Switch |
| Series | LN Series |
| Type | Compact prewired enclosed limit switch |
| Circuit Type | SPDT (Single-Pole Double-Throw) |
| Contact Configuration | 1 Normally Open / 1 Normally Closed |
| Switch Function | On-Momentary (Snap Action) |
| Actuator Type | Round (Straight Pin Plunger) |
| Mounting Type | Chassis Mount |
| Mounting Hole Size | 0.257" |
| Termination Style | Wire leads (prewired) |
| Casing Material | Zinc die-cast housing |
| Voltage Rating (AC) | 125–480 VAC |
| Voltage Rating (DC) | 125–250 VDC |
| Current Rating (AC) | 15A |
| Current Rating (DC) | 500mA |
| Operating Force | 22.2 N (2268 gf) |
| Release Force | 4.45 N (454 gf) |
| Operating Position | 1.640" (41.65 mm) |
| Pretravel | 0.030" (0.8 mm) |
| Differential Travel | 0.004" (0.1 mm) |
| Overtravel | 0.203" (5.15 mm) |
| Operating Temperature Range | -32°C to +55°C |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Standards | UL Recognized, CSA Certified |
| Ingress Protection | N/A |
| Application | Industrial equipment, safety interlocks, machine control |
| Weight | 0.80 lbs |
Information About BZLN-RH
The Honeywell BZLN-RH belongs to the LN Series of enclosed limit switches, engineered for industrial automation and safety control systems. It features a zinc die-cast housing that provides mechanical strength and protection against environmental factors, while its SPDT snap-action mechanism ensures rapid and reliable contact switching. The plunger-style actuator allows for accurate mechanical response to movement or position changes, making it suitable for use in machinery, conveyor systems, and process equipment. Designed for both AC and DC circuits, the BZLN-RH can handle demanding applications requiring dependable performance under repetitive operation cycles.
Key Features
- SPDT Snap Action Contacts: Provides fast, reliable switching with both normally open and normally closed circuits.
- Straight Plunger Actuator: Offers accurate mechanical response for precise position sensing and control.
- Durable Zinc Die-Cast Enclosure: Ensures long service life and resistance to impact and wear.
- High Current Capacity: Rated for 15A at 125VAC and up to 480VAC for versatile power applications.
- Wide Operating Temperature Range: Performs reliably from -32°C to +55°C in industrial environments.
- Compact Design: Ideal for confined installation spaces where reliability is critical.
- Certified for Safety: UL Recognized and CSA Certified for compliance with industrial standards.
- Prewired Termination: Factory-wired leads simplify installation and reduce setup time.
The BZLN-RH delivers the reliability and precision required for demanding industrial automation systems, offering rugged construction and consistent performance in harsh environments.
