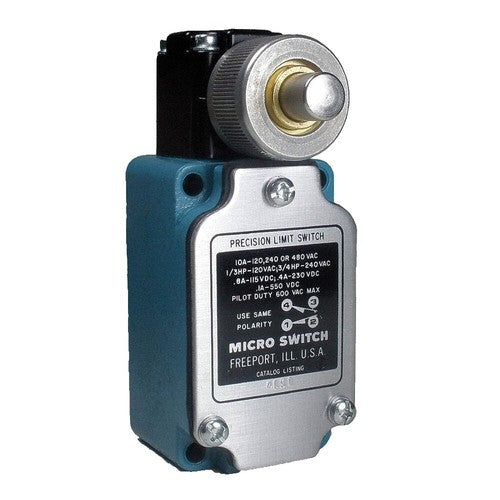

BZV6-RNX1 | Honeywell SPDT Limit Switch Top Plunger 15 A, 480 VAC
- Regular price
- $247.00
- Sale price
- $247.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: BZV6-RNX1
Description
The Honeywell BZV6-RNX1 is a heavy-duty SPDT limit switch with a top plunger actuator, rated for 15 A at 480 VAC and 0.5 A at 250 VDC. It features a flange mount, robust zinc die-cast housing, and NEMA 1, 3, and 4/IP66 protection for dependable performance in harsh industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Switches |
| Part Number | BZV6-RNX1 |
| Subcategory | Limit Switches |
| Switch Type | Mechanical limit switch |
| Contact Configuration | SPDT (Single Pole Double Throw) |
| Contact Form | N.O. / N.C. |
| Actuator Type | Top plunger |
| Actuator Style | Pin plunger |
| Operating Force | 1.67 N to 5.56 N |
| Mounting Type | Flange mount |
| Termination Style | Screw terminals |
| Electrical Rating (AC) | 15 A at 480 VAC |
| Electrical Rating (DC) | 0.5 A at 250 VDC |
| NEMA Rating | 1, 3, 4 |
| IP Rating | IP66 |
| Contact Material | Silver alloy contacts |
| Actuation | Momentary or maintained contact |
| Mechanical Life | 10 million operations (typical) |
| Electrical Life | 500,000 operations (at rated load) |
| Housing Material | Zinc die-cast |
| Temperature Range | -32°C to +71°C (-25°F to +160°F) |
| Certifications | UL Recognized (E12252), CSA Certified (LR41372) |
| Grounding | Equipped with grounding screw |
| Mounting Position | Any position |
| Typical Applications | Machinery safety, conveyors, cranes, packaging, and textile equipment |
| Weight | 0.44 lbs (approx. 0.2 kg) |
Information About BZV6-RNX1
The BZV6-RNX1 is part of Honeywell’s rugged industrial limit switch series, engineered for precision control and safety in mechanical systems. Designed with a plunger actuator and SPDT contacts, it allows reliable open or closed circuit control under demanding industrial conditions. Its flange-mount configuration simplifies installation on equipment frames or panels. Constructed from durable zinc die-cast material, the switch withstands vibration, moisture, and dust ingress, conforming to NEMA 1, 3, and 4/IP66 protection standards. Commonly used in material handling, manufacturing, and construction machinery, the BZV6-RNX1 ensures accurate limit detection, positioning, and motion interlocking.
Key Features:
- SPDT Contact Configuration: Provides both normally open and normally closed contacts for flexible circuit integration.
- High Electrical Ratings: Supports up to 15 A at 480 VAC or 0.5 A at 250 VDC for a wide range of industrial control applications.
- Durable Actuator Design: Features a top plunger with linear motion, offering precise and repeatable actuation.
- Rugged Construction: Zinc die-cast housing ensures long-lasting durability in mechanical and environmental stress conditions.
- Comprehensive Protection: NEMA 1, 3, 4 and IP66 ratings provide excellent resistance to dust, water, and industrial contaminants.
- Versatile Mounting: Flange-mount configuration allows easy installation in multiple positions on industrial machinery.
- Wide Temperature Range: Operates reliably from -32°C to +71°C, suitable for indoor and outdoor applications.
- Safety Compliance: UL and CSA certifications ensure adherence to global safety and performance standards.
- Grounding Capability: Equipped with grounding screw for enhanced safety in electrical installations.
- Proven Reliability: Designed for millions of mechanical operations, providing dependable long-term service in automation and control systems.
The BZV6-RNX1 delivers the reliability and precision required for machine safety, limit sensing, and motion control in industrial automation.
